Removal and Installation

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove seat back finisher. Seat Back

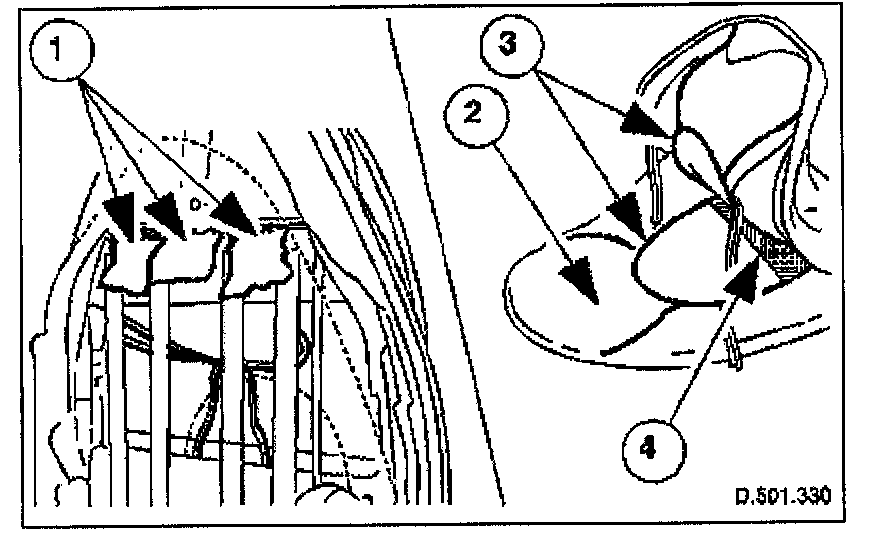

3. Remove the nine clips securing the squab cover to the seat frame.

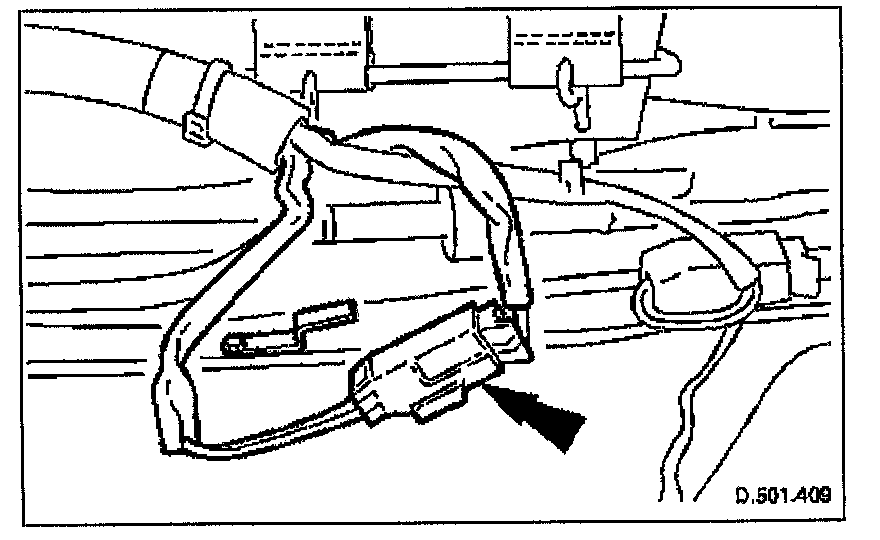

4. Remove the squab heater element harness from the mounting undo the velcro strap and disconnect the multiplug.







5. Remove squab from seat.
Release strap securing squab foam to frame.
Remove squab foam and cover from seat and remove from vehicle.

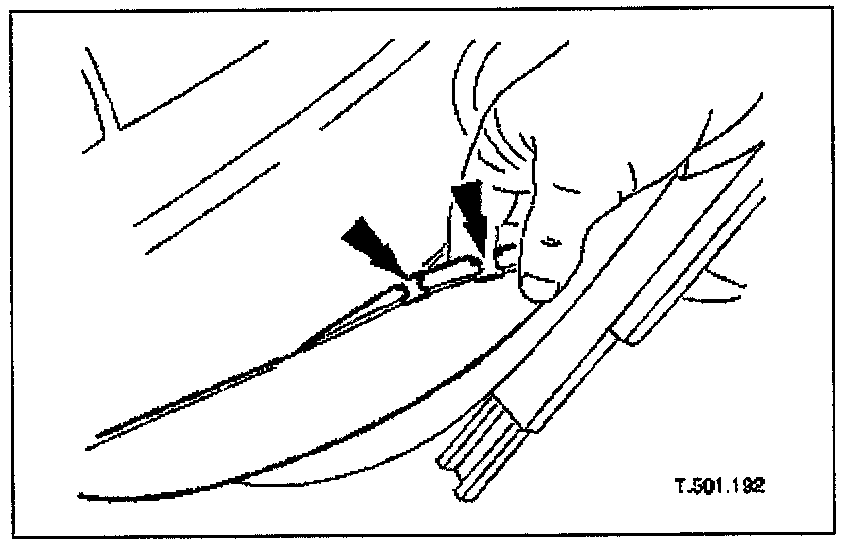

Undo velcro fasteners and tapes and carefully withdraw foam cushion from the squab cover.
If squab foam is to be renewed, carefully remove heater element.

Installation
1. If squab cushion has been renewed, apply suitable adhesive to foam and fit and fully seat heating element.
2. Carefully insert and position foam cushion in squab cover and secure with velcro fasteners.
3. Fasten strap securing squab foam to seat frame.
4. Connect seat harness multiplug, position in mounting and secure with velcro fastener.
5. Position squab to seat frame and secure with the nine clips.
6. Fit seat back finisher. Seat Back
7. Connect earth cable to battery terminal and fit battery cover.
