Recline Motor/Potentiometer

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove front seat back finisher. Service and Repair

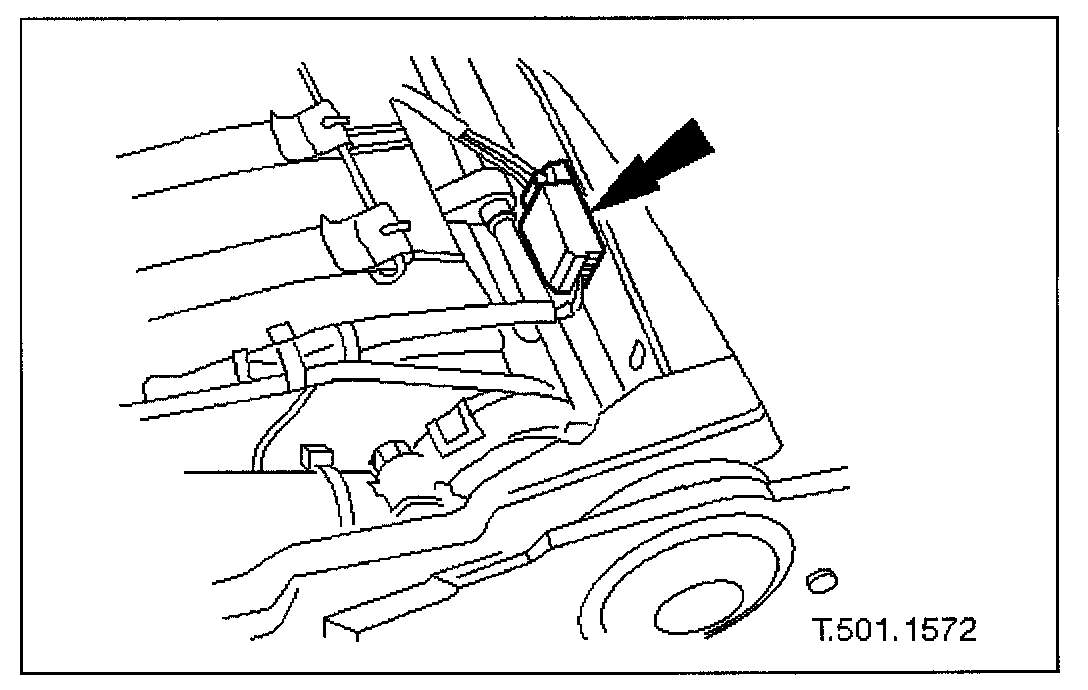

3. Detach motor harness multiplug from mounting.

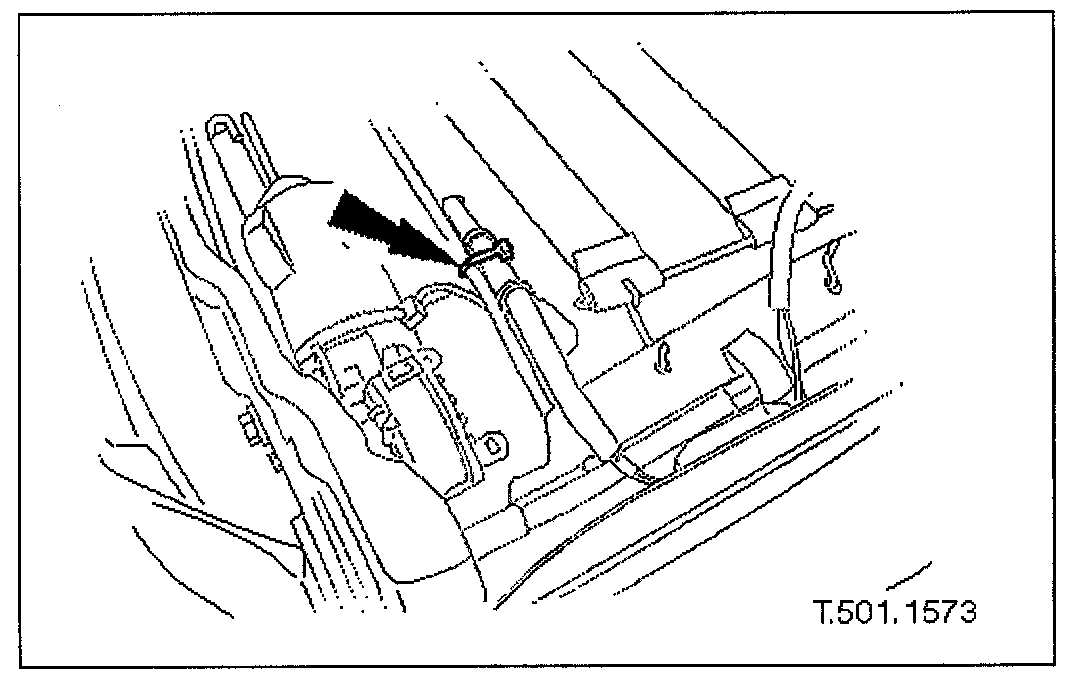

4. Disconnect harness multiplug from motor and sever and remove tiestrap securing harness to seat frame.

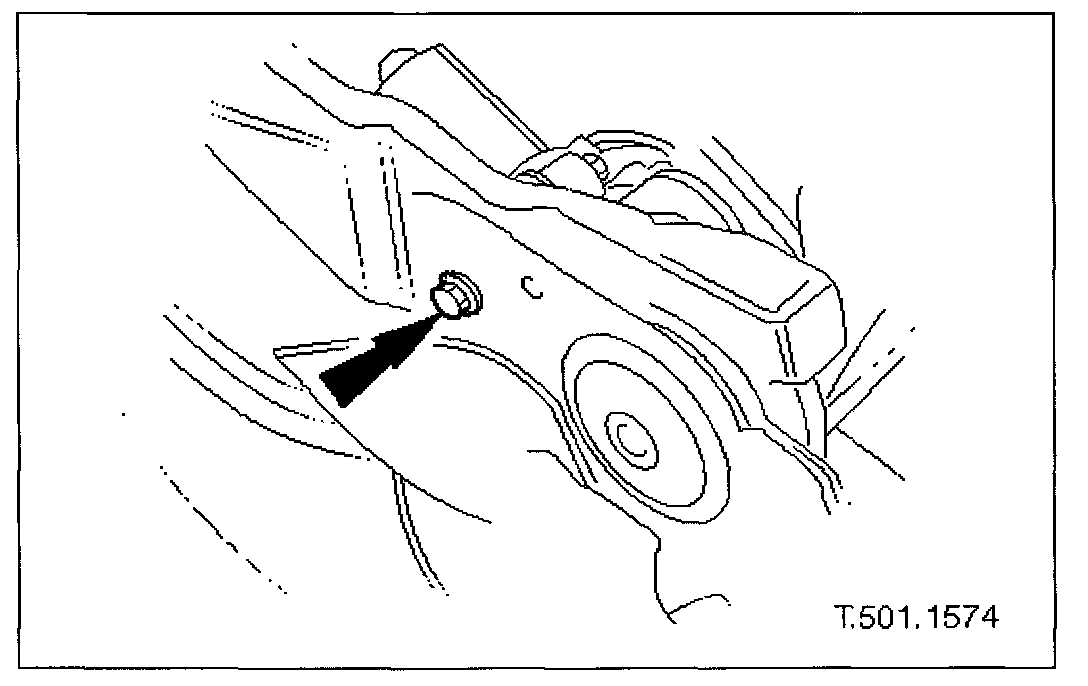

5. Remove bolt securing motor mounting bracket to seat frame.

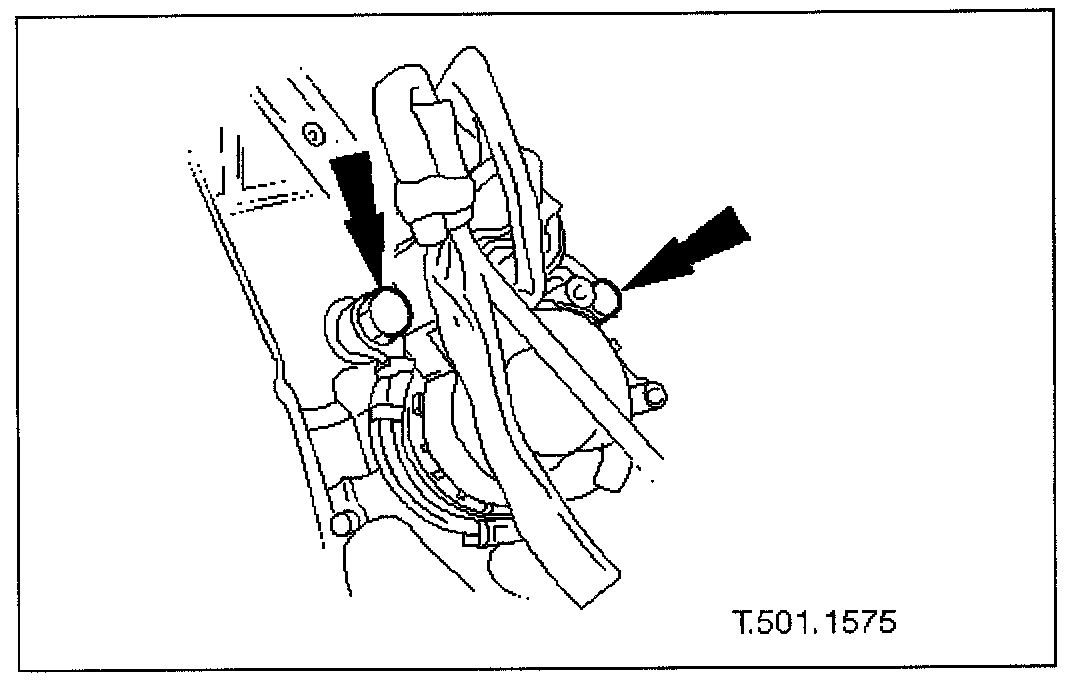

6. Position motor and mounting bracket for access and remove the two motor to bracket securing bolts.


Installation
1. Position motor on mounting bracket and install securing bolts.
2. Position motor and bracket assembly on seat frame and install securing bolt.
3. Using new tiestrap, secure motor harness to seat frame.
4. Connect harness multiplug to motor and install seat multiplug on mounting.
5. Install seat back finisher.
6. Connect ground cable to battery terminal and install battery cover. Refer to Battery Reconnection Procedure. Service and Repair
