Lumbar Support Motor

Removal
1. Remove battery cover and disconnect ground cable from battery terminal.

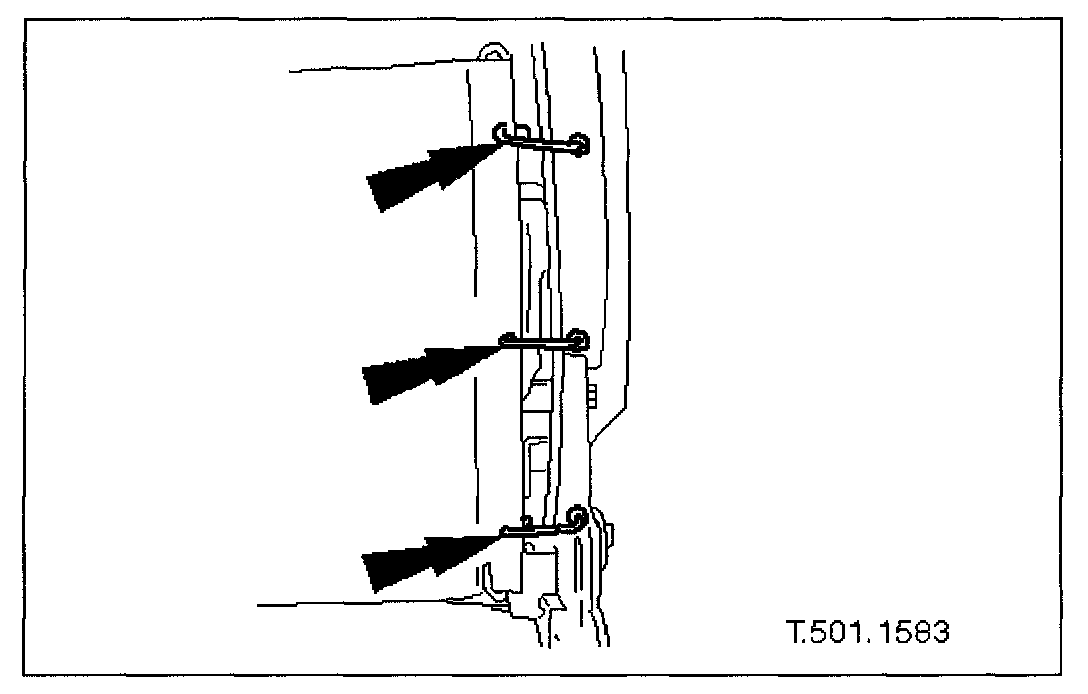

2. Remove front seat back finisher.

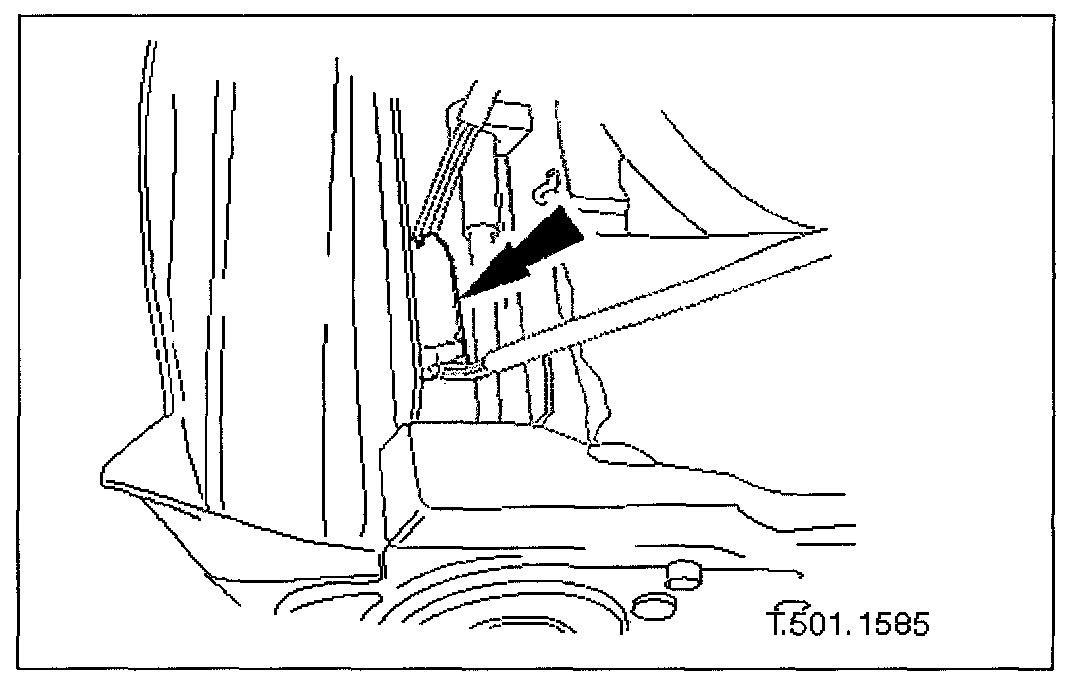

3. Undo adjacent strap securing squab cushion to seat frame.





4. Position squab for access and release six hooks securing inflatable cushion to seat frame.

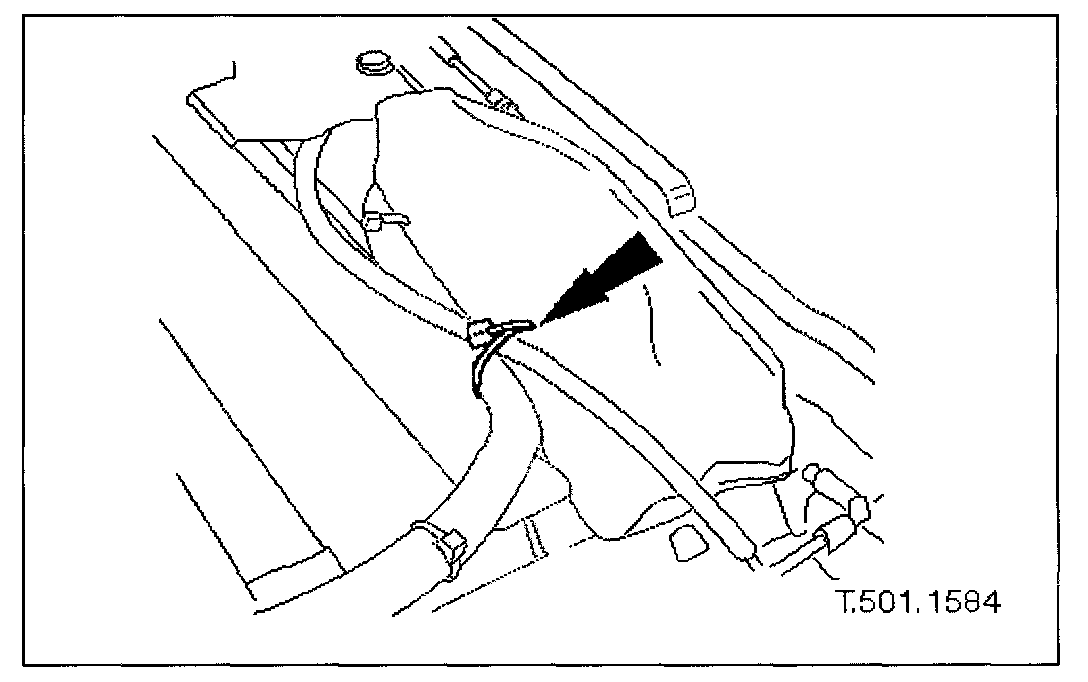

5. Sever and remove tiestraps securing lumbar motor/bag assembly and harness to seat frame.





6. Disconnect multiplug from lumbar support motor harness.
7. Remove lumbar support motor/bag assembly from seat.

Installation
1. Install lumbar support motor/bag assembly in seat frame.
2. Hook inflatable cushion onto seat frame.
3. Connect harness multiplug to lumbar support motor.
4. Using a new tiestrap, secure lumbar support motor/bag assembly to seat frame.
5. Position seat squab on seat frame and secure with retaining strap.
6. Install seat back finisher.
7. Connect ground cable to battery terminal and install battery cover.
