Driver Seat Cushion Riser Motor

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove driver seat for access. Service and Repair

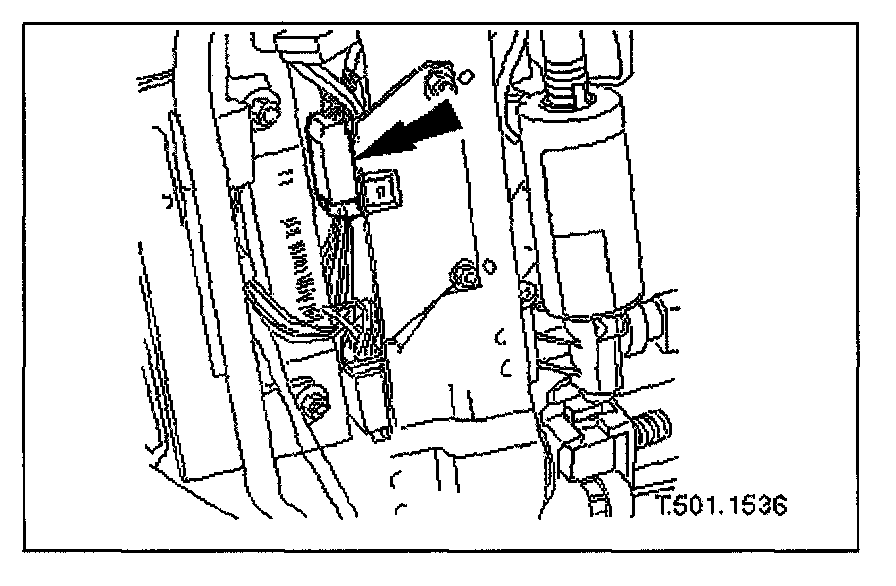

3. Release seat cushion riser harness multiplug from mounting bracket clip and disconnect multiplug.

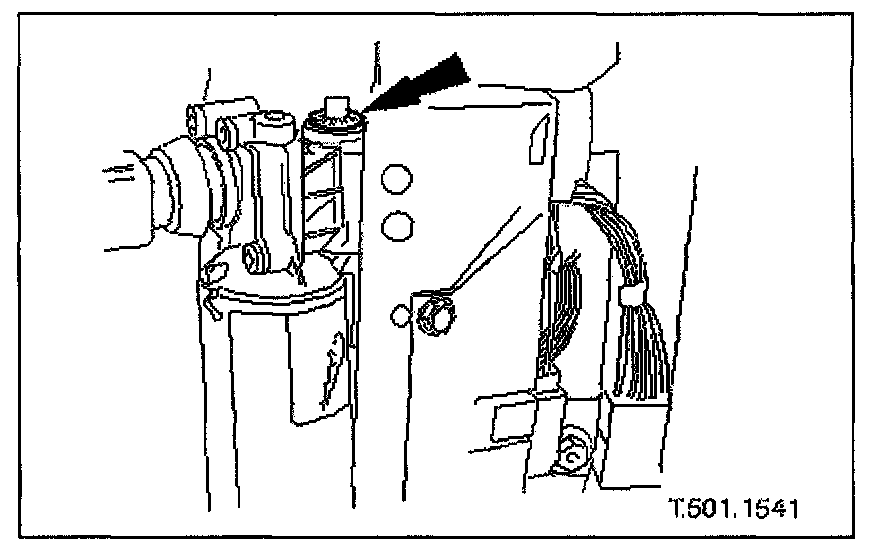

4. Remove and discard star securing clip from seat riser motor clevis pin.

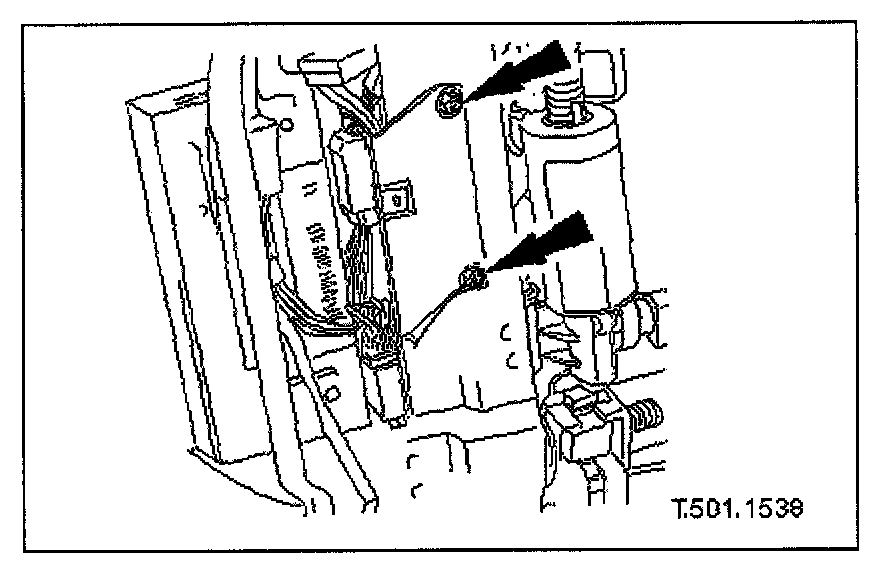

5. Slacken but do not remove the two driver seat fore and aft adjustment motor securing bolts.

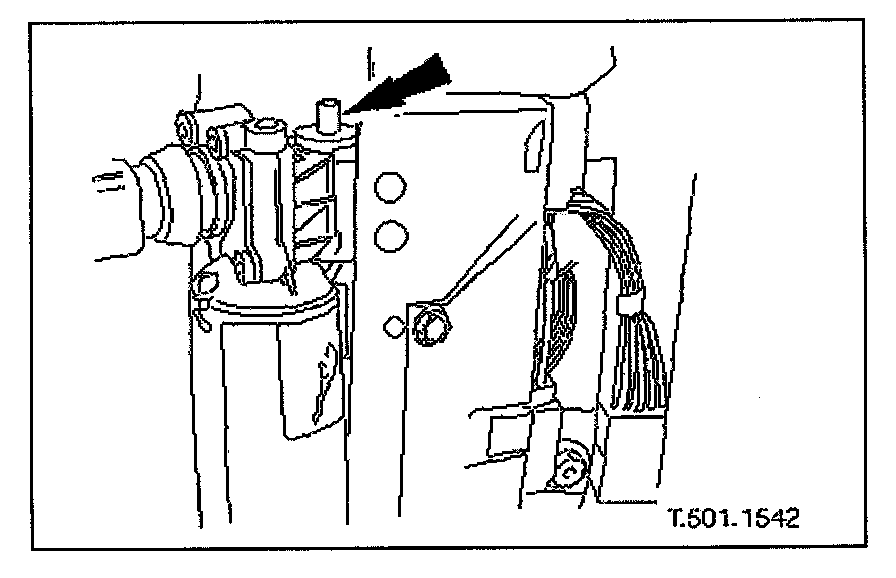

6. Withdraw seat riser motor clevis pin from upper mounting bracket.

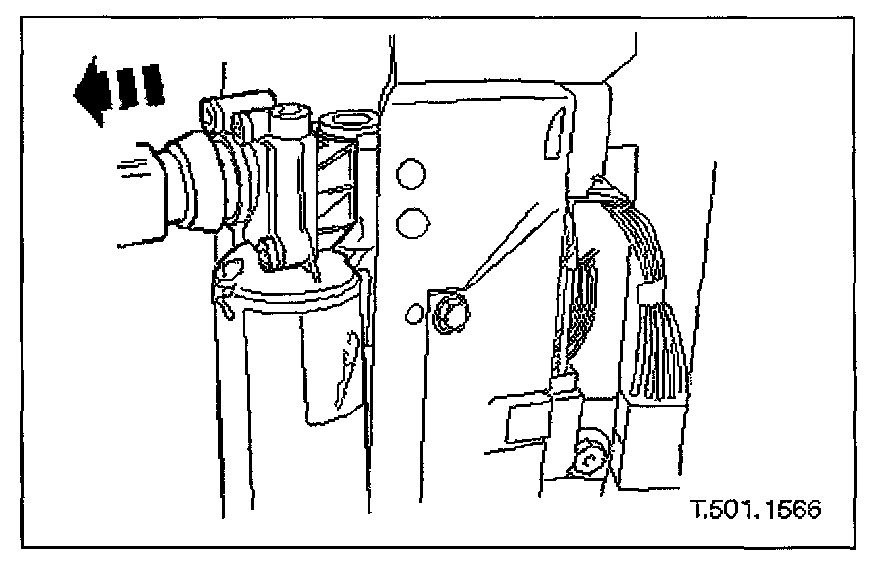

7. Press seat riser motor out of upper mounting bracket.

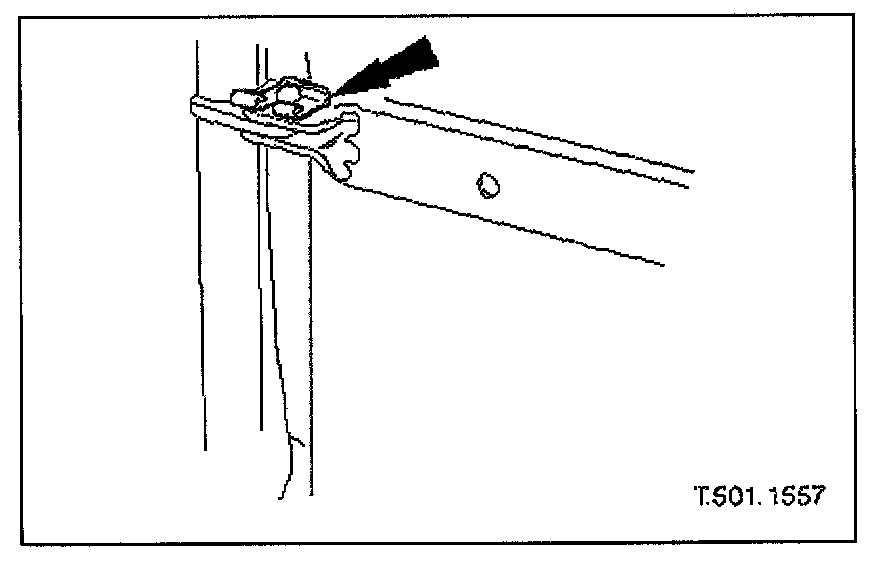

8. Remove spring clip from runner to pivot bar clevis pin and withdraw pin.

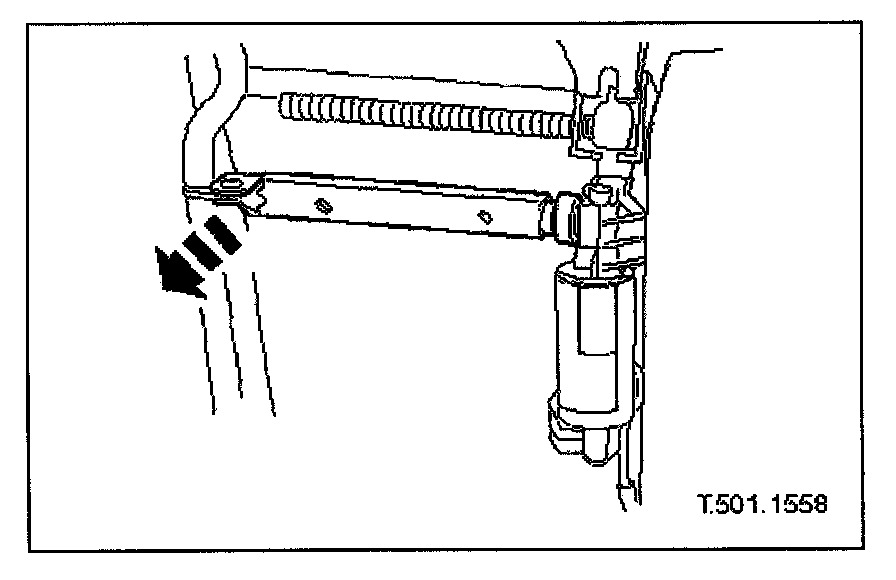

9. Remove motor/runner assembly from pivot bar.


Installation
1. Position motor on seat upper mounting bracket.

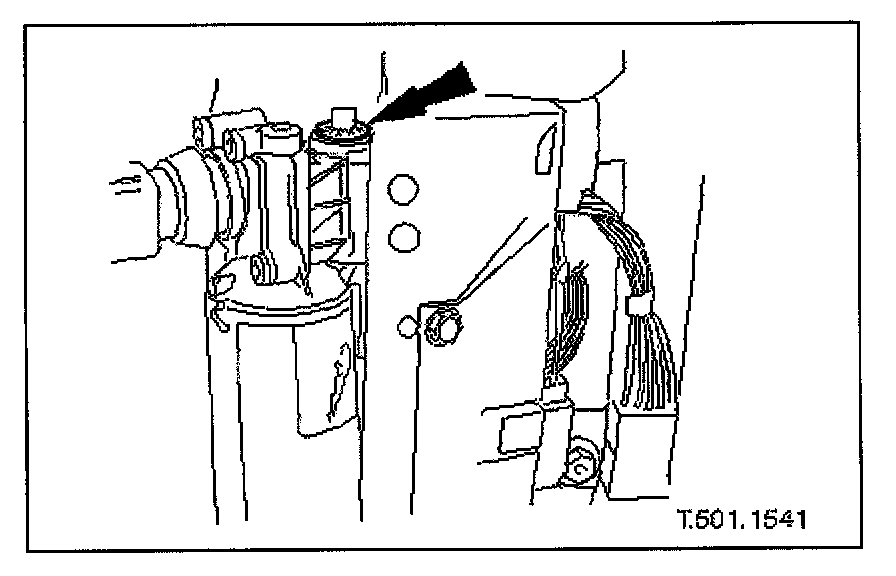

2. Fit and fully seat clevis pin and fit new star securing clip.





3. Position motor runner on pivot bar and check position of clevis pin aperture.

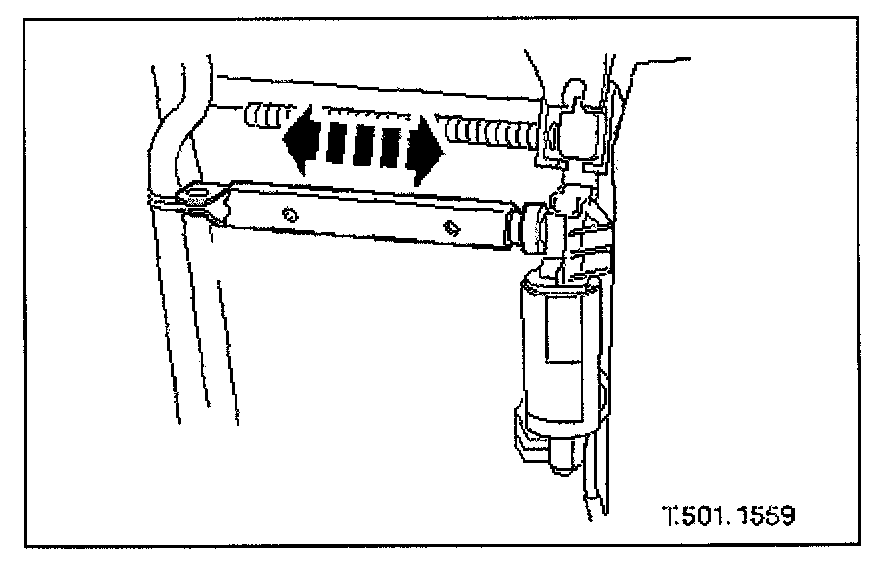

4. Remove motor runner from pivot bar, adjust runner to required length and re-fit to pivot bar.





5. Fit motor to pivot bar clevis pin and fit and fully seat securing clip.

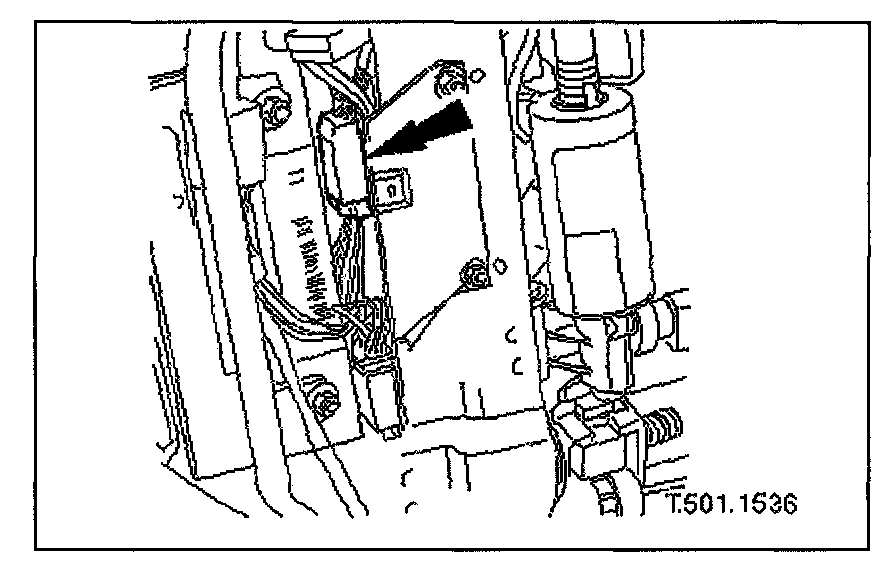

6. Connect seat riser motor harness multiplug and fit multiplug onto mounting bracket securing clip.

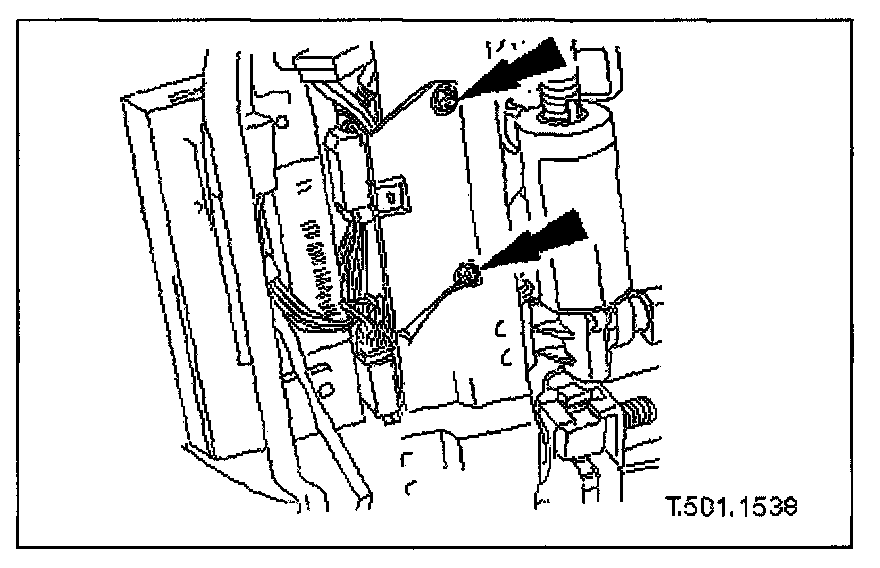

7. Fully tighten seat fore and aft adjustment motor securing bolts.
8. Fit seat to vehicle.
9. Connect ground cable to battery terminal and fit battery cover. Refer to Battery Reconnection Procedure. Service and Repair
