Passenger Seat Control Module

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

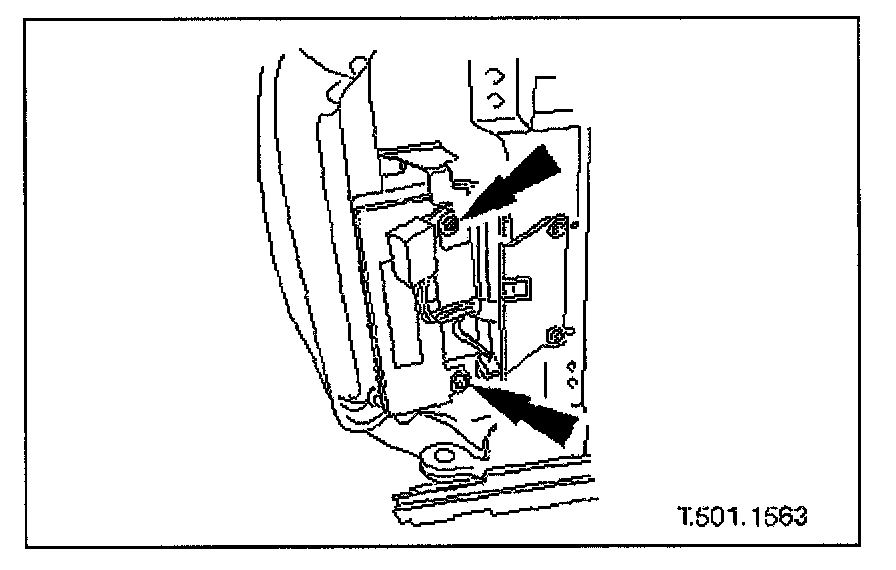

2. Slacken and remove passenger seat control module securing nuts.

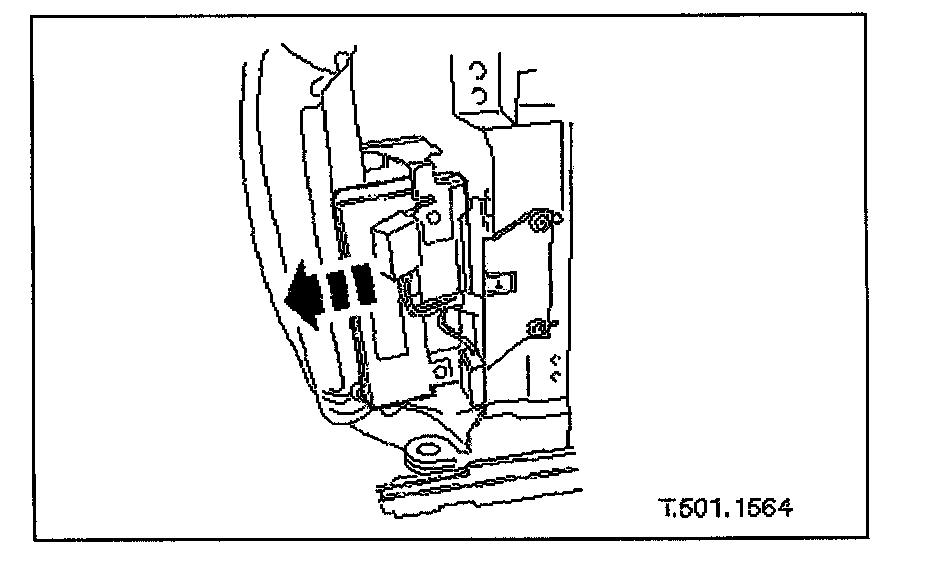

3. Release control module studs from mounting brackets.

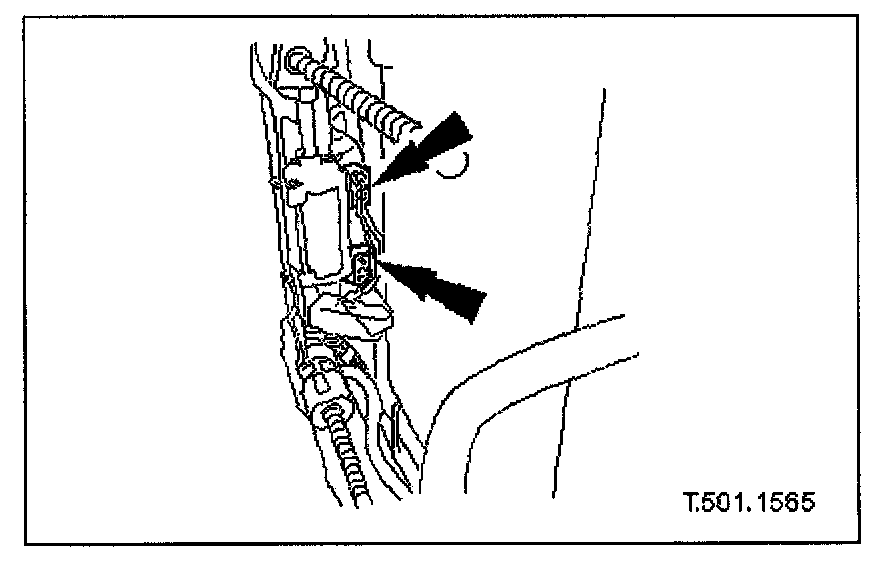

4. Disconnect control module harness multiplugs and withdraw module from seat.


Installation
1. Position control module in seat and connect harness multiplugs.
2. Locate studs in apertures and fully seat module in mounting brackets.
3. Fit and tighten module securing nuts.
4. Connect ground cable to battery terminal and fit battery cover. Refer to Battery Reconnection Procedure. Service and Repair
