Frame Seal - Rear

Removal
1. Partially lower convertible top.

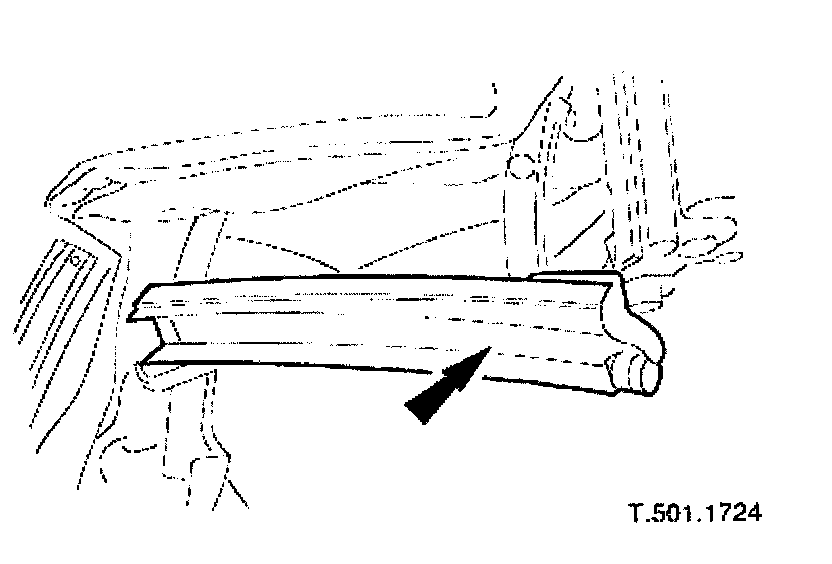

2. Remove seal from carrier.







3. Clean carrier seal locating channel and apply a thin film of Johnson KY Jelly or equivalent.

Installation

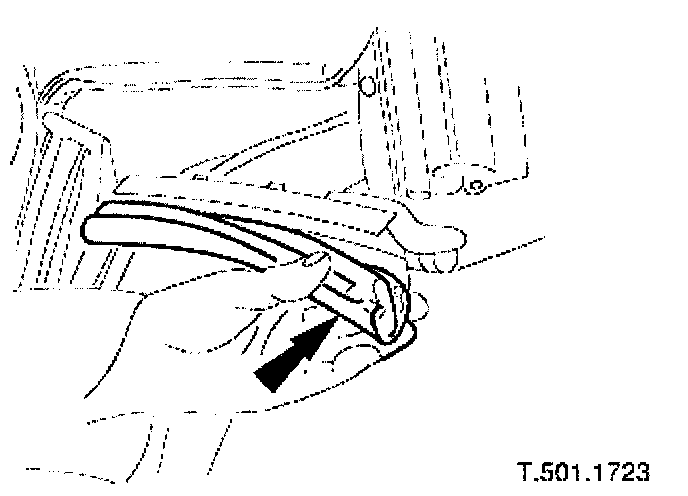

1. Install seal in carrier channel ensuring it is fully seated.
2. Fully raise convertible top and align seal to abut adjacent seals.
