Frame Seal - Front

Removal
1. Partially lower convertible top.

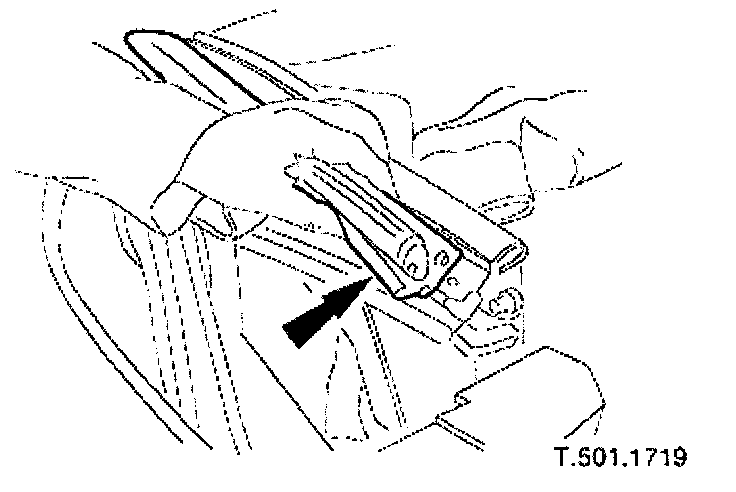

2. Remove two screws securing front of seal to header rail.

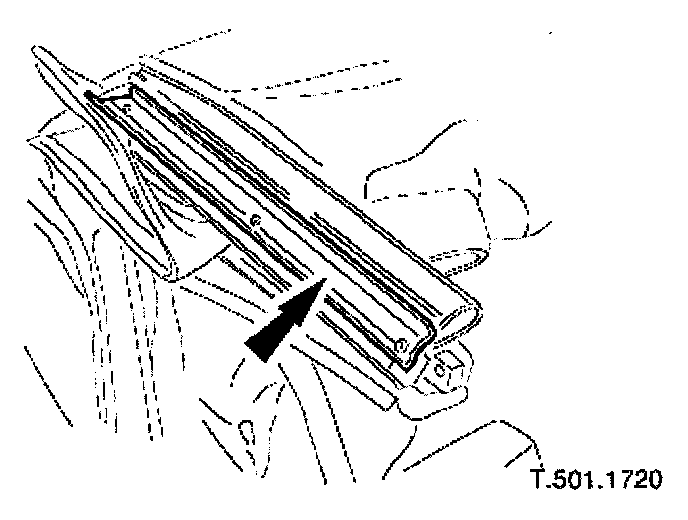

3. Remove seal from carrier.








4. Clean carrier seal locating channel and apply a thin film of Johnson KY Jelly or equivalent.

Installation
1. Install seal in carrier channel ensuring it is fully seated.
2. Install two screws securing front of seal to header rail
3. Fully raise convertible top and align seal to abut frame rear seal.
