Installation

Installation







1. Position hydraulic cylinder vertically in latch assembly slots and lower to engage lugs.







2. Retain hydraulic cylinder in latch assembly.
Move locking lever across to secure actuator.

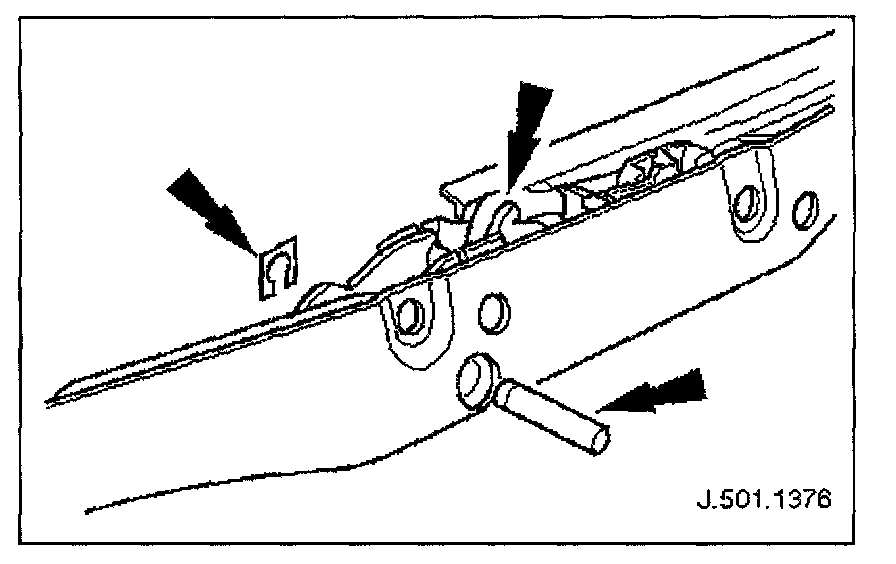

Fit and fully seat clevis pin.
Fit retaining clip to clevis pin.
3. Using new tie strap, secure hydraulic hoses to latch assembly.







4. Ensuring that hydraulic hoses are not trapped, position open-ended slots in rear face of latch assembly under the undisturbed rear screws.

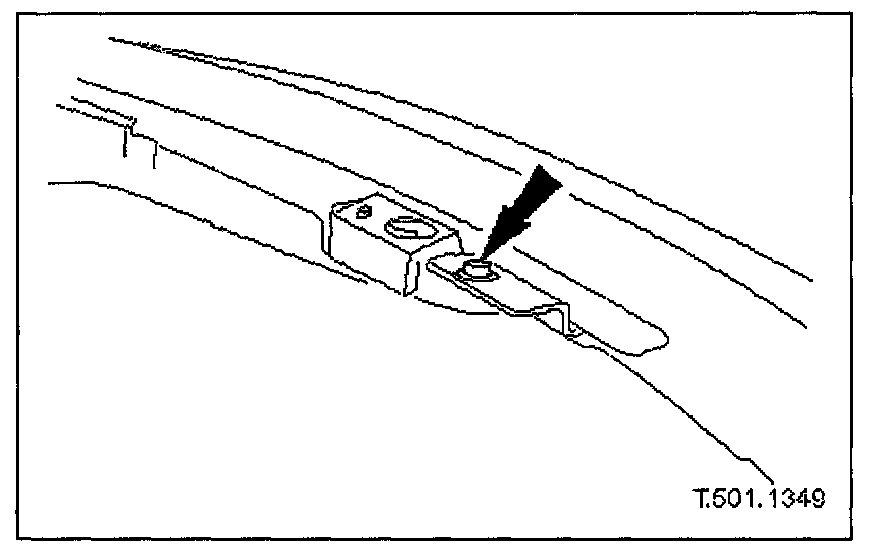

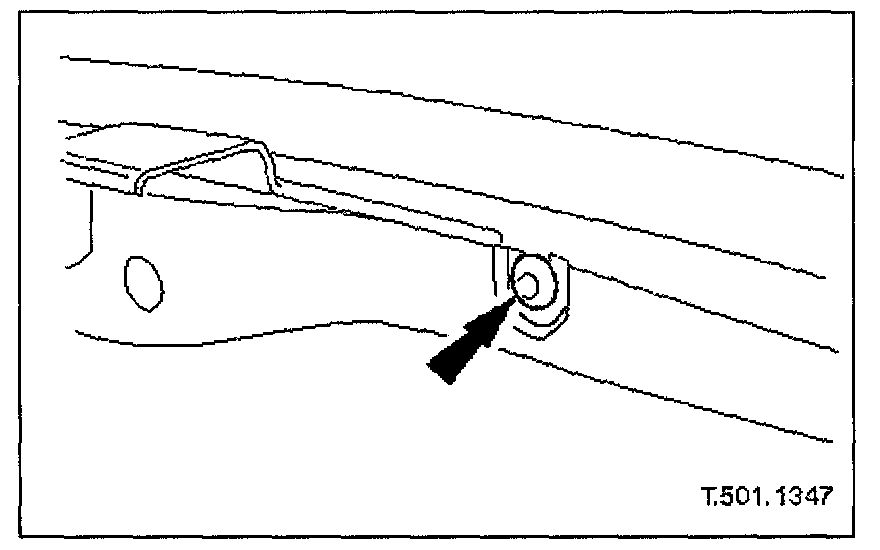

5. Supporting the latch assembly, fit but do not tighten the two top securing screws.
6. Fit but do not tighten the remaining securing screws.
7. Tighten the two top securing screws.
8. Tighten all remaining securing screws.
9. Install sunvisor harness multiplugs on latch assembly bracket retainers.
10. Connect latch assembly harness multiplug.
11. Fit and fully seat hydraulic hose retaining clips on upper 'A' post
12. Fit latch assembly cover panel.
13. Position trim finisher on header rail and secure with new fir tree fastener, exercising care to avoid damaging finisher.
14. Fit upper 'A' post trim finisher.
15. Fit sun visors and retention bezels.
16. Where applicable, connect microphone harness multiplug.
17. Fit roof console.
18. Perform the Battery Reconnection Procedure Service and Repair and fit battery cover.
19. Check hydraulic system for satisfactory operation and all connections for freedom from leaks.
Power top to fully raised position.
Power top to fully lowered position.
Power top to fully raised position.
