Removal

Removal
1. Power convertible top to fully lowered position.
2. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Starting and Charging, Battery.' Service and Repair
3. Remove roof console. See 'Interior Trim, Console.' Service and Repair

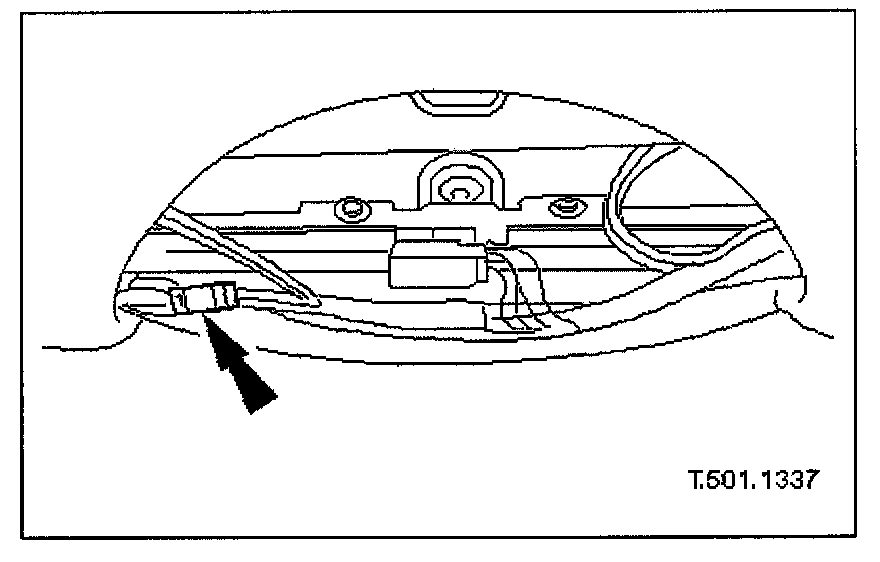

4. Where fitted, disconnect microphone harness multiplug.
5. Remove illuminated sun visors.
6. Remove illuminated sun visor retention bezels.
7. Remove 'A' post upper trim finishers.

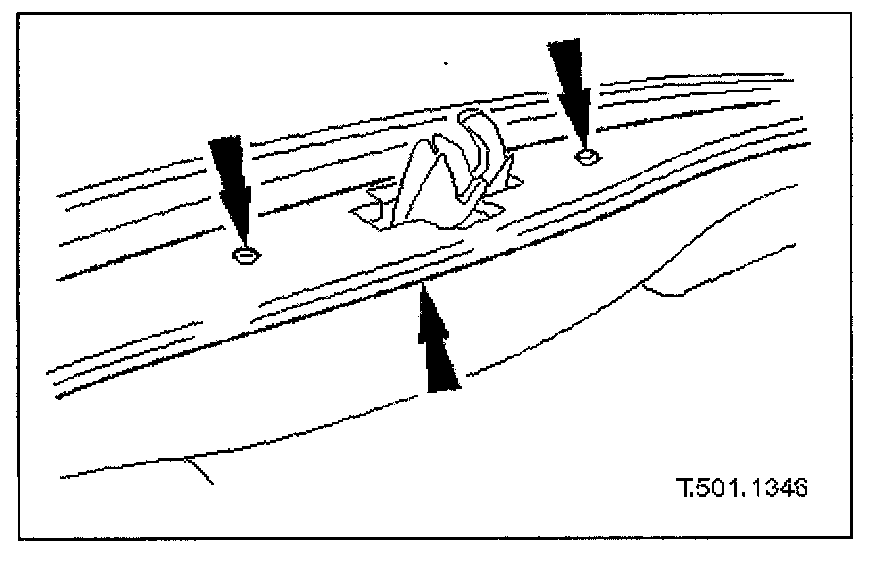

8. Carefully remove and discard fir tree fastener retaining trim finisher on header rail and remove finisher from header rail.

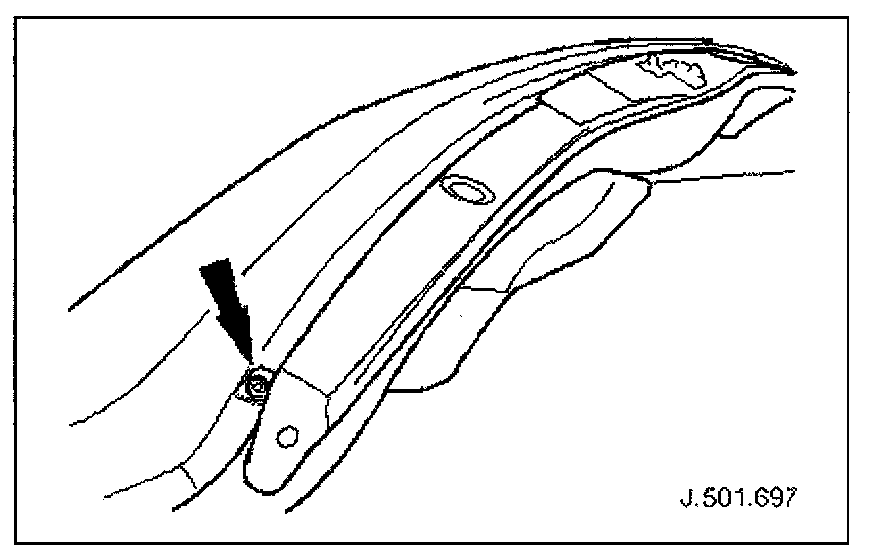

9. Carefully remove and discard retaining stud from LH end of header seal.

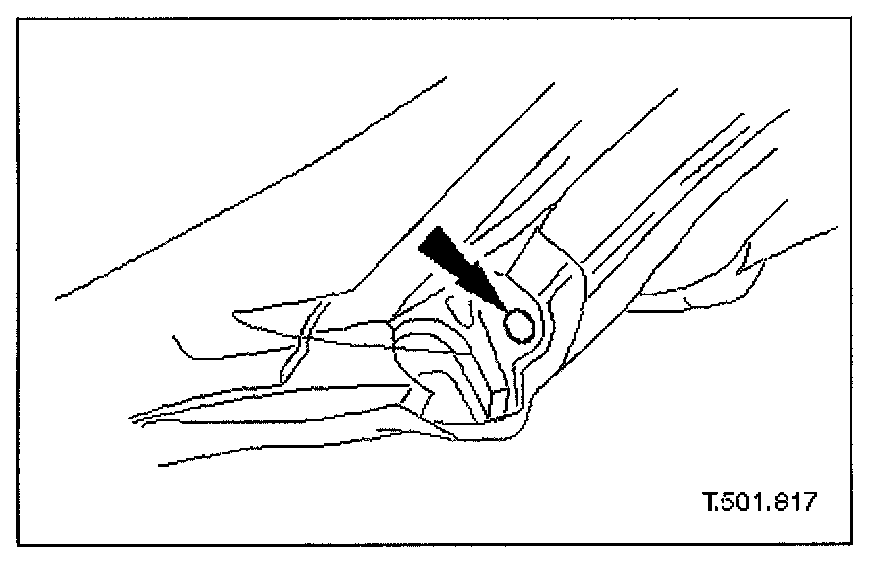

10. Lift rear edge of seal for access and slacken and remove latch cover LH securing screw.
11. Remove and discard retaining stud from RH end of header seal, lift rear edge of seal and slacken and remove latch cover RH securing screw.







12. Slacken and remove the latch cover center securing screws and remove latch cover from header rail.
