Non-Electrochromic

Removal


CAUTION:
When removing mirror from base, care must be exercised to ensure that base is not detached from windshield.

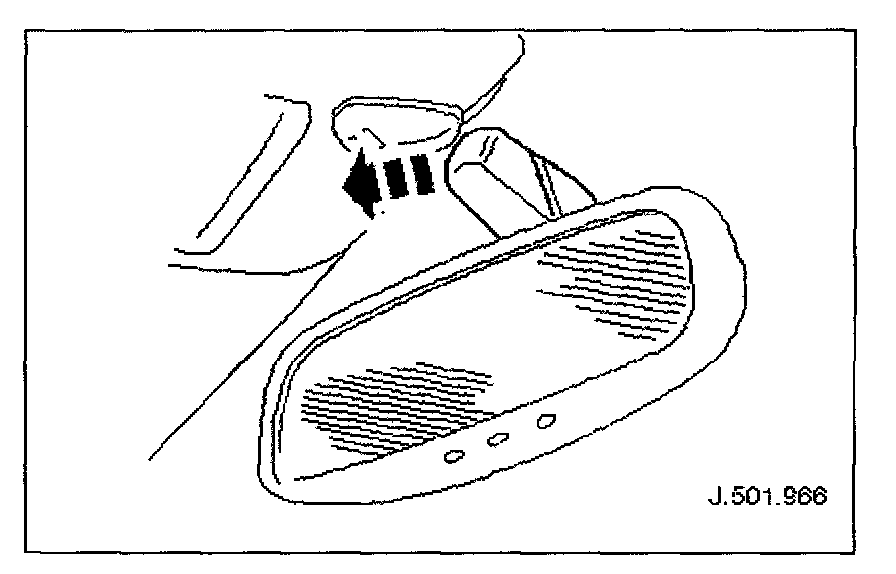

1. Remove upper cover from mirror stem.

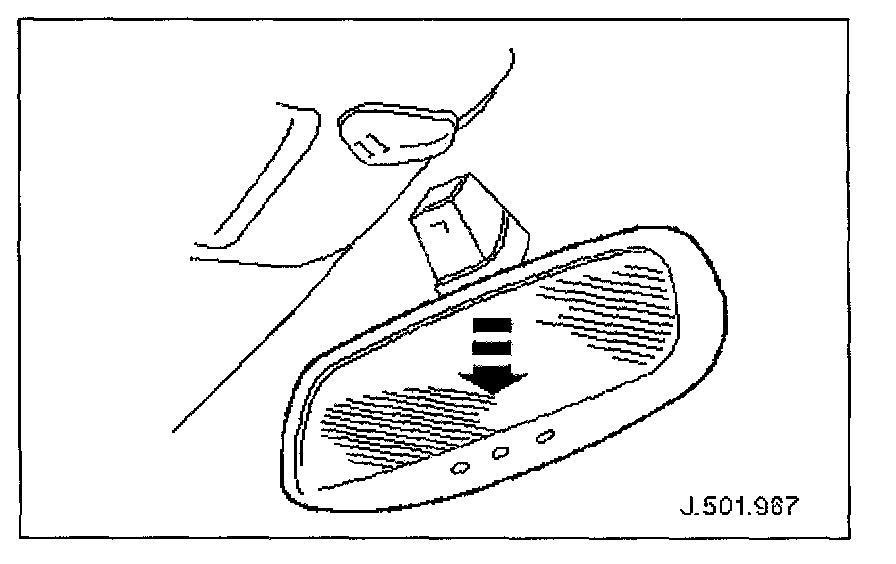

2. Applying firm downward pressure, remove mirror assembly from base.

Installation
1. Position mirror at bottom of base and apply firm upward pressure to fully seat and secure in position.
2. Fit upper cover to mirror stem.
