Rear Quarter Trim Capping - Convertible

Removal
1. Fully lower convertible top.







2. Remove seat belt upper anchor.

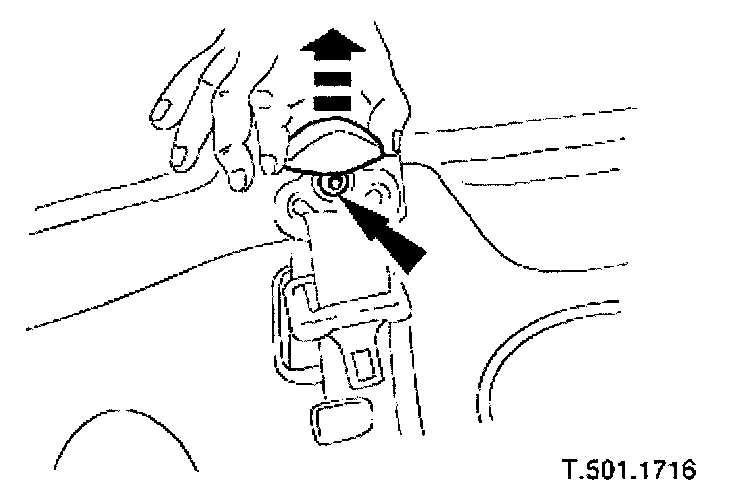

Remove seat belt upper anchor bolt cover.
Remove seat belt upper anchor bolt.
Remove seat belt anchor and spacer.

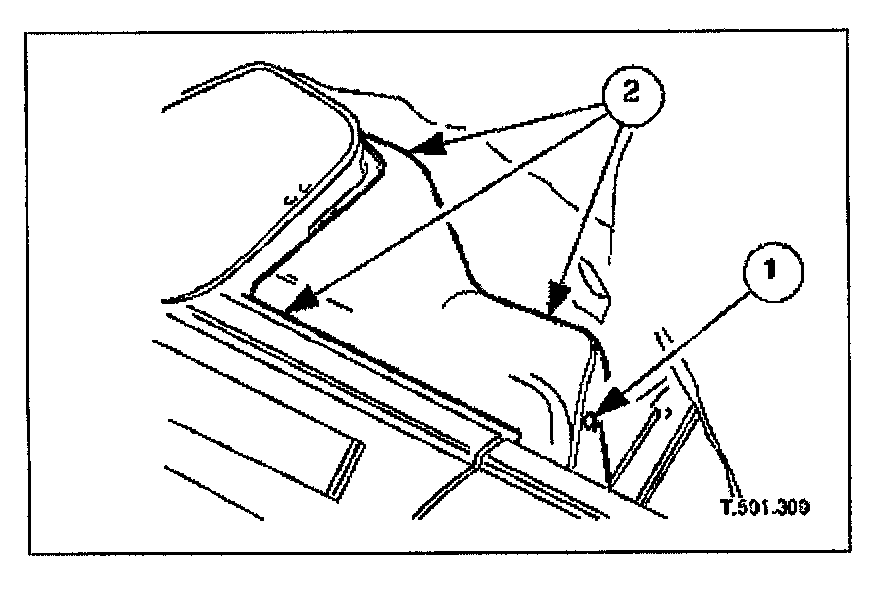

3. Remove rear quarter capping.
Remove fastener securing rear quarter capping to 'B' post extension.
Slacken and remove three screws securing the capping.
4. Lift rear quarter capping and remove from vehicle.

Installation







1. Install rear quarter capping.
Using a new fastener secure rear capping to 'B' post extension.
Install the three capping screws.
2. Install seat belt anchor spacer.
3. Position anchor on spacer.
4. Install seat belt upper anchor bolt and tighten to 34-46 Nm.
5. Install seat belt upper anchor bolt cover.
6. Raise convertible top.
