Driver Side Underscuttle

Removal
1. Remove battery cover and disconnect earth lead from terminal.
Refer to 'Battery, Battery Cable.' Negative

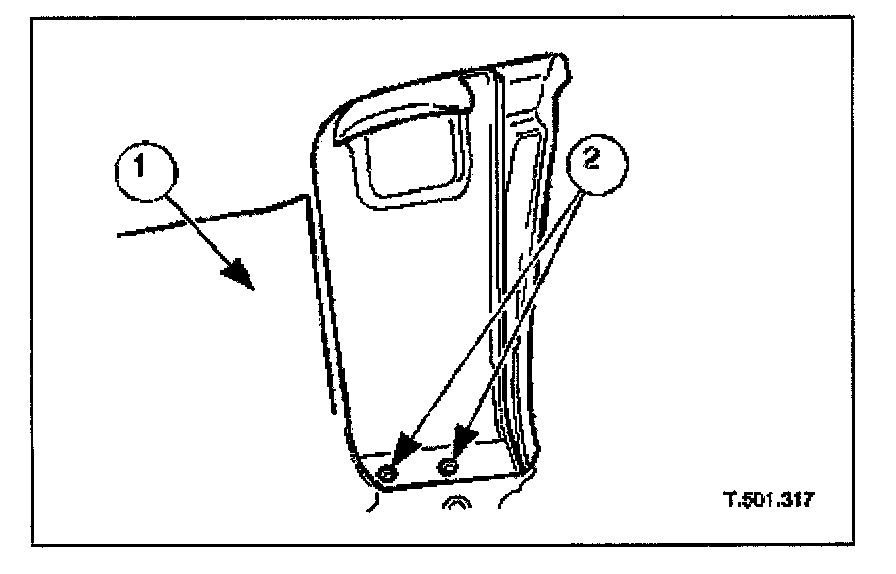

2. Slacken and remove the two screws securing the lower underscuttle to the fascia panel cross-member.

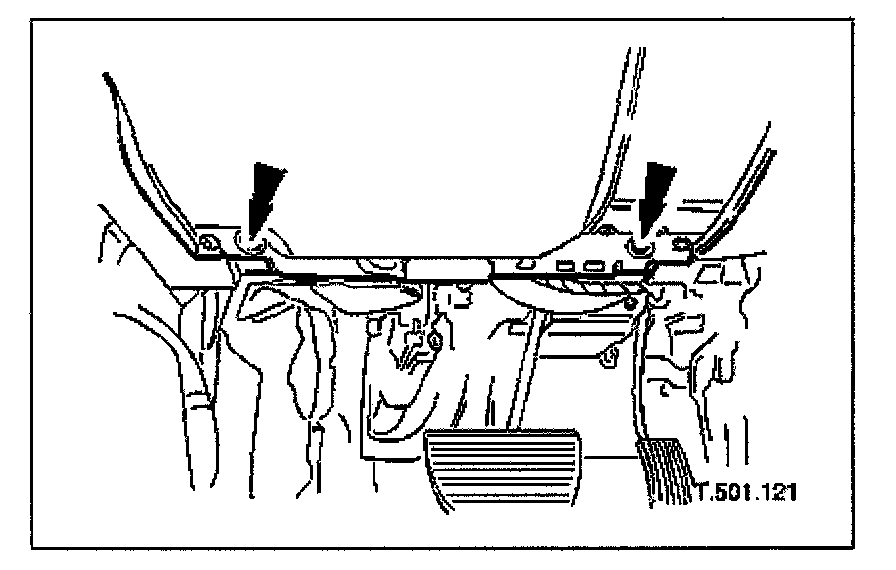

3. Withdraw the underscuttle upper fasteners from their locations in the fascia panel.

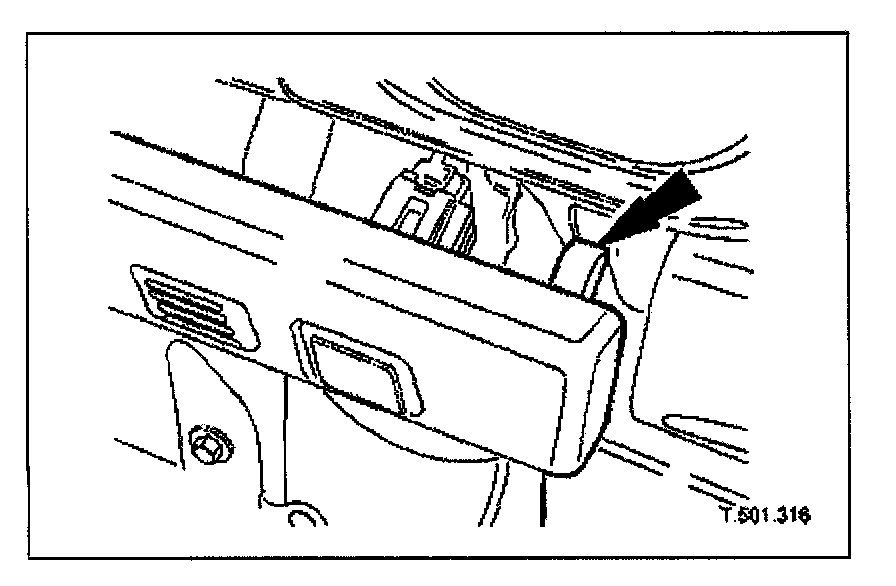

4. Position the underscuttle rearwards for access.

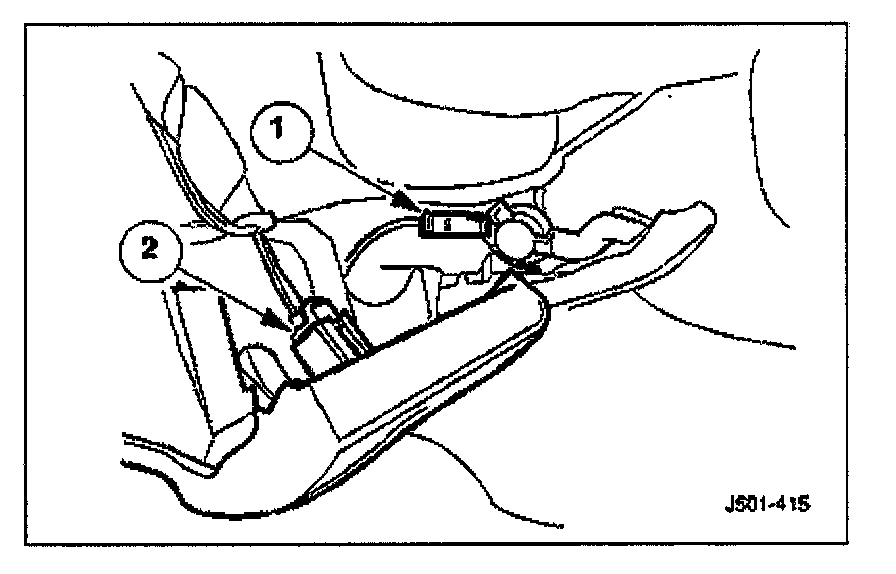

5. Disconnect harness multiplugs and reposition underscuttle.

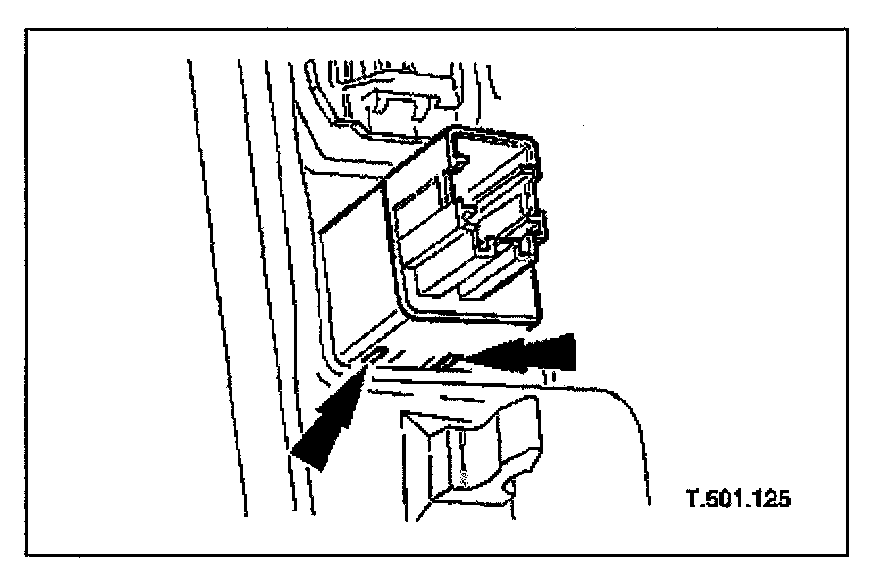

Disconnect air conditioning aspirator harness multiplug.
Disconnect valet switch harness multiplug.






6. Remove stowage compartment lid.
Position underscuttle for access.
Slacken and remove two screws securing the stowage compartment lid to the underscuttle and remove the lid.

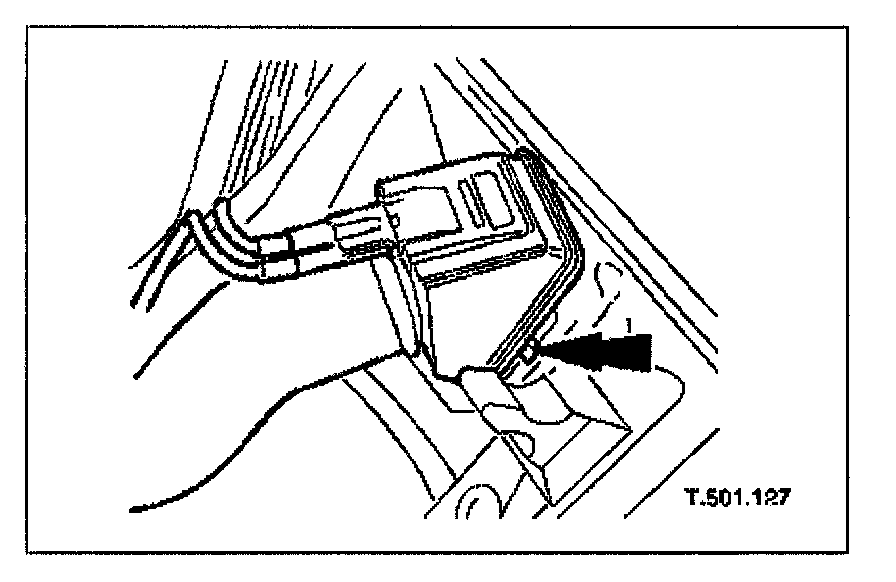

7. Release the valet switch securing tangs and remove the switch.






8. Remove air conditioning aspirator.

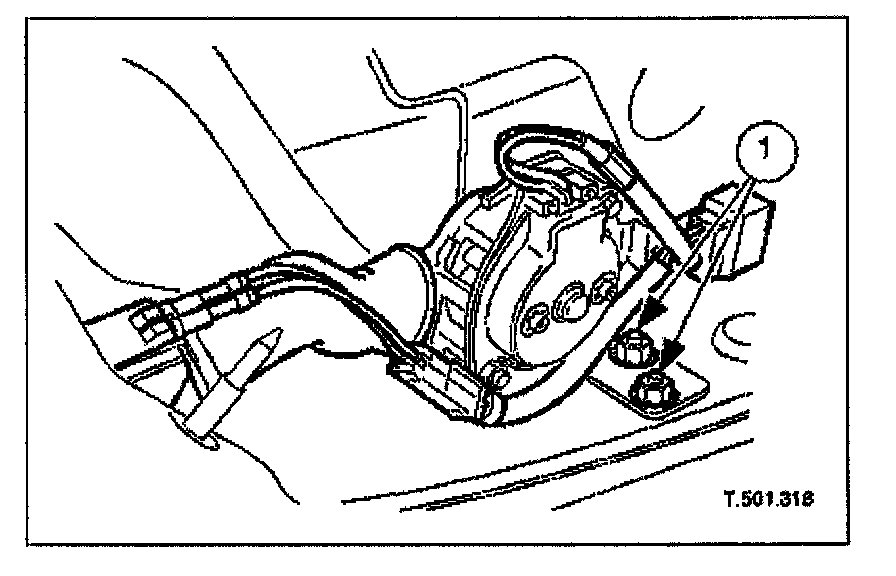

Slacken and remove the two nuts securing the air conditioning aspirator mounting bracket to the vent and remove the aspirator.






9. Release the aspirator vent securing tangs and remove the vent from the underscuttle.
10. Remove the underscuttle from the vehicle.

Installation
1. Fit components to underscuttle.
Fit and fully seat air conditioning aspirator vents to underscuttle.
Fit and fully seat aspirator mounting bracket onto vent studs and fit and tighten bracket securing nuts.
Fit stowage compartment lid and fit and tighten securing screws.
2. Fit underscuttle to vehicle.
Position underscuttle below fascia.
Connect valet switch, and air conditioning aspirator harness multiplugs.
Position underscuttle and seat upper fasteners.
Position underscuttle on lower cross-member and fit and tighten the two securing screws.
3. Connect battery earth lead and fit battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
