Door Glass Lift Switch Veneer Panel

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Battery, Battery Cable.' Negative

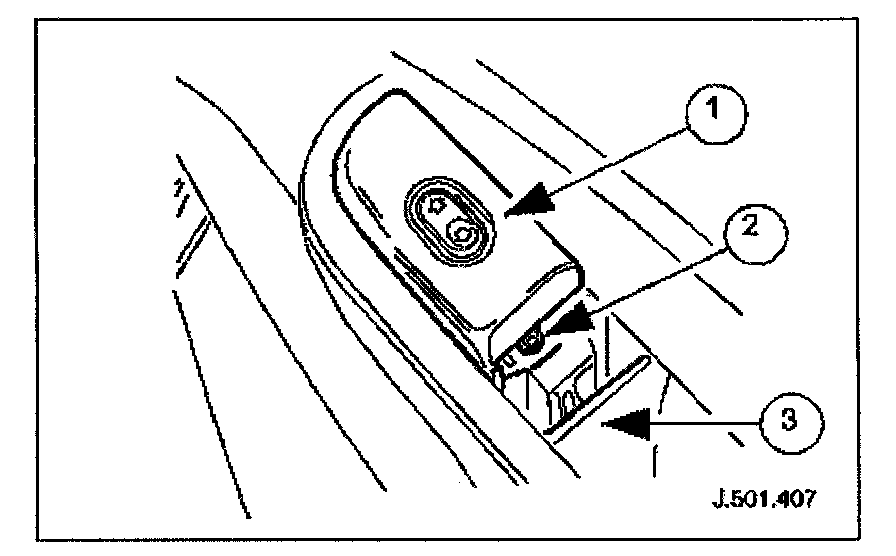

2. Remove glass lift switch.
Remove glass lift switch end cover trim pad.
Remove the switch securing screw.
3. Disconnect the switch harness multiplug.

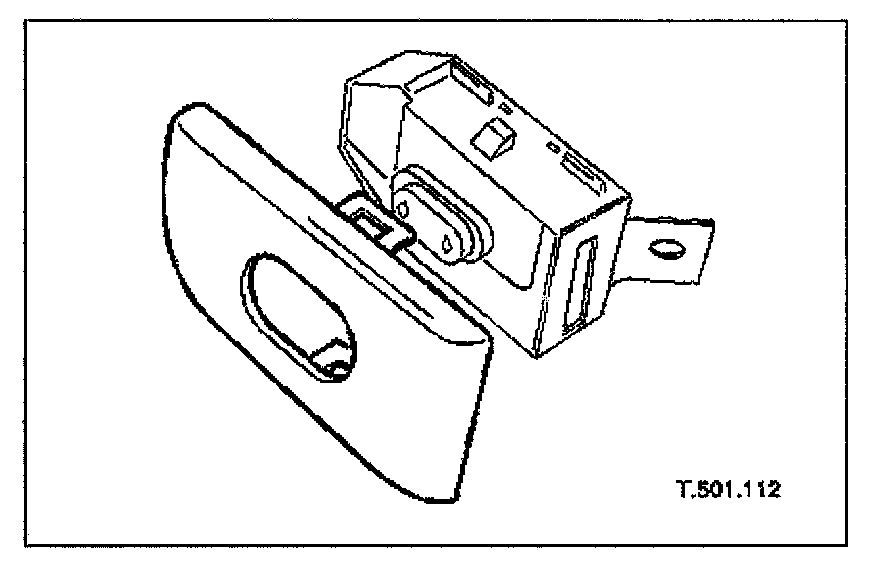

4. Release veneer panel clips.

Installation
1. Install veneer panel on switch ensuring retaining clips are fully seated.
2. Connect harness multiplug to switch.

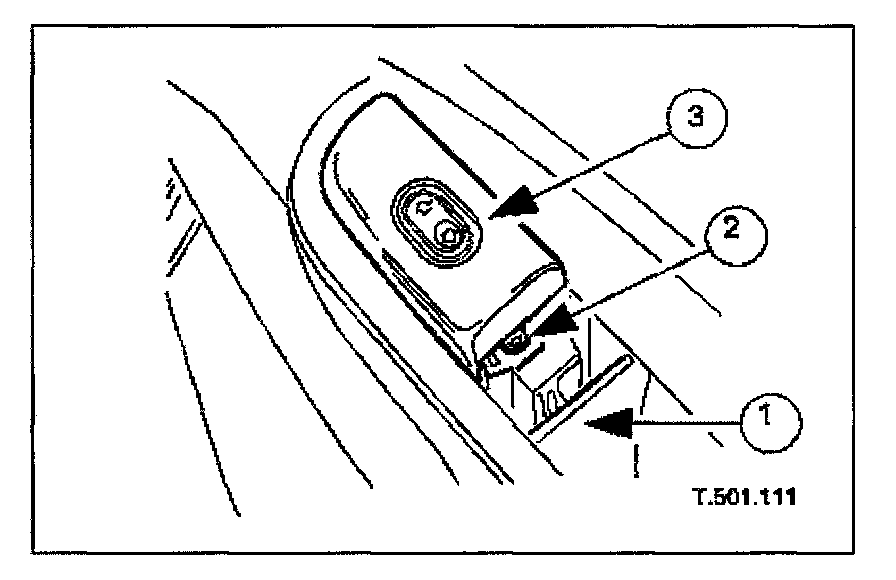

3. Install glass lift switch.
Position glass lift switch in door.
Install switch securing screw.
Install and fully seat switch end cover trim pad.
4. Connect ground cable to battery terminal and install battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
