Sun Visor Retention Bezel

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Battery, Battery Cable.' Negative

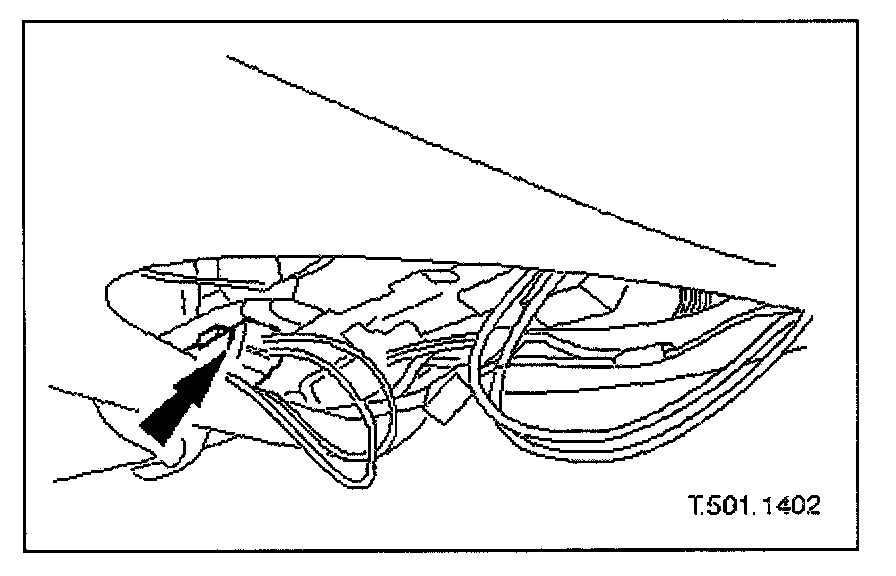

2. Lower roof console, release bezel multiplug from retaining clip and disconnect multiplug from harness.
3. Turn sun visor downwards, release from retention bezel and pivot outwards.

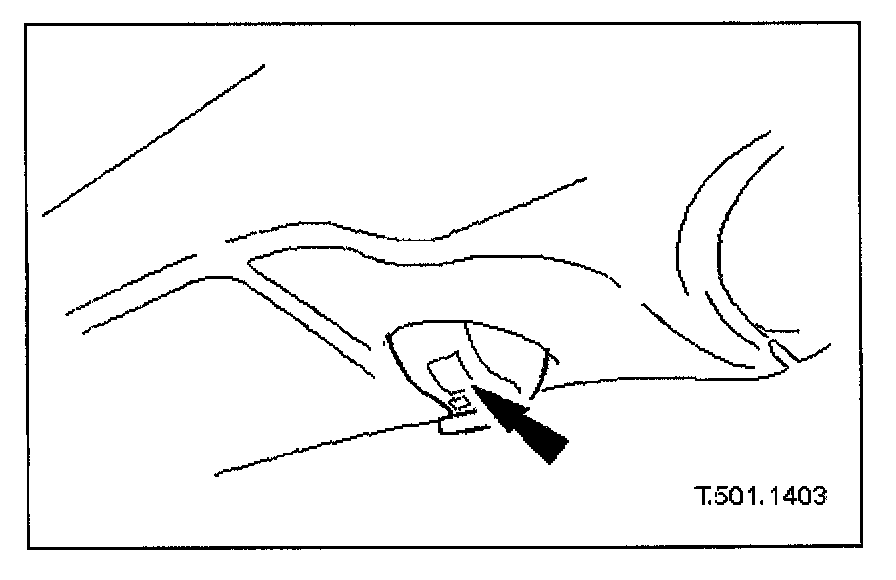

4. Carefully open flap on retention bezel cover and slacken and remove bezel retaining screw.







Installation
1. Position bezel for access and route multiplug through aperture to retaining clip.
2. Fully seat bezel and fit and tighten securing screw.
3. Close flap on securing screw cover.
4. Connect multiplug to harness and fit and fully seat multiplug on retaining clip.
5. Raise and fully seat roof console
6. Pivot sun visor inwards, locate in bezel and turn visor to upward position.
7. Connect ground cable to battery terminal and fit battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
