Sun Visor Assembly - Illuminated

Removal

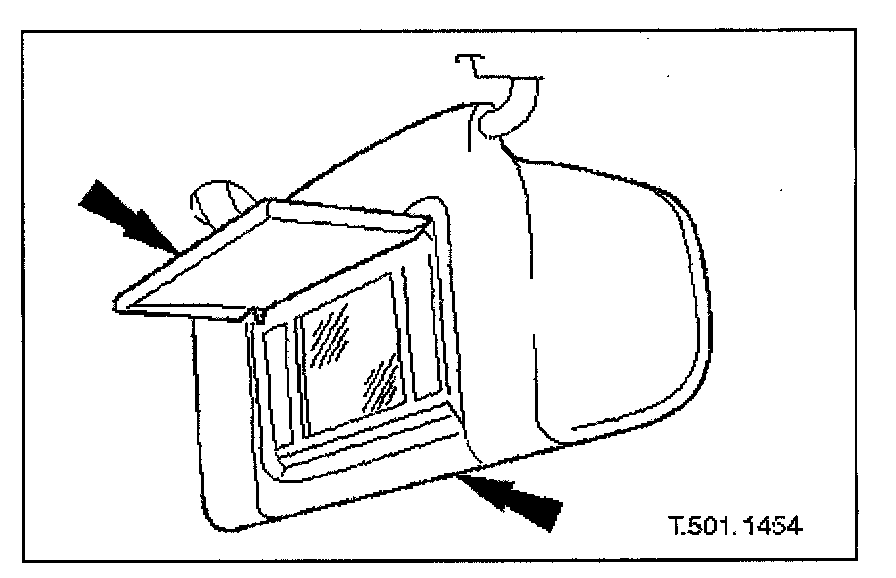

1. Move sun visor to downward position and turn mirror cover upwards.

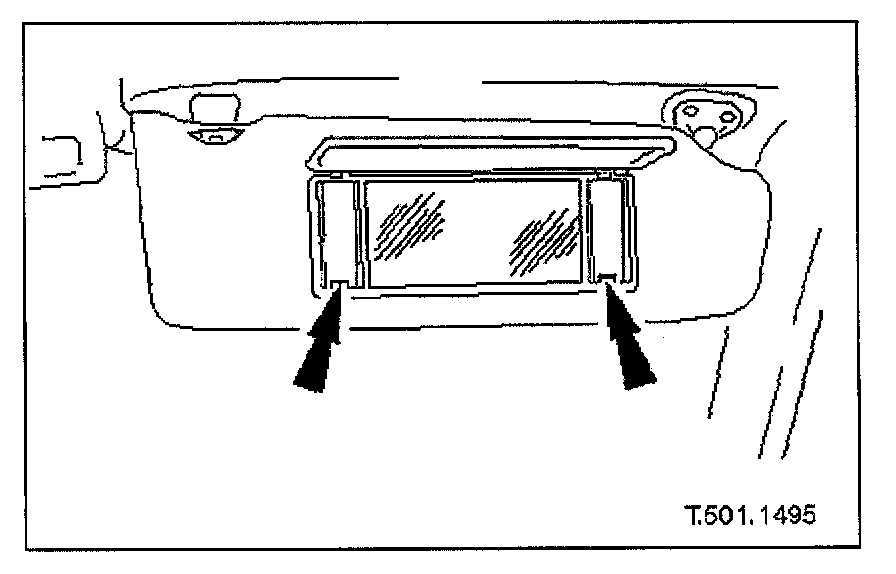

2. Using a small screwdriver or similar thin blade, carefully release illumination lens lower tangs and remove both lenses from mirror assembly.

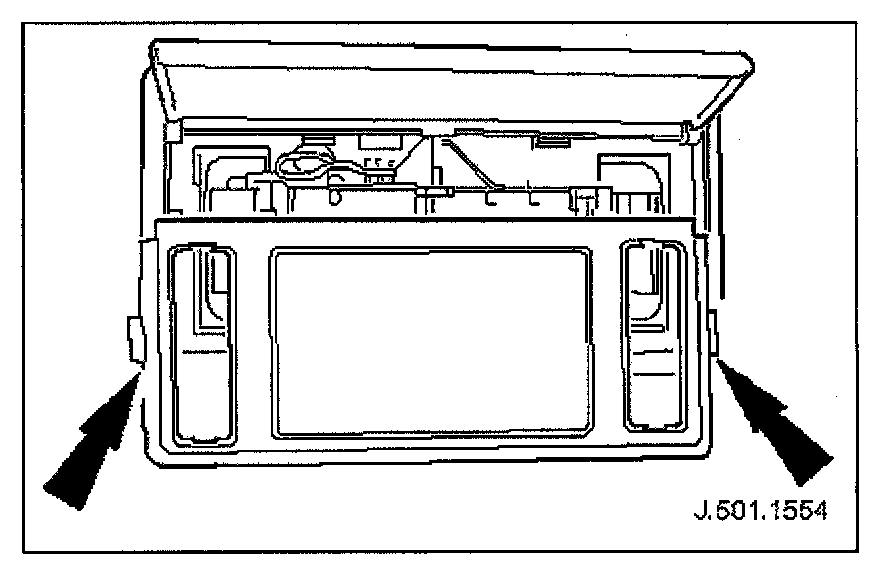

3. Using a small screwdriver or similar thin blade, carefully release side tangs and remove mirror assembly from base.

Installation
1. Ensure that bulbs, bulb holders and switch contacts are correctly positioned and seated.
2. Position mirror assembly on base and press firmly at each side to fully engage tangs.
3. Fit and fully seat mirror illumination lenses.
4. Turn mirror cover downwards and reposition sun visor upwards.
