Sun Visor Assembly

Removal
1. Turn sun visor downward, release from retention bezel and pivot outwards.

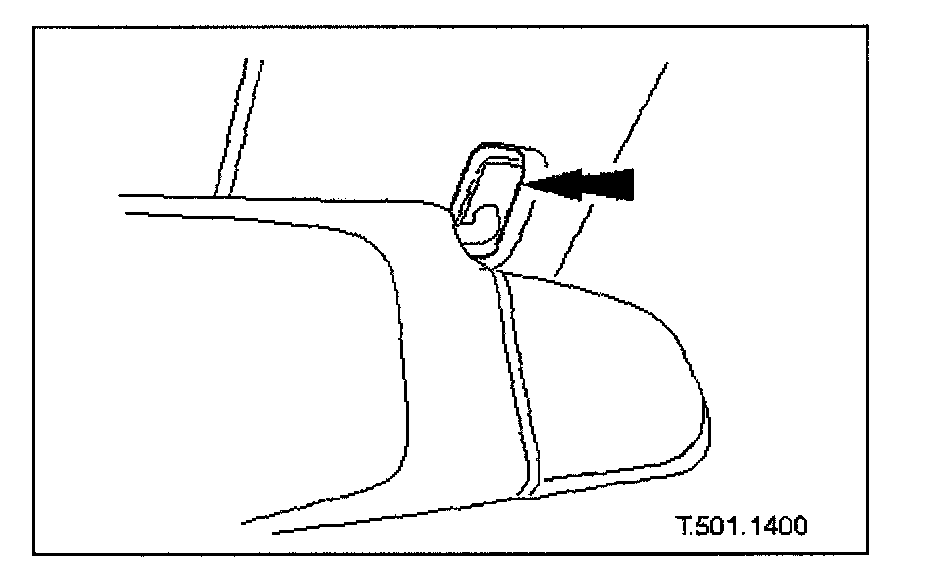

2. Carefully ease visor securing screw cover from base.

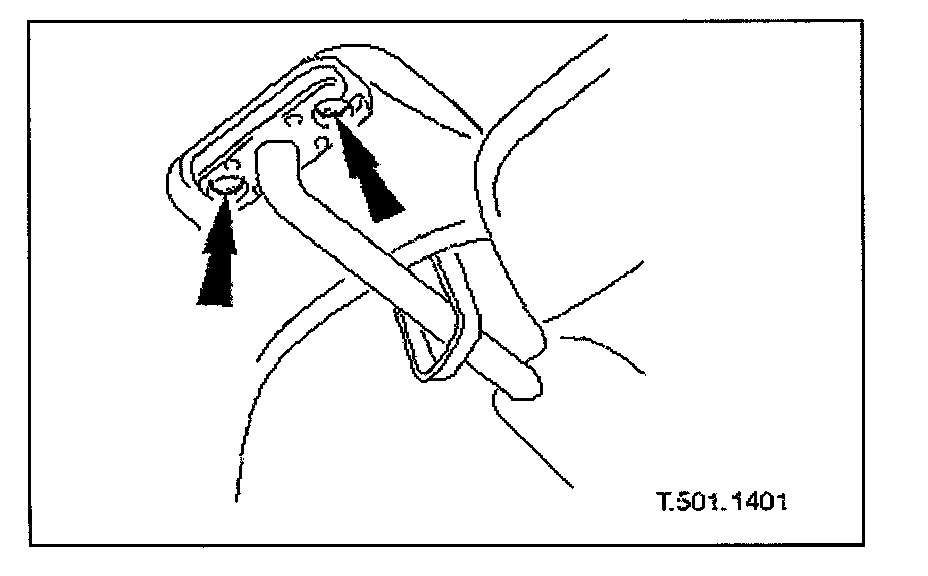

3. Slacken and remove the two visor securing screws and remove visor from vehicle.

Installation
1. Position sun visor at location and fit and tighten securing screws.
2. Fit visor base cover.
3. Pivot visor inwards, position in retention bezel and return to upward position.
