Bulb - Sun Visor Vanity Mirror



Removal
1. Rotate the sun visor down and open the vanity mirror flap.







2. Remove the mirror/lens assembly.
Use a flat screwdriver to very carefully pry the mirror/lens assembly from the visor.

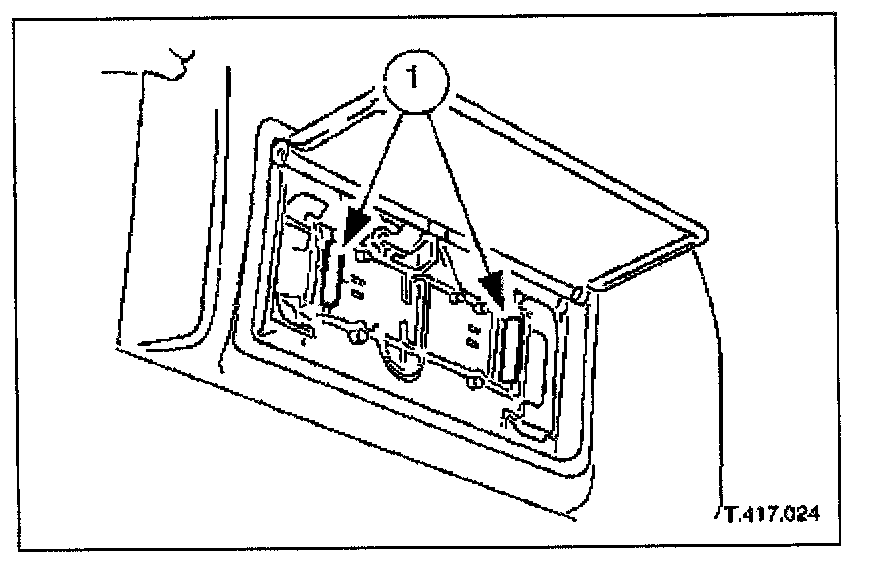

3. Remove the bulb from the vanity mirror lamp(s).
Remove the bulb(s) from the holder.

Installation
1. Installation is the reverse of removal.
