Passenger Air Bag Deployment Door And Veneer Panel

Removal


WARNING:
FOLLOWING DISCONNECTION OF THE BATTERY, A PERIOD OF AT LEAST ONE MINUTE MUST BE ALLOWED TO ELAPSE BEFORE ANY WORK IS CARRIED OUT ON AN AIR BAG.


NOTE: For safety reasons, the veneer panel is an integral part of the air bag deployment door and is not available as a separate service item.


1. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Battery, Battery Cable.' Negative
2. Remove passenger air bag complete with deployment door. Procedures

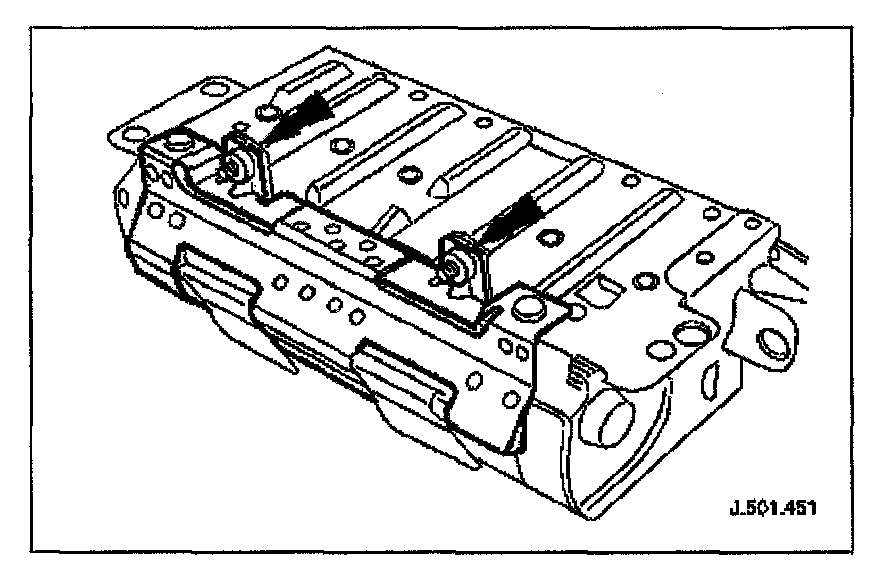

3. Slacken, remove and discard two bolts securing air bag tether bracket and deployment door to air bag module.

Installation
1. Position air bag tether bracket and deployment door on air bag module and secure with two new bolts.
2. Fit air bag assembly to fascia. Procedures
3. Connect ground cable to battery terminal and fit battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
