Parking Brake Lever Cover Trim

Removal
1. Position parking brake lever fully fully upright.

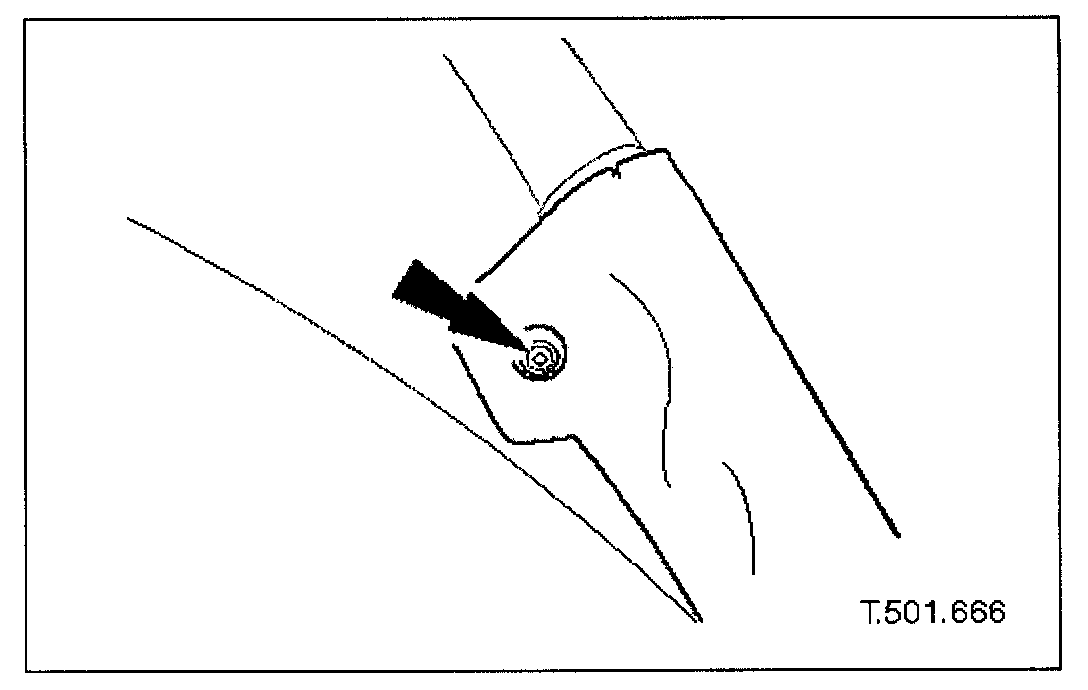

2. Release brake lever trim press stud.







3. Release cover trim securing clip from brake lever and remove cover trim.

Installation
1. With parking brake lever in the fully up position, install cover trim on lever.
2. Secure cover trim clip to brake lever.
3. Fasten cover trim press stud.
4. Return brake lever to down position.
