Instrument Panel Finish Panel

Removal


1. WARNING:
FOLLOWING REMOVAL OF THE PASSENGER AIR BAG DEPLOYMENT DOOR, NEW RETAINING CLIPS MUST ALWAYS BE FITTED.


Open Glovebox lid.

2. Withdraw passenger airbag deployment door for access. Service and Repair

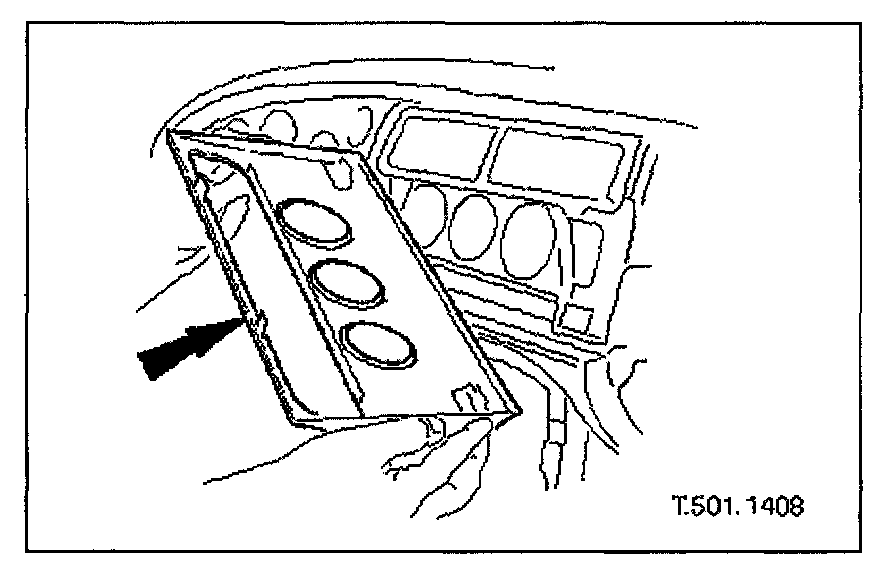

3. Using a thin plastic lever carefully release center vent veneer panel tangs from fascia clips.

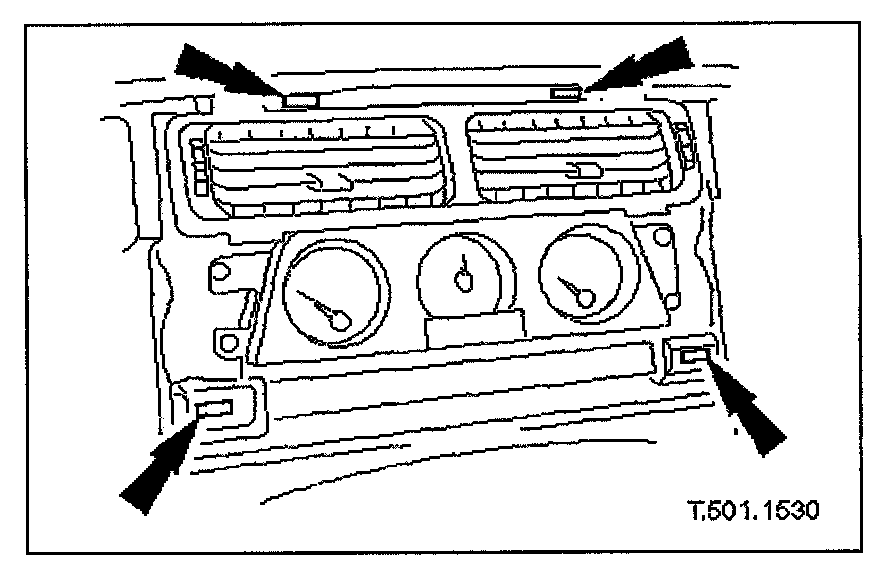

4. Remove and discard center vent veneer panel securing clips.

Installation
1. Fit and fully seat new veneer panel securing clips in fascia.


2. WARNING:
NEW PASSENGER AIR BAG DEPLOYMENT DOOR, RETAINING CLIPS MUST ALWAYS BE FITTED.


Fit and fully seat veneer panel in securing clips.
3. Fit passenger air bag deployment door. Service and Repair
4. Close glovebox lid.
