Instrument Cluster Finish Panel

Removal
1. Remove driver side underscuttle. Service and Repair
2. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Battery, Battery Cable.' Negative

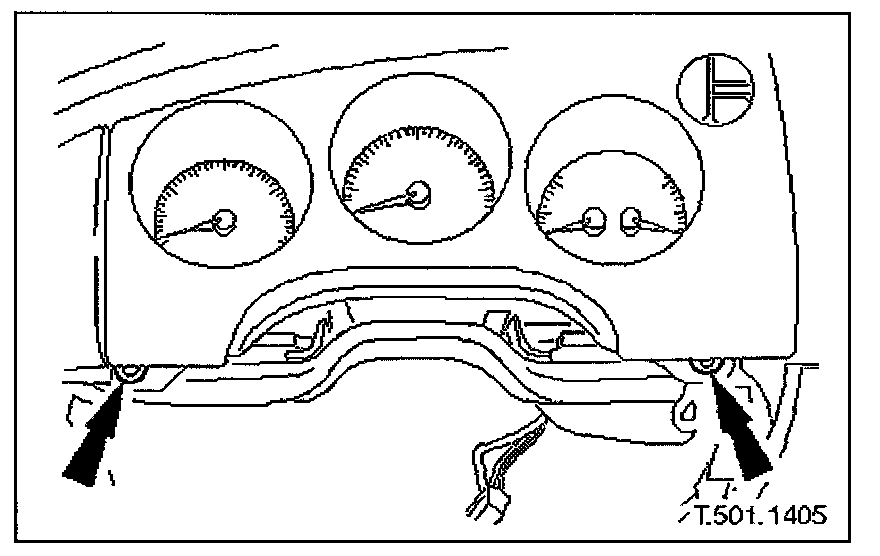

3. Slacken and remove the two veneer panel securing screws.







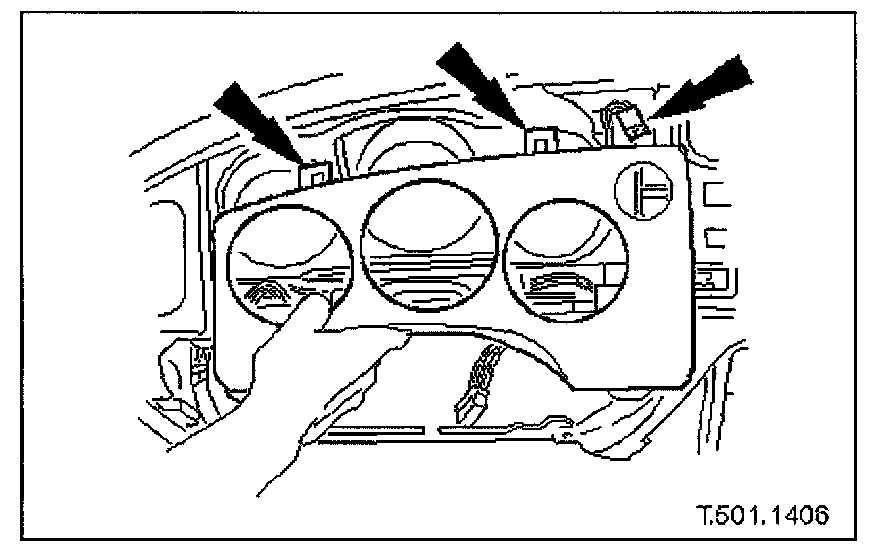

4. Withdraw veneer panel from fascia upper locating slots and disconnect trip computer switch multiplug.







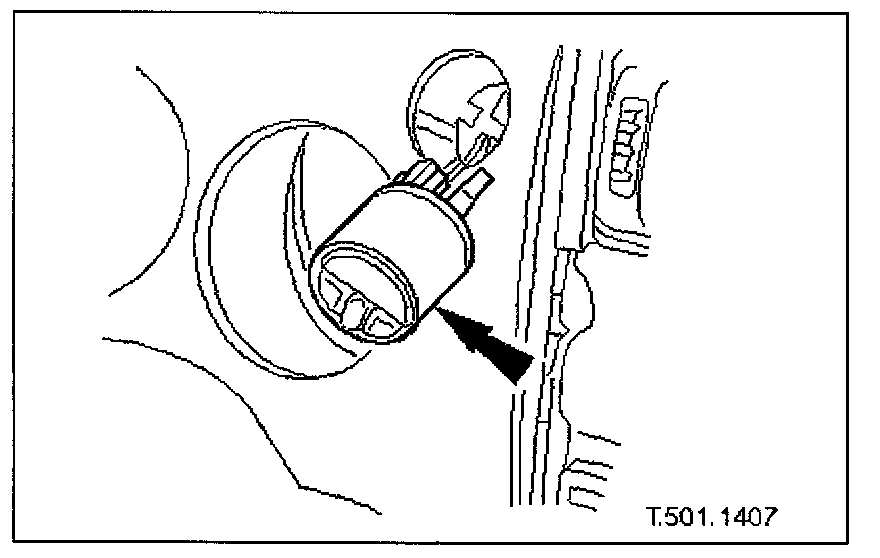

5. Position veneer panel for access and remove trip computer switch.
6. Slacken and remove instrument panel surround securing nuts and remove surround from veneer panel.

Installation
1. Align instrument surround with veneer panel and fit and tighten securing nuts.
2. Fit and fully seat trip computer switch in panel.
3. Position panel at fascia and connect trip computer switch harness multiplug.
4. Engage panel lugs in fascia upper slots and fit and tighten lower securing screws.
5. Fit driver side underscuttle. Service and Repair
6. Fit ground cable onto battery terminal and fit battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
