Glovebox Lid

Removal
1. Remove glovebox from fascia. Glove Box

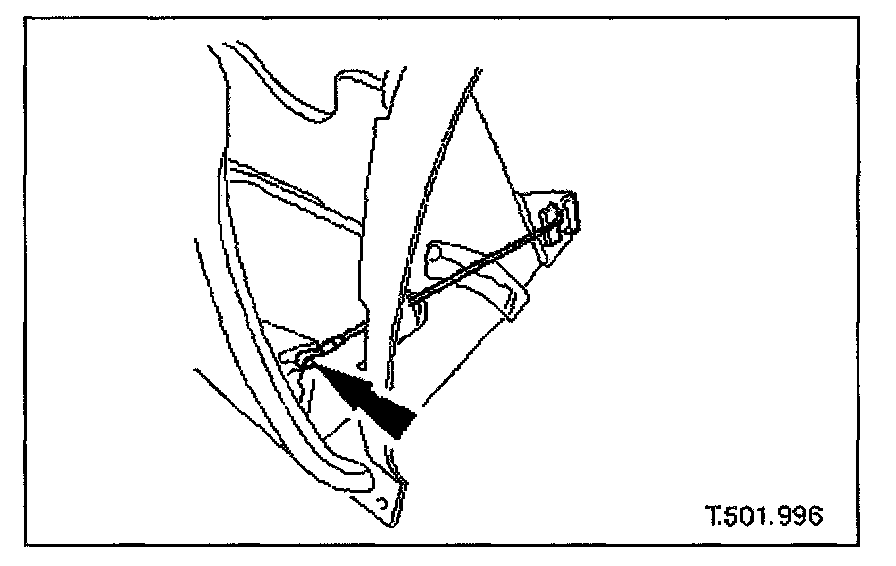

2. Move the glove box lid damper cord forward to release clip from lid.
3. Remove glove box liner from lid.
4. Slacken and remove the four hinge securing nuts.
5. Carefully withdraw the lid.
6. Remove the hinges.


Installation
1. Position glove box lid and secure to hinges with four screws.
2. Fit damper cord mounting clip.
3. Position glovebox and connect footwell and glovebox lamp multiplugs.
4. Fit liner and secure top to fascia with four screws.
5. Close glove box lid.
6. Fit and tighten screws securing bottom of glovebox to lower fascia.
7. Slacken two inner screws at bottom of glovebox, adjust alignment of glovebox lid to liner and re-tighten screws.
