Glove Box Handle and Lock Barrel

Removal
1. Remove glovebox lid. Glovebox Lid





2. Remove the glove box handle and lock barrel.

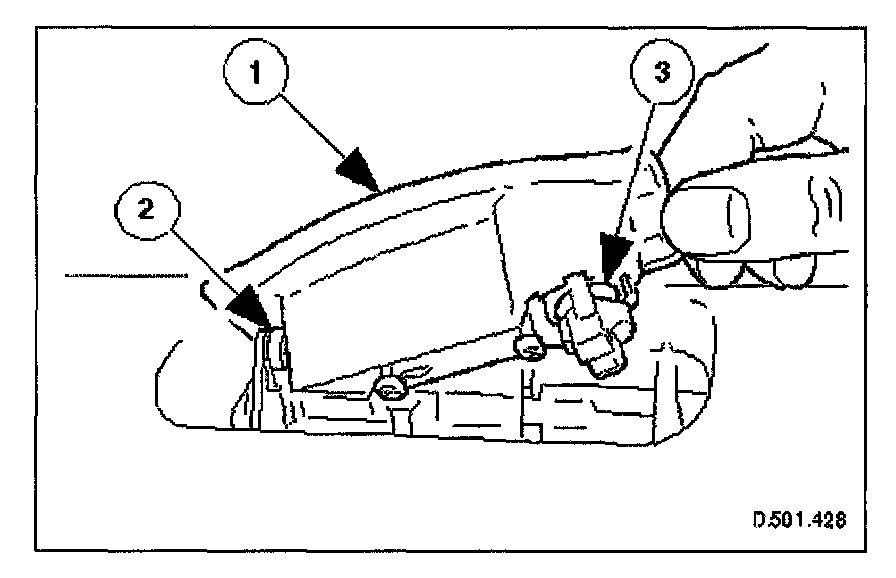

1. Holding the handle in the open position remove it from the mounting bracket by carefully prying the RH support outwards.
2. Remove the handle return spring.

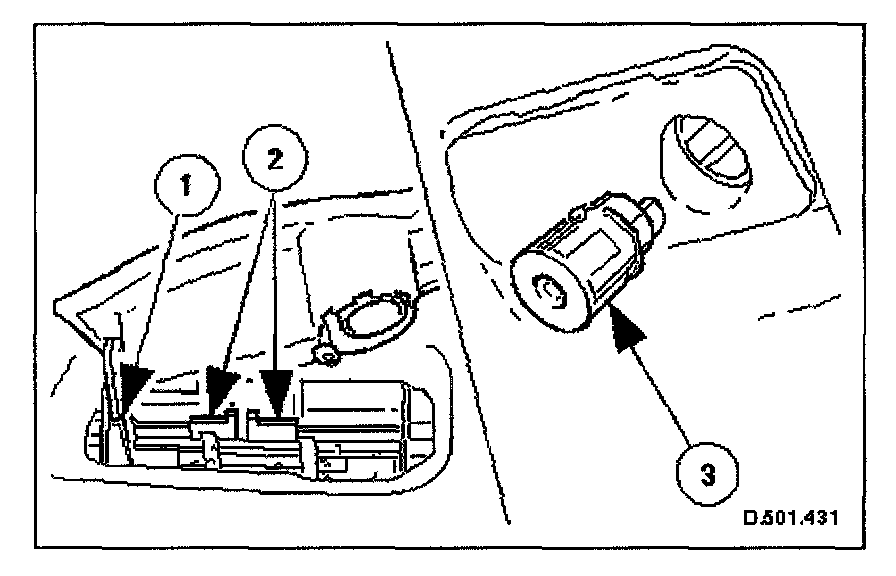

3. Releasing the retaining tangs, remove the lock barrel.


Installation





1. Fit glove box handle and lock barrel to lid.
1. Fit handle return spring ensuring that it engages in the lid mounting slot.
2. Position lock rods inwards and fit and fully seat handle in right-hand mounting bracket.
3. Fit lock barrel to lid.
2. Fit glovebox lid.
