Dashboard / Instrument Panel: Description and Operation

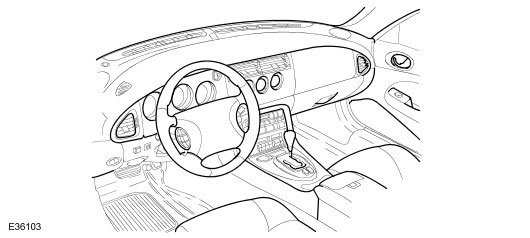

Instrument Panel







The full-width, moulded PVC instrument panel is located by a dowel at each 'A' post and secured by bolts at the bulkhead and 'A' posts. Faced with maple or walnut burr veneer, the panel accepts two separate instrument clusters, one containing four major instruments, the other containing three auxiliary instruments.

The major instrument cluster is situated directly ahead of driver, whilst the auxiliary cluster is located inboard from the driver, above the center console.
