Cupholder Assembly

Removal
1. Open center console glove box lid.







2. Slacken and remove screw securing check arm to glovebox lid.

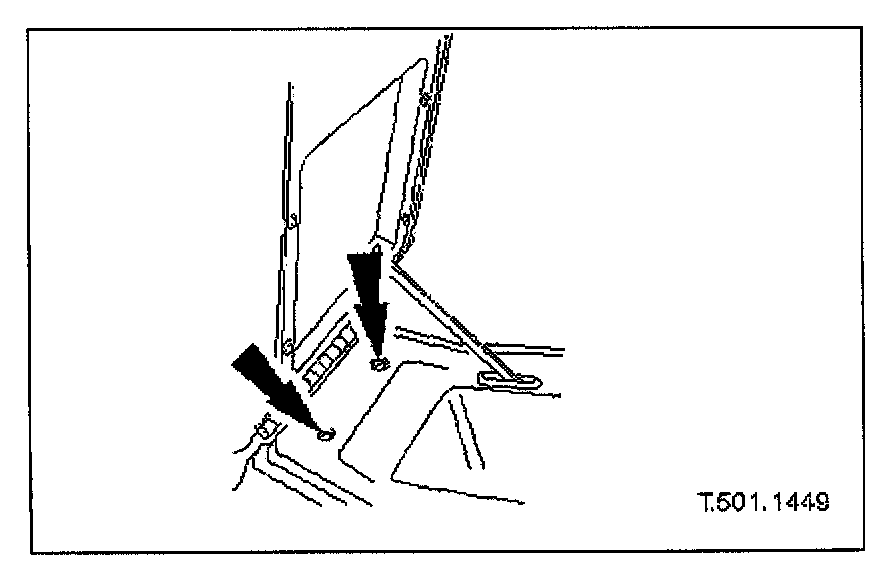

3. Slacken and remove two screws securing glove box lid to console and remove lid from console.
4. Operate latch to release the cup holder lid.

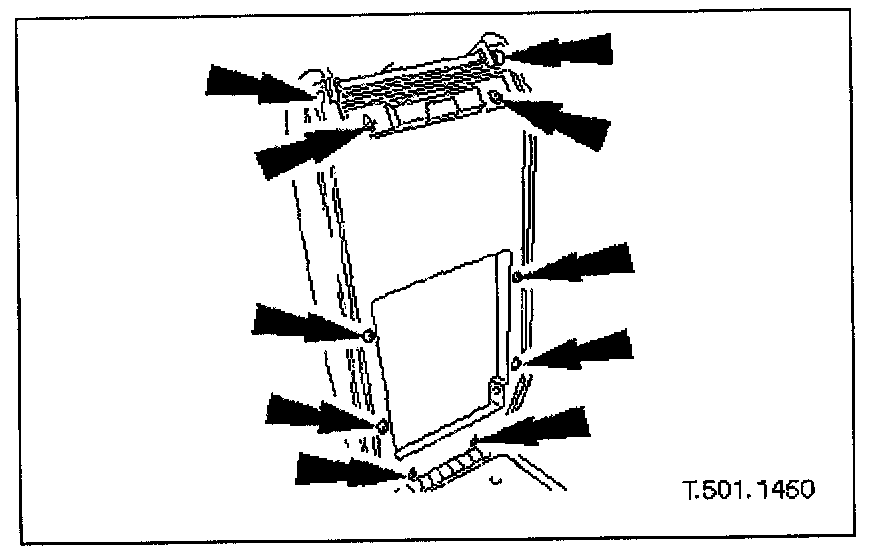

5. Slacken and remove the ten screws securing inner finisher to glovebox lid.
6. Remove inner finisher and hinge from glove box lid.

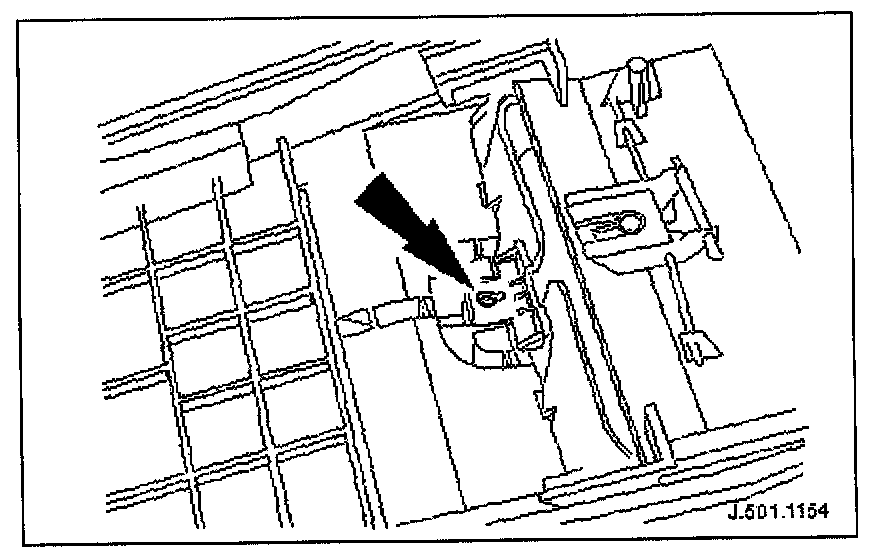

7. Slacken and remove cup holder latch securing screw and remove latch assembly.

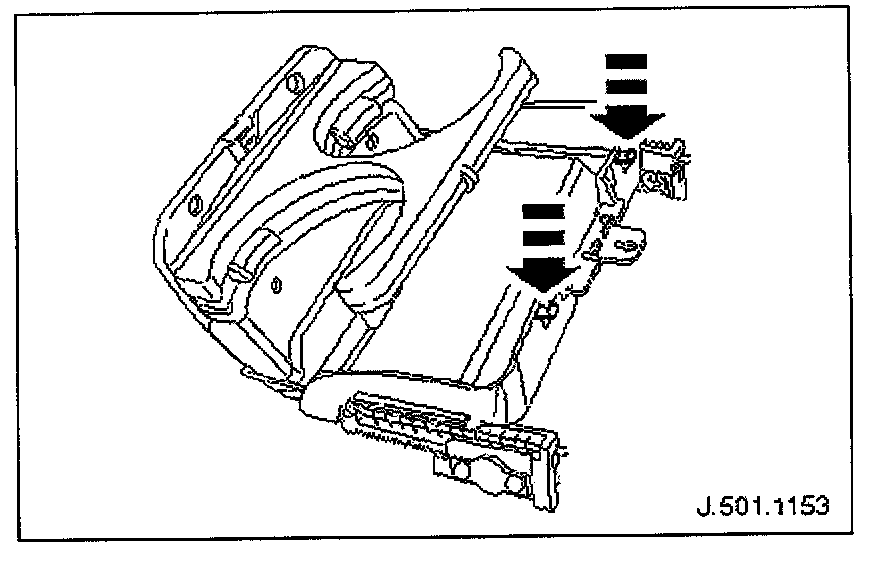

8. Open cupholder, depress tang each side of latch location and withdraw cupholder assembly from base.

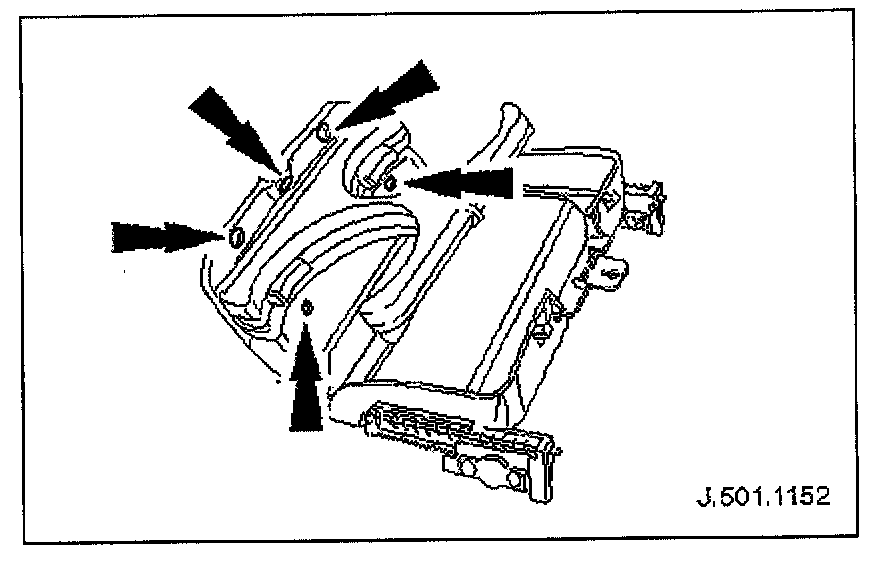

9. Slacken and remove the five cup holder lid trim panel securing screws and remove panel from lid by releasing lower edge and withdrawing upwards.

Installation
1. Fit and fully seat trim panel to cup holder lid ensuring that panel hook engages lid and panel engages lid damper wire.
2. Fit and tighten screws securing trim panel to cup holder lid.
3. Fit and fully seat cupholder and trim panel assembly to glove box lid.
4. Position cup holder latch and fit and tighten securing screw.
5. Fit hinge to glove box lid.
6. Fit and fully seat inner finisher to glove box lid and fit and tighten securing screws.
7. Close cup holder lid, position glove box lid assembly on center console. and fit and tighten securing screws.
8. Close center console glove box lid.
