Center Console Switch Module Illumination Bulb

1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove 'J' gate surround. Center Console 'J' Gate Trim
3. Remove center console for access. Removal and Installation
4. Remove radio console for access. Radio Console

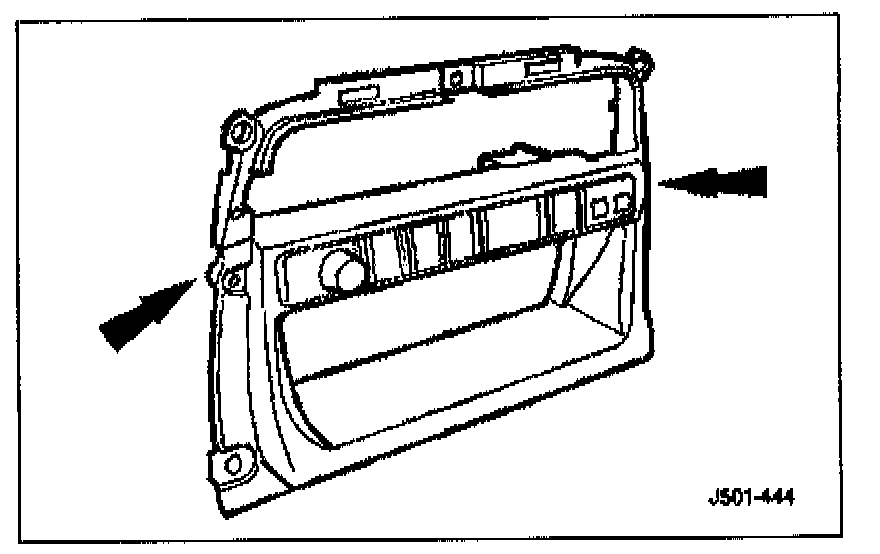

5. Disconnect switch module harness multiplug, release module end locators and lightly press module out of console.

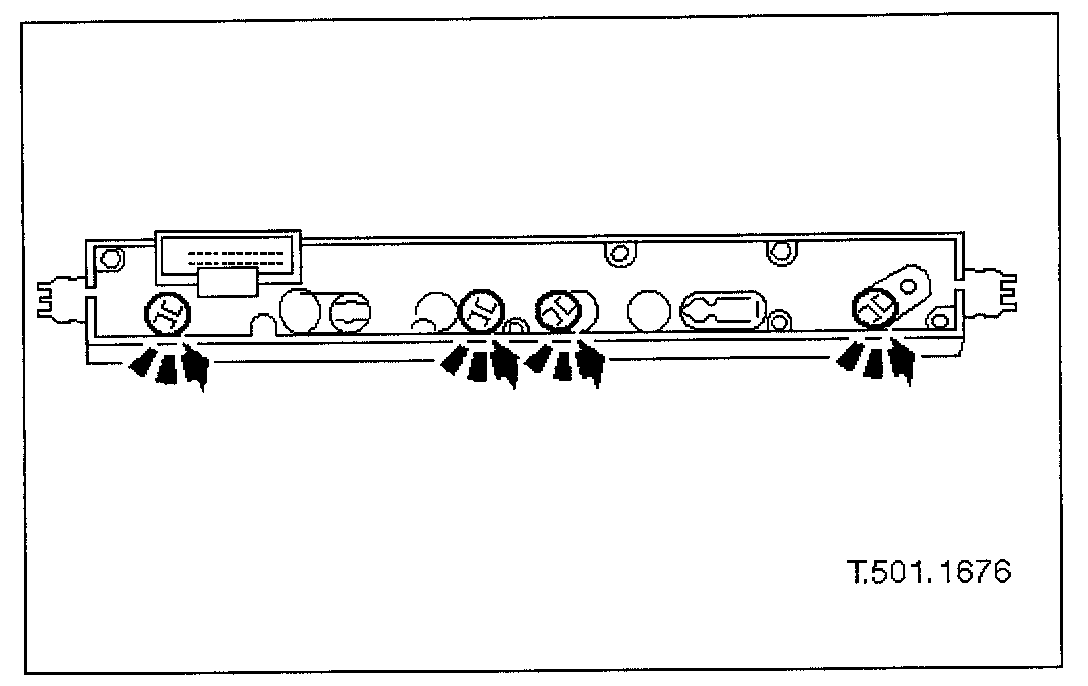

6. Rotate bulb holder 1/4 turn counter-clockwise and remove from module.
7. Remove bulb from holder.

Installation
1. Install bulb in holder.
2. Install bulb and holder in module and rotate 1/4 turn clockwise to fully seat.
3. Install switch module in console ensuring that end locators are fully seated.
4. Connect switch module harness multiplug.
5. Install radio console. Radio Console
6. Install center console. Removal and Installation
7. Install 'J' gate surround. Center Console 'J' Gate Trim
8. Perform the Battery Reconnection Procedure Service and Repair and install battery cover.
