Center Console Ashtray

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove center console for access. Refer to Console. Console
3. Open ashtray lid and remove cigar lighter.







4. Remove cigar lighter housing.
Remove tape securing harness to console underside..

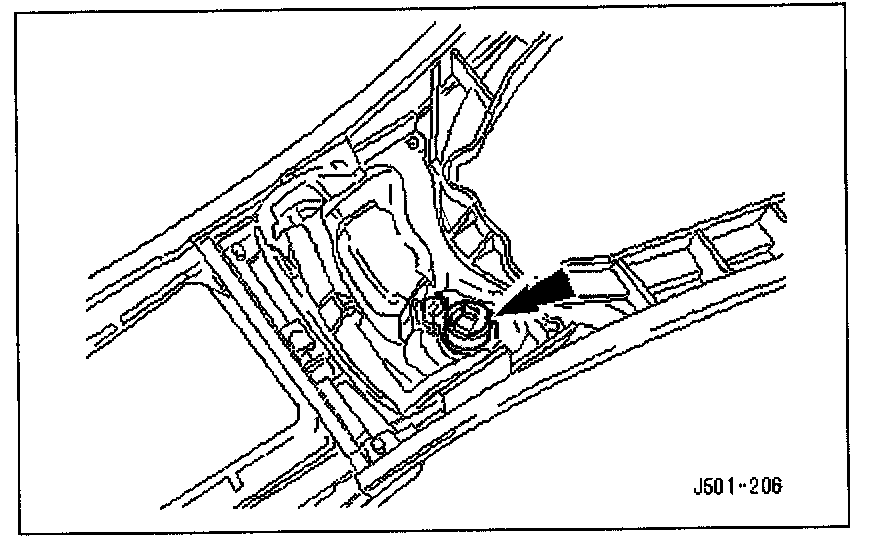

Slacken and remove retaining ring from underside and remove housing complete with cable.
5. Release bulb housing tangs and withdraw bulb and housing from underside complete with flying lead.

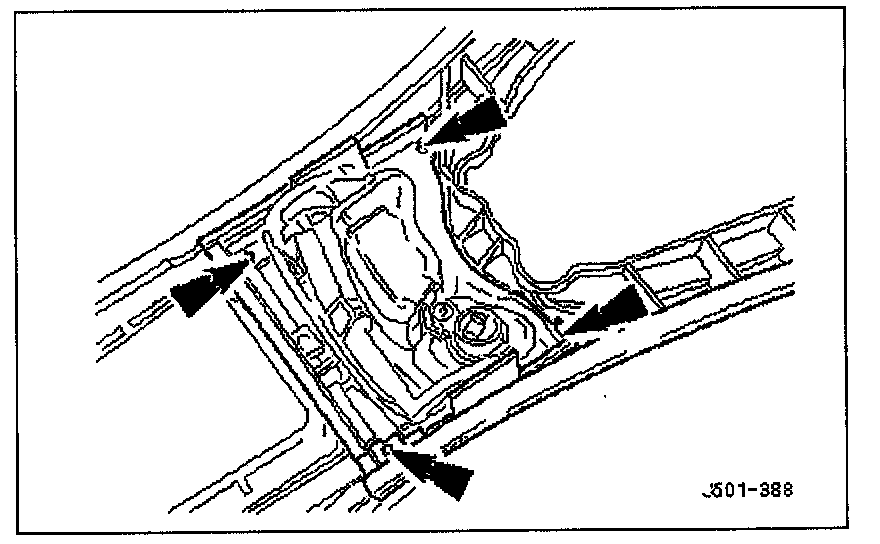

6. Position console for access, slacken and remove the four ashtray securing screws and remove ashtray from console.

Installation
1. Position ashtray on center console.
2. Fit and tighten the four ashtray securing screws.
3. Fit and fully seat cigar lighter housing in ashtray and fit and tighten retaining ring.
4. Fit cigar lighter housing and illumination bulb.
5. Tape cables to underside of console.
6. Fit cigar lighter in housing.
7. Close ashtray lid.
8. Fit center console assembly.
9. Connect multiplug at rear of center console.
10. Fit center console rear air distribution control grill.
11. Connect earth cable to battery terminal and fit battery cover.
