Console: Description and Operation

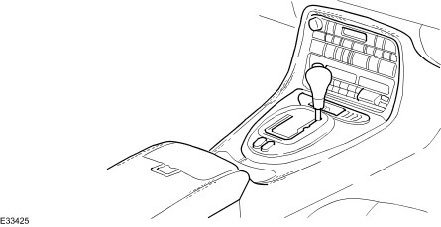

Center Console







The center console is an injection moulded armature trimmed in matching ambla with maple or burr walnut veneer top finisher. A lined stowage tray/pen holder is incorporated forward of the 'J' gate and an illuminated smoker's compendium with press and release lid is fitted at the rear of the ' J' gate. The rear section of the console forms a deep stowage box with rear hinged lid which is padded to form a central arm rest. A hinged cup holder is incorporated in the front end of the stowage box lid. A color-keyed 'J' gate surround surmounts the veneer top finisher and the 'SPORT' mode selector switch is situated immediately to the rear of the 'J' gate.

Two tongues at the front of the console locate in slots in the lower fascia, and the center and rear of the console are secured by screws to floor brackets.
