Passenger Side

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Refer to 'Battery, Battery Cable.' Negative
2. Remove door sill treadplate. Service and Repair
3. Remove front passenger seat. Service and Repair
4. Remove 'J' gate surround. Service and Repair
5. Remove center console for access. Service and Repair
6. Remove rear quarter casing for access. Service and Repair
7. Remove rear seat cushion. Service and Repair
8. Remove 'A' post lower trim pad. Service and Repair






9. Remove 1/4 turn toeboard fastener.







10. Remove and discard fastener securing carpet at fascia/console area.

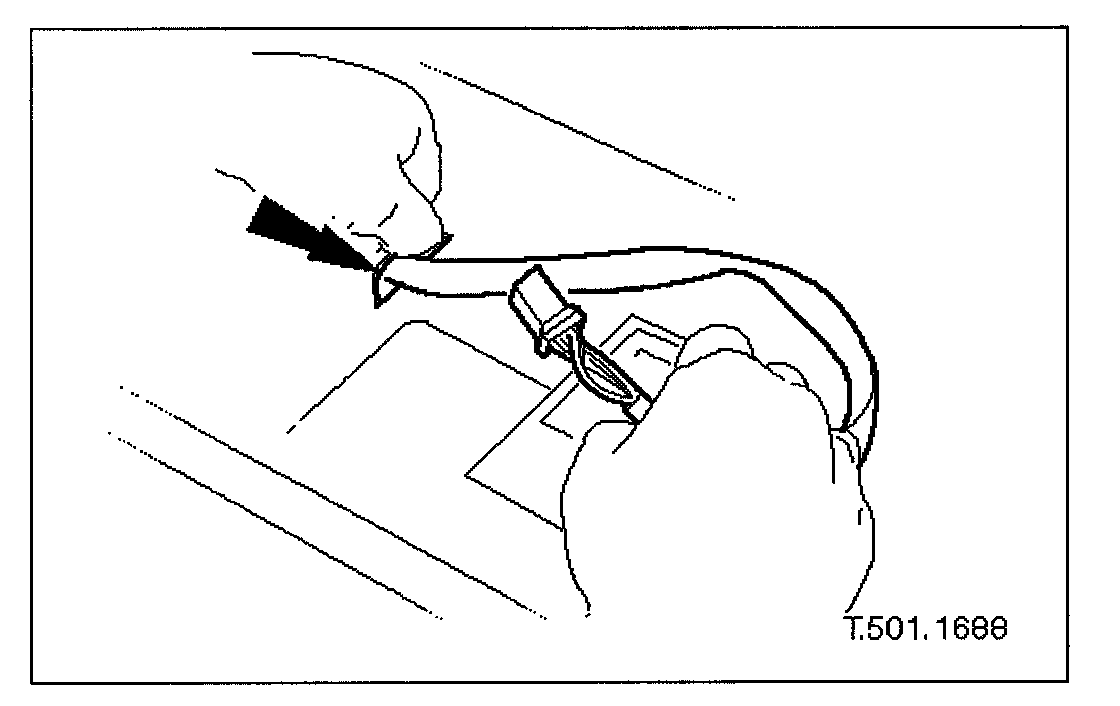

11. Withdraw draught welt and release carpet retaining clips from door aperture flange.
12. Free rear of carpet from rear seat cushion locator.







13. Lift rear of carpet and pass seat harness and connector through.
14. Fold front of carpet back from footwell.
15. Ensuring carpet is free, pull rearwards and remove it from vehicle.

Installation
1. Position carpet in vehicle.
2. Align carpet with toeboard.
3. Align carpet with heelboard and secure with clip.
4. Install carpet to door aperture retaining clips.
5. Install and fully seat draught welt on door aperture flange.
6. Install new fastener securing carpet to fascia/console area.
7. Install fastener securing carpet to toeboard.
8. Install 'A' post lower trim pad. Service and Repair
9. Install rear seat cushion. Service and Repair
10. Install rear quarter casing. Service and Repair
11. Install center console. Service and Repair
12. Install 'J' gate surround. Service and Repair
13. Install passenger seat and adjust to original position. Service and Repair
14. Install door sill treadplate. Service and Repair
15. Connect ground cable to battery terminal and install battery cover. Refer to 'Battery, Service and Repair, Battery Reconnection Procedure.' Service and Repair
