Power Trunk / Liftgate Lock Actuator Position Sensor: Service and Repair

Removal
1. Remove trunk floor carpet.
2. Remove trunk lock mechanism for access. Service and Repair

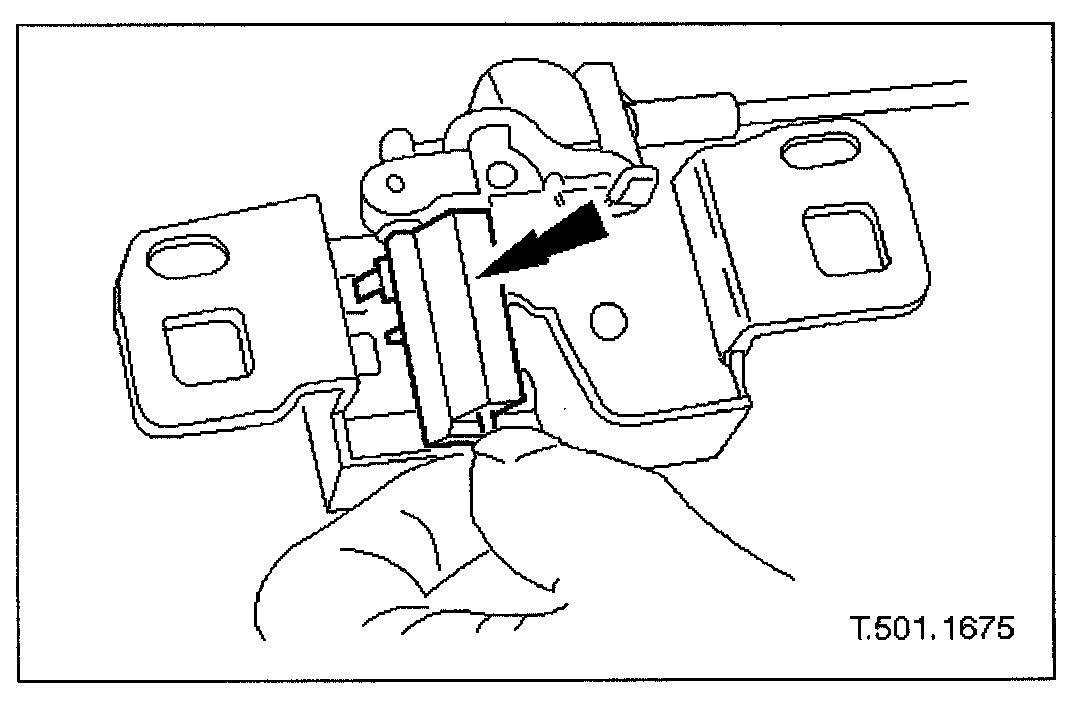

3. Carefully ease warning switch tangs from trunk lock mechanism.
4. Remove warning switch assembly from lock mechanism.


Installation
1. Position warning switch on lock mechanism and fit and fully seat tangs.
2. Install trunk lock mechanism.
3. Install trunk floor carpet.
