Fuel Door: Description and Operation

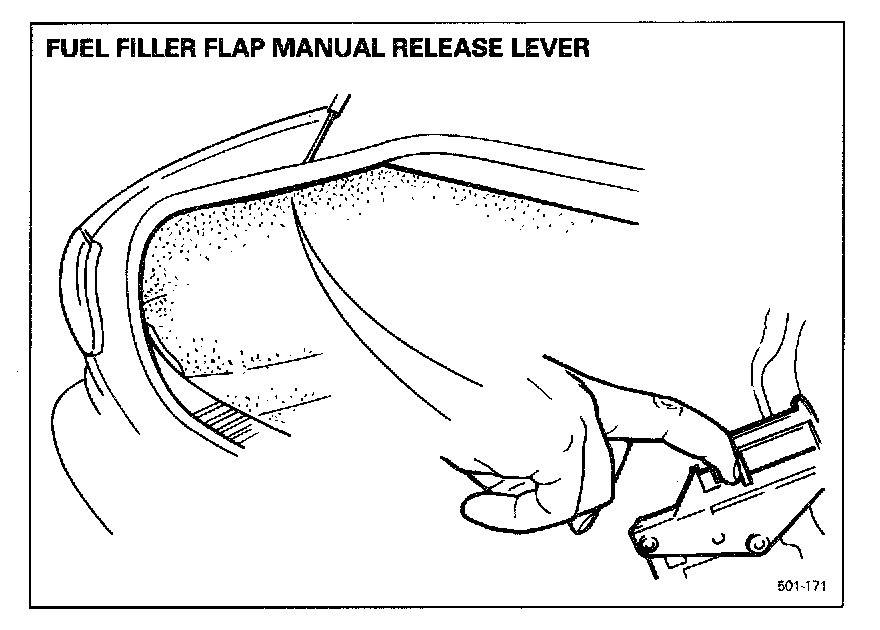

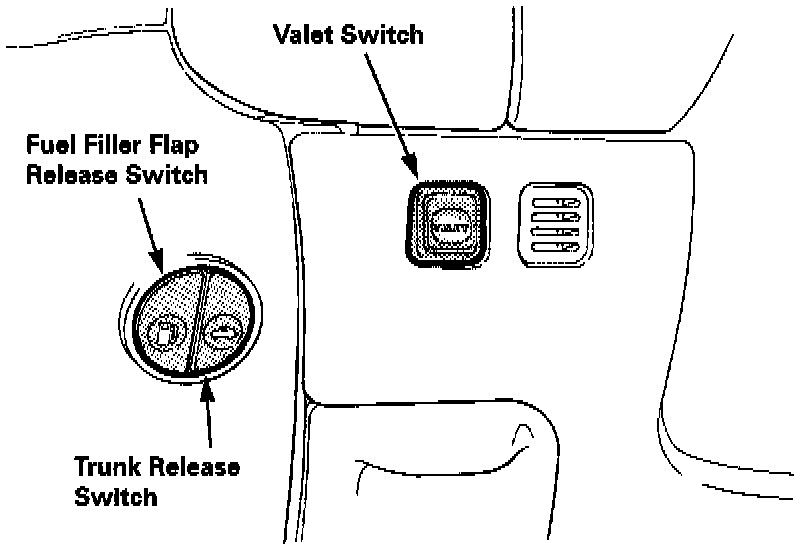

An illuminated switch in the driver's underscuttle opens the fuel filler flap which is located in the rear upper part of the left rear fender assembly. The flap will not open with the engine ON. Manual release of the flap is made by removing the trunk left side trim panel and pulling the manual flap release lever.
