Front Door Panel: Service and Repair

Removal

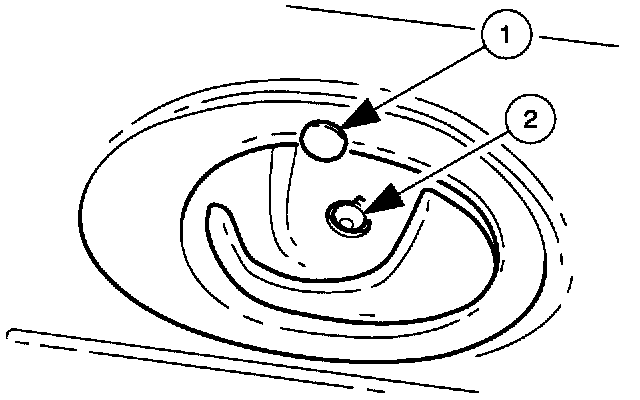

1. Remove door escutcheon.
1 Holding door handle in the open position, remove the escutcheon securing screw cover.
2 Slacken and remove the escutcheon securing screw, remove escutcheon from door casing and return door handle to closed position.

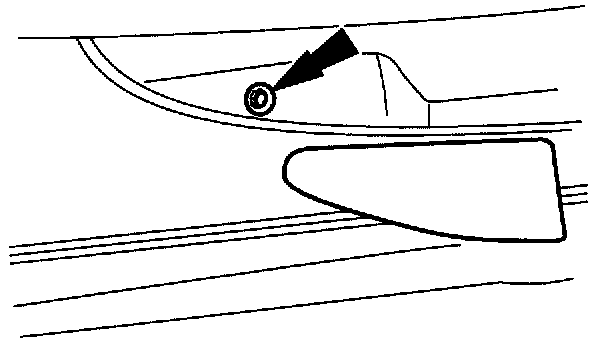

2. Remove rubber trim mat from rear of door pocket and slacken and remove the securing screw.

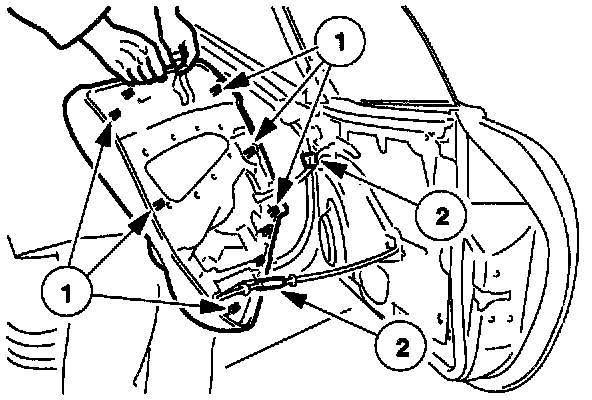

3. Remove door casing for access to multiplugs.
1 Release eight studs securing the casing to the door.
2 Position the casing for access and disconnect the door switch pack and puddle lamp multiplugs.
4. Remove door casing from vehicle.

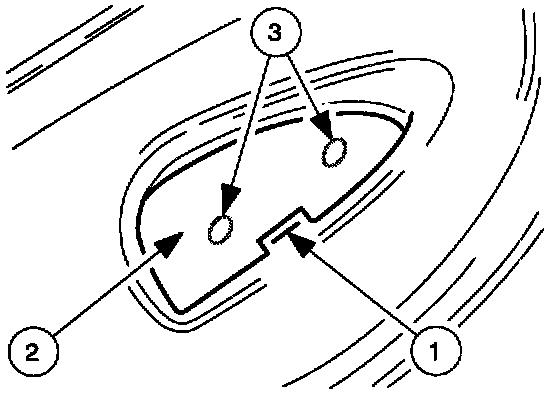

5. Remove puddle lamp lens.
1 Move puddle lamp lens securing tab downwards.
2 Slide lens downwards to release it from the lamp assembly.
3 Slacken and remove two screws securing the puddle lamp assembly to the casing and remove puddle lamp from casing.

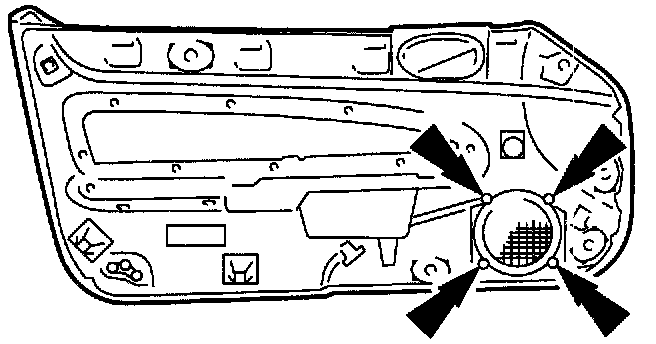

6. Slacken and remove the door speaker cover securing screws from lower face of trim pad and remove cover from casing.

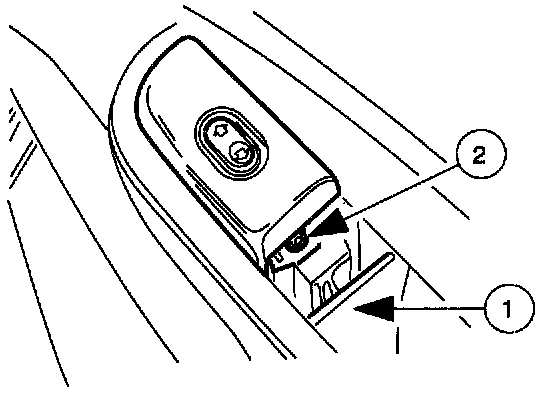

7. Remove door switch pack assembly.
1 Using a suitable plastic hook, lift and remove trim from front of door pocket.
2 Slacken and remove screw securing switch pack to door casing and remove switch pack.

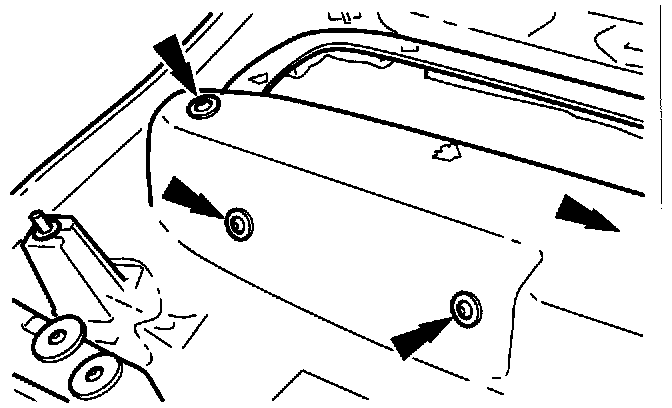

8. Slacken and remove four screws securing armrest to door casing and remove armrest from casing.
9. Remove securing studs from door casing.

Installation
10. Fit new securing studs to casing.
11. Position armrest on casing and fit and tighten the four securing screws.
12. Position switch pack on casing and fit and tighten securing screw.
13. Fit trim to front of door pocket.
14. Position speaker cover on casing and fit and tighten securing screws.
15. Position and align puddle lamp assembly on casing and fit and tighten two securing screws.
16. Fit lens to puddle light assembly.
17. Position casing at door and connect switch pack and puddle lamp multiplugs.
18. Align casing to door and press and fully seat securing studs into door locations.
19. Fit and tighten securing screw to rear of door pocket.
20. Fit rubber trim mat to rear of door pocket.
21. Holding door handle in open position, fit escutcheon to casing and fit and tighten securing screw. Fit securing screw cover.
22. Return door handle to closed position.
