Cabin Ventilation Grille: Description and Operation

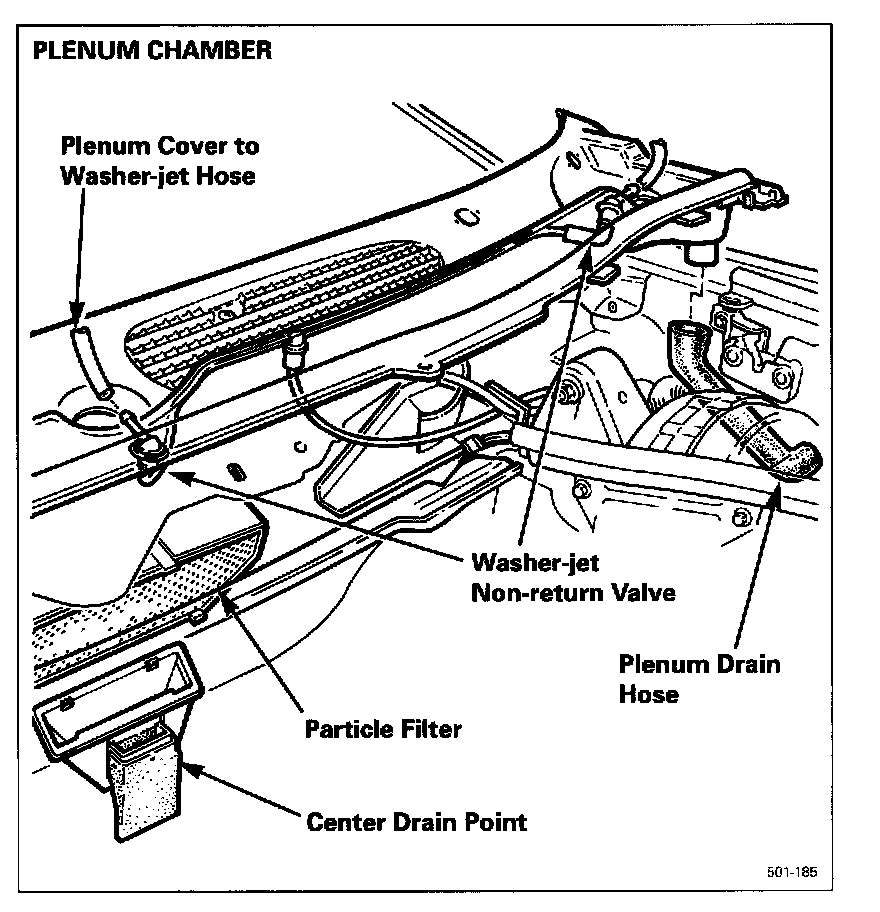

The plenum is fixed in a similar manner to the 95MY sedan and includes the windshield/tender seals and tubing connectors for the windshield wiper wash. It also carries the climate control air intake particle filter, when fitted. The accelerator cable passes through the plenum to ensure that the cable cannot be trapped when the moulding is fitted. Water drain is from a central connection and wiper spindle depressions. Water def lectors keep water away from the control module and forward bulkhead extension areas. A plastic moulding plate closes off the plenum chamber from the central wet area and carries studs for attaching the ignition amplifiers.
