Rear Sub-Woofer Speaker Cover

Removal
1. Move front seat back to fully forward position.

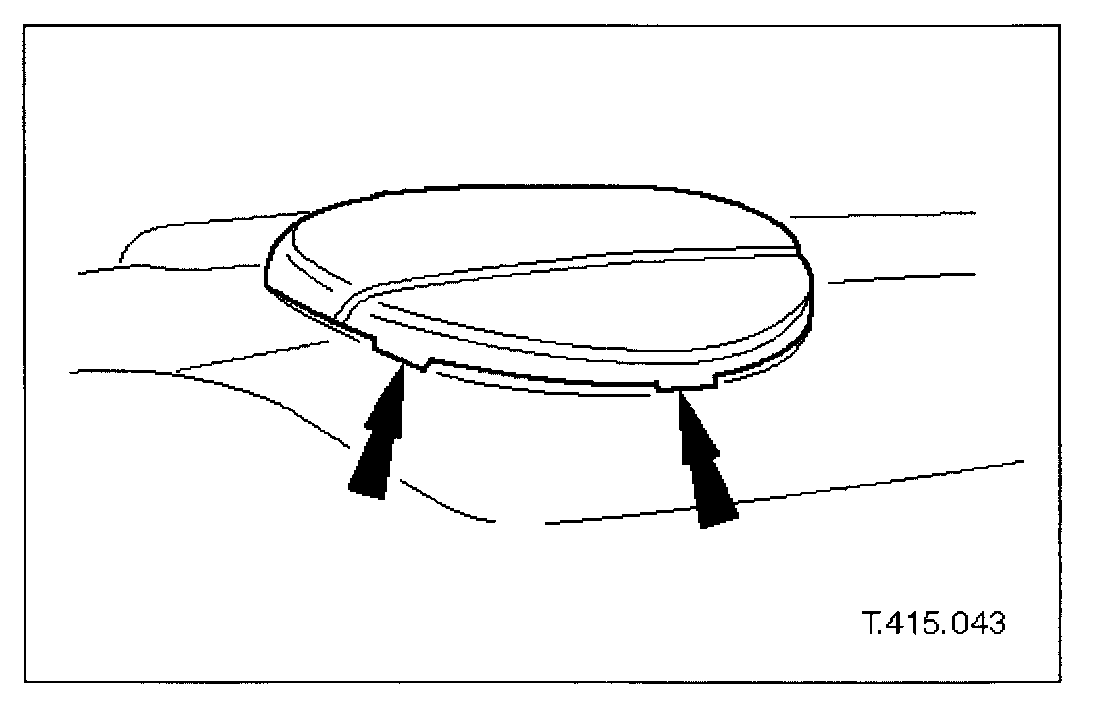

2. Carefully lift front edge of speaker cover to release front and side clips from rear parcel shelf.

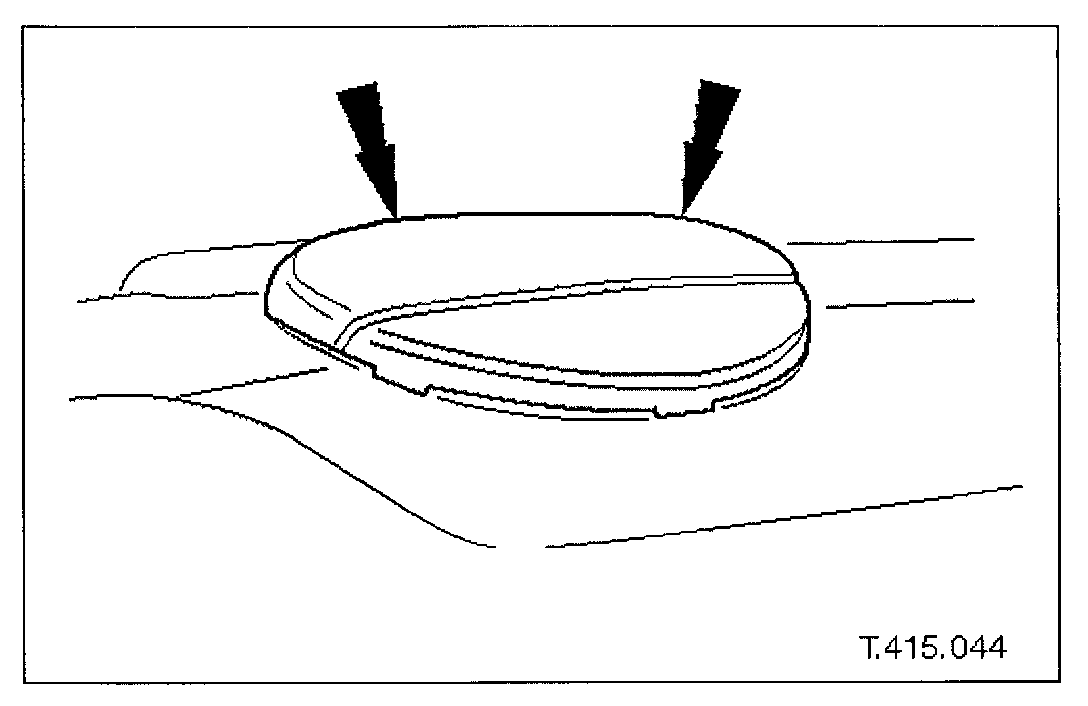

3. Move speaker cover forward to release rear clips from parcel shelf.
4. Remove cover from speaker.

Installation







1. Position speaker cover on parcel shelf and engage rear clips in slots.







2. Lower front edge of speaker cover and engage side and front clips in parcel shelf.
3. Return seat back to upright position.
