Front Door Speaker

Removal
1. Open the driver's door, or both doors if necessary, to allow the side glass to drop. Ensure that the doors remain open until after the battery has been disconnected.

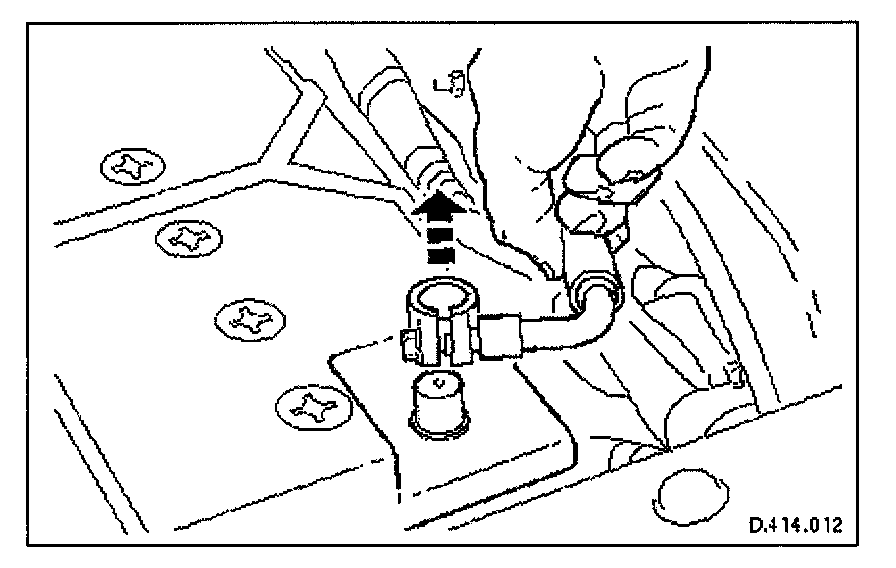

2. Disconnect the battery ground cable. Service and Repair
Remove the battery cover.
3. Remove the trim pad from the door.

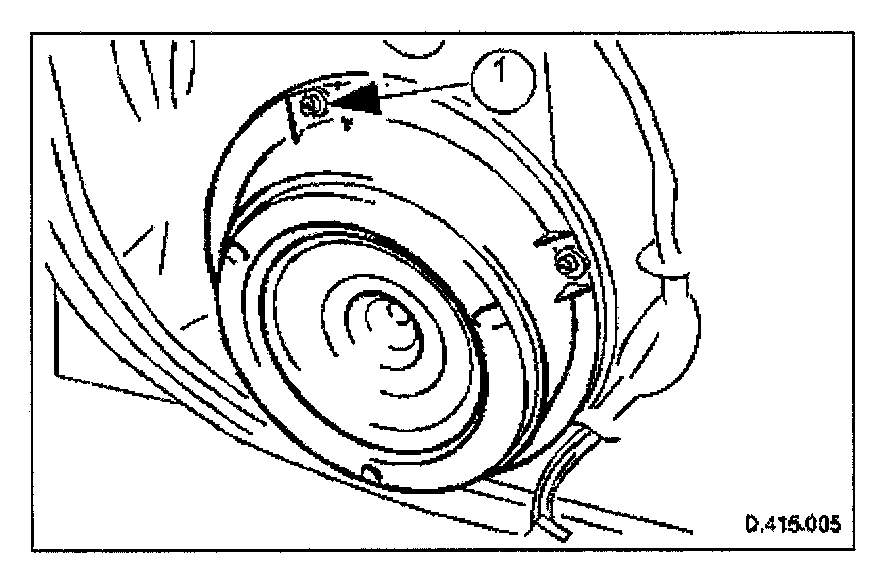

4. Remove the door speaker from the door.
Remove the four bolts which secure the speaker.

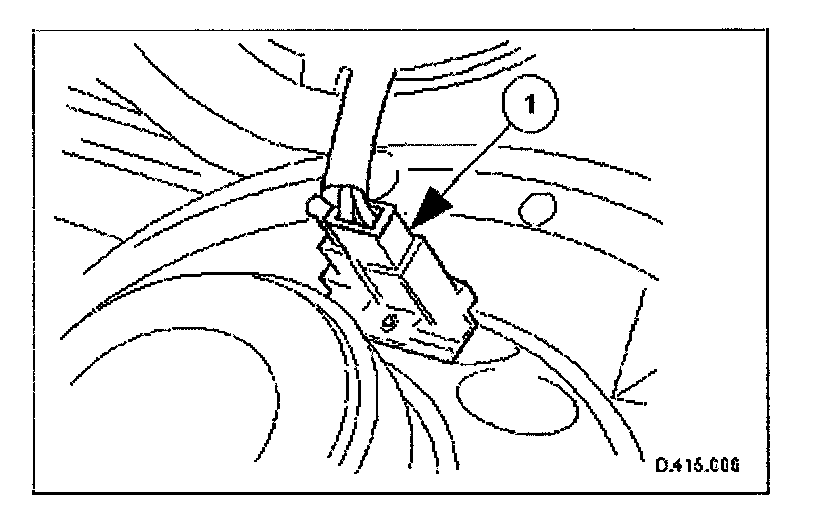

5. Disconnect and remove the speaker.
Support the speaker, disconnect the multi-plug and remove the speaker.


Installation
1. Installation is the reverse of removal, noting that the battery must be reconnected in accordance with proper procedure. See Battery Reconnection Procedure. Service and Repair
