Convertible Rear Speaker Assembly, Premium ICE

Removal
1. Remove rear seat cushion. Service and Repair
2. On convertible model only, remove rear seat squab. Service and Repair
3. On convertible model only, remove rear quarter casing capping.
4. Remove rear quarter casing.

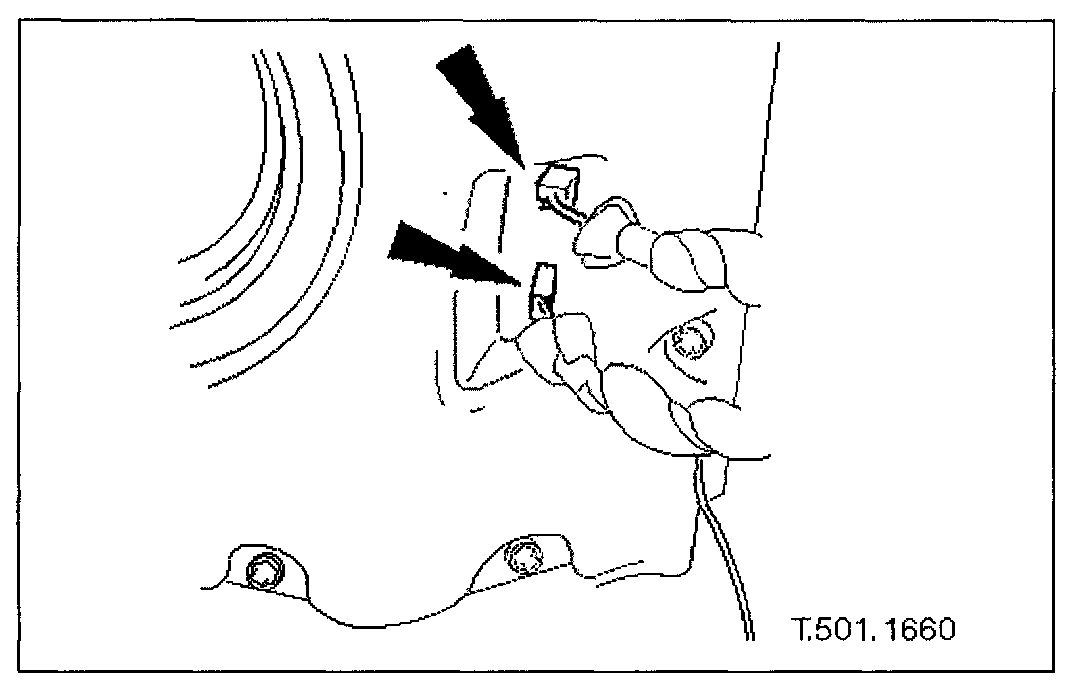

5. Disconnect harness mutliplugs from speaker assembly.

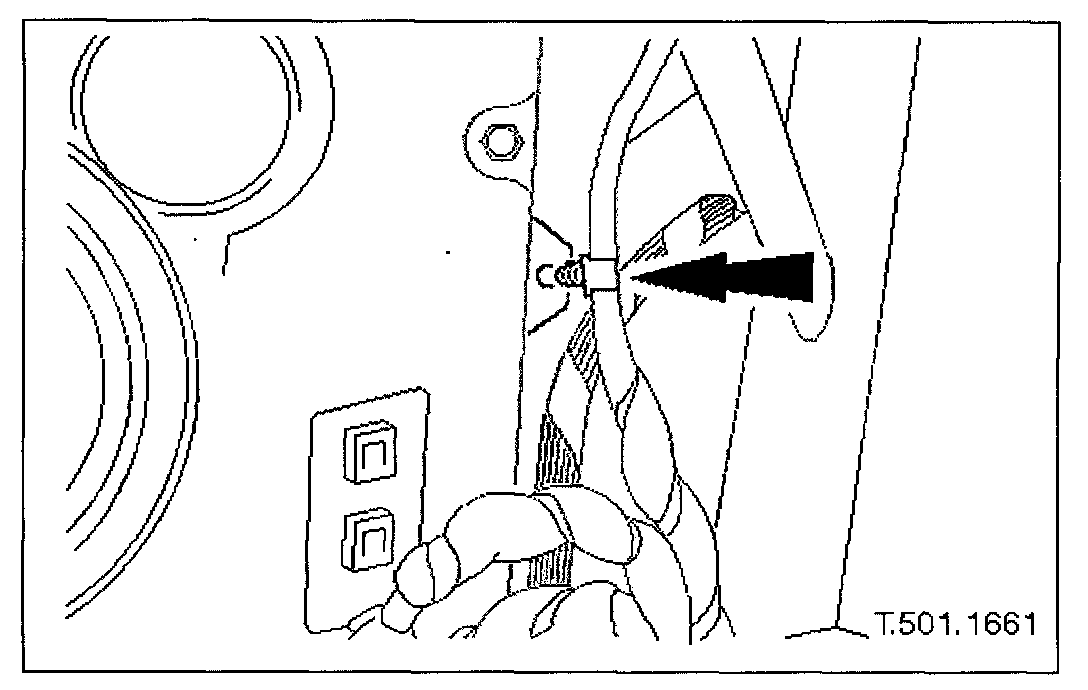

6. Release security aerial retaining clip from speaker assembly and position aerial clear.

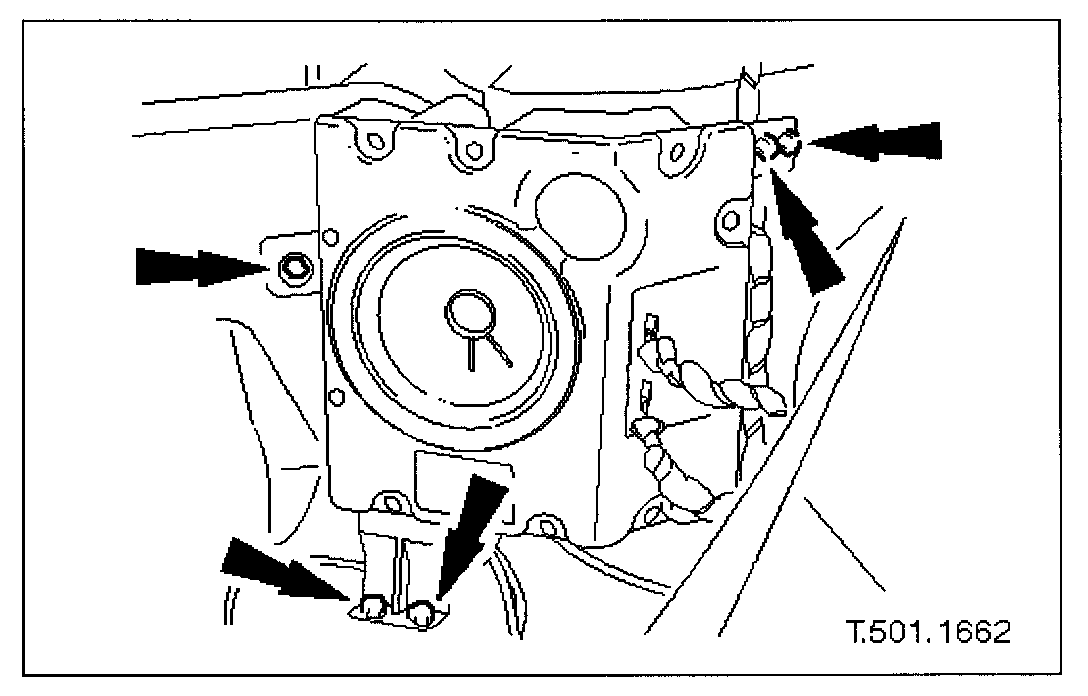

7. Remove nuts and bolts securing speaker assembly to BIW.
8. Remove speaker assembly from vehicle.

Installation
1. Position speaker assembly in vehicle.
2. Install speaker assembly securing nuts and bolts.
3. Install security aerial clip on speaker assembly.
4. Connect speaker harness multiplugs.
5. Install rear quarter casing.
6. Install rear quarter casing capping.
7. Install rear seat squab. Service and Repair
8. Install rear seat cushion. Service and Repair
