Speaker: Locations

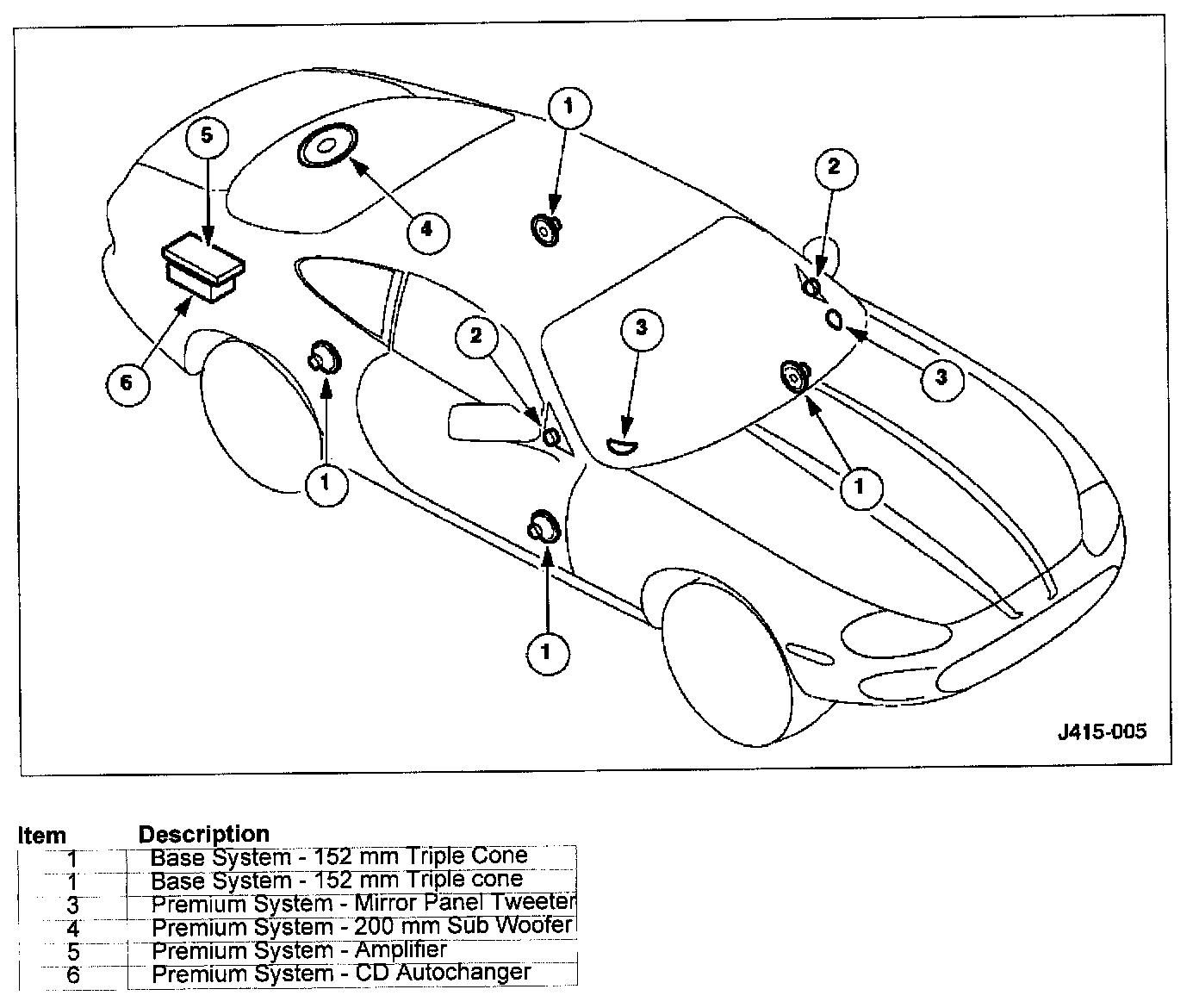

Speaker Location - Coupe:






Both coupe and convertible with the standard entertainment system use a common speaker configuration.

Vehicles with the premium entertainment system have a different configuration for each model.

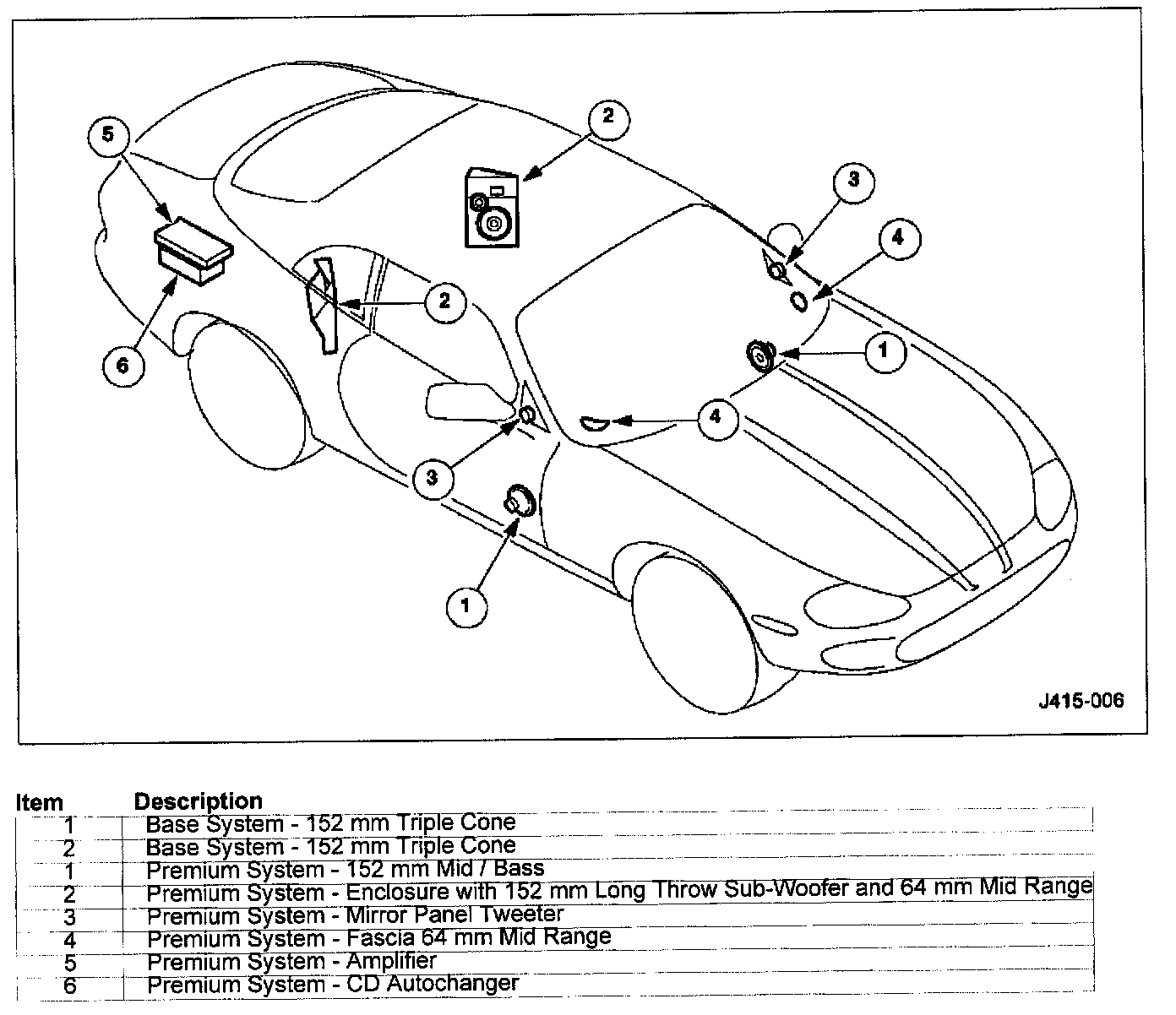

Speaker Location - Convertible:
