Radio, Stereo, and Compact Disc: Description and Operation

Base or premium specification audio Systems are available and switches on the steering wheel provide for remote operation in each case. The radio and electrically operated aerial are also common to both systems

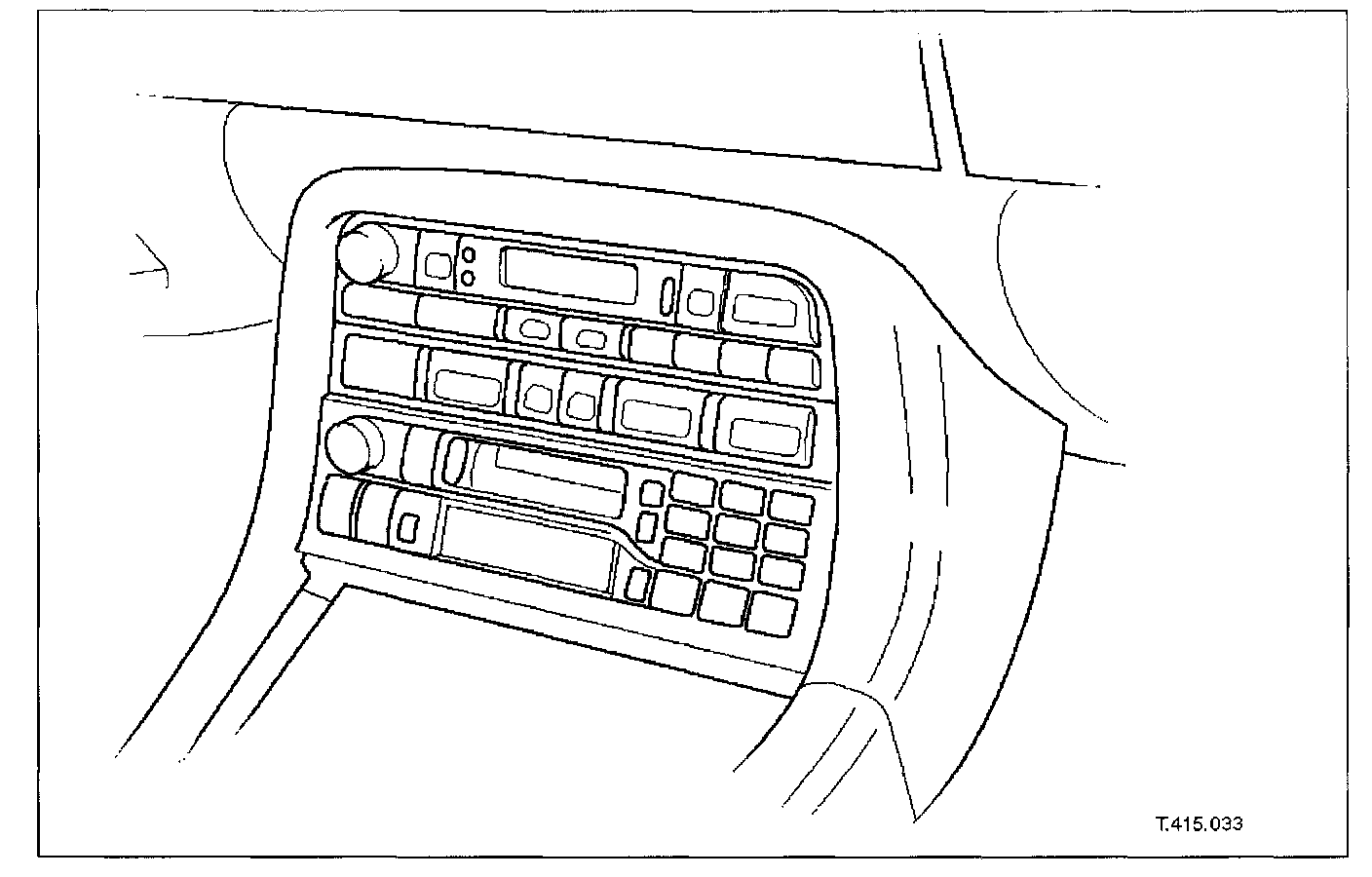

An identical audio unit is installed in both Systems. On initial installation this is matched to the appropriate system by selecting the STD or PRM switch position on the underside of the unit chassis.

Telephone controls incorporated in the audio unit facilitate installation of a GSM hands-free telephone system available as an option.

Base audio system
The base system audio unit incorporates integral message display and Phone Ready controls for installation of a GSM hands-free telephone system. A CD autochanger is installed in the trunk and six speakers are located two at each side of the facia and one in each door and rear quarter.

Premium audio system
As in the base system, the audio unit incorporates integral message display and 'Phone Ready' controls, and a CD autochanger is installed in the trunk. The premium audio system also includes an amplifier unit installed in the trunk a sub-woofer speaker on the rear parcel shelf (a sub-woofer in each rear quarter on convertible models), two mid-range speakers in each door, a mid-range speaker in each rear quarter and a tweeter at each side of the facia.

Navigation system interface
An optional integrated navigation system supplied with the vehicle, or as a service fit accessory, interfaces with either of the above systems to provide control of voice guidance volume. All other navigation system functions are controlled from a separate display/controls panel installed in the facia above the audio unit.
