Navigation Display: Service and Repair

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

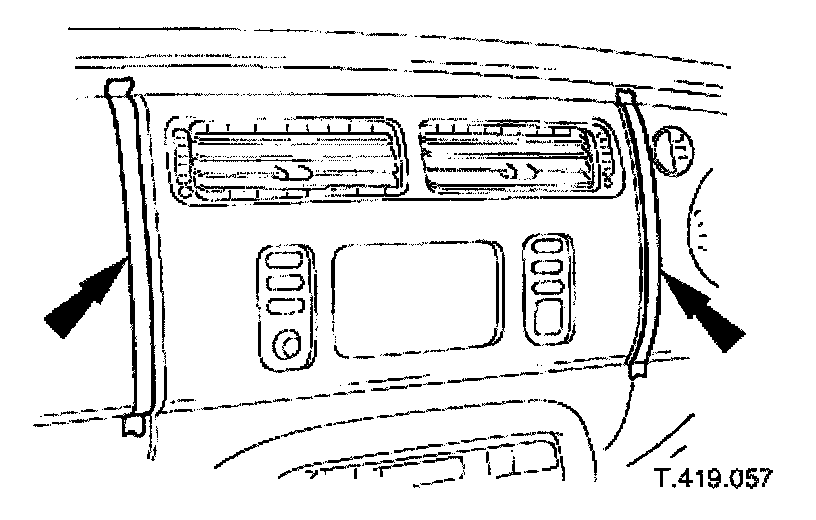

2. Position protective tape along adjacent veneer edges.

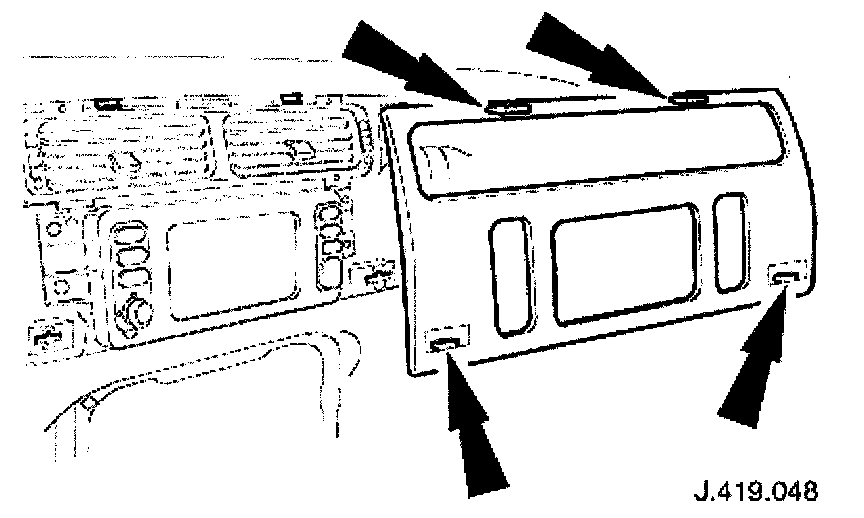

3. Commencing at bottom, use a thin plastic blade to release four center veneer clips.

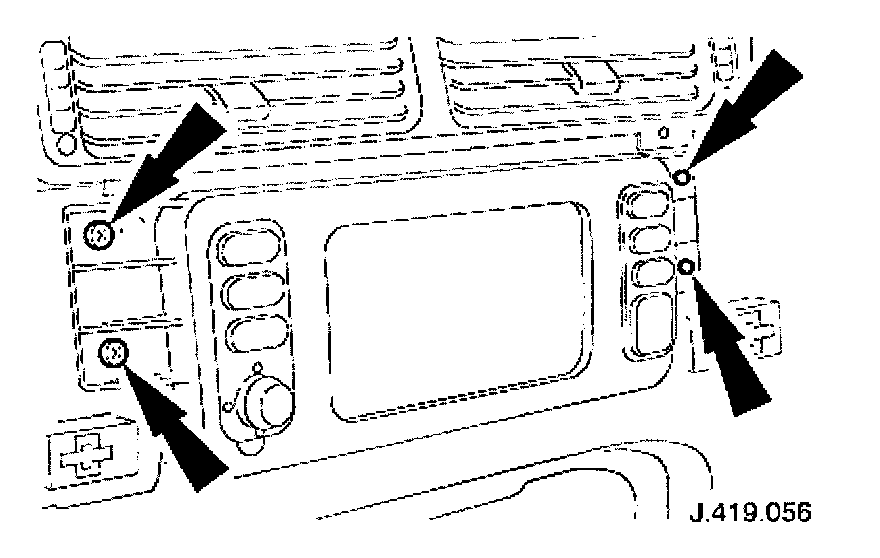

4. Remove the four display and controls panel to facia screws.





5. Remove panel.
Partially withdraw panel for access.

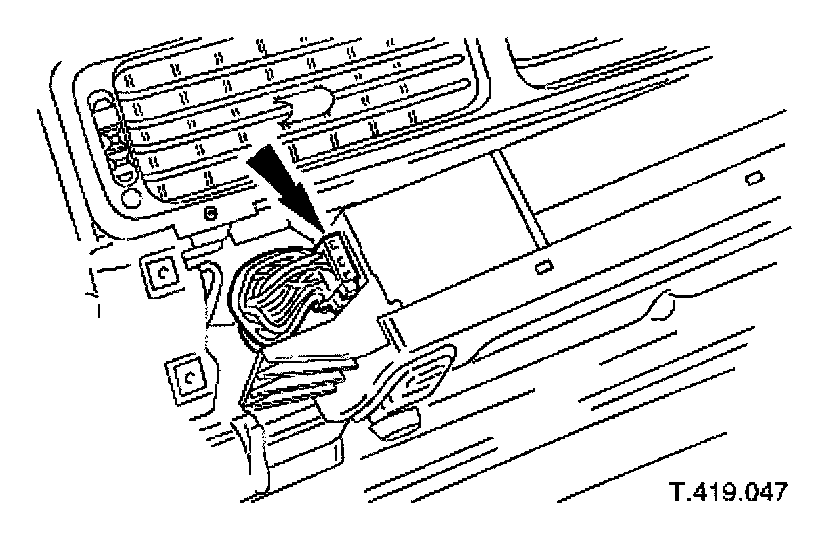

Depressing tangs, disconnect harness connectors.
Remove panel from facia.


Installation





1. Position panel at facia and connect harness connectors.





2. Fully seat panel in facia and install screws.





3. Position and fully seat veneer panel ensuring all securing clips are engaged.
4. Remove protective tape from adjacent veneers.
5. Connect ground cable to battery terminal and install battery cover. See Battery Reconnection Procedure. Service and Repair
