Antenna Motor: Service and Repair

Removal

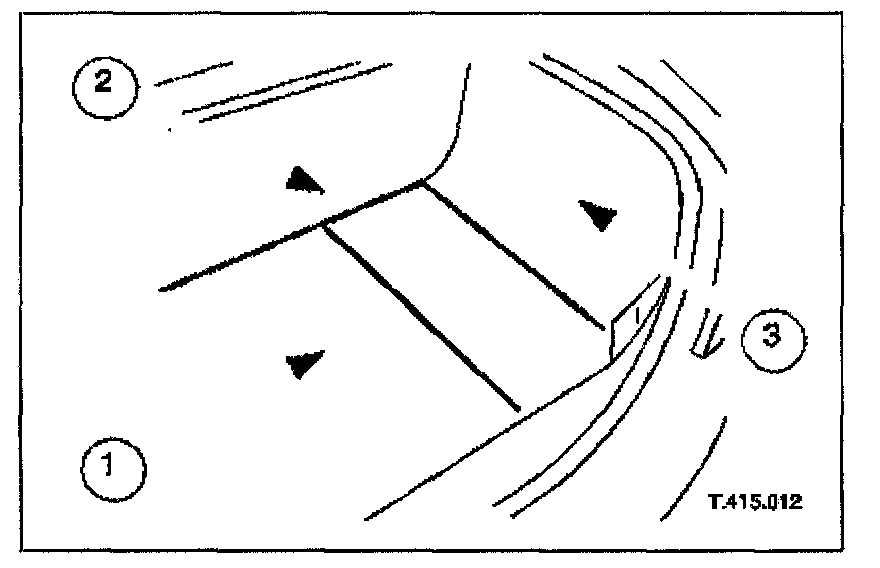

1. Remove the carpet and trim panels from the luggage compartment.
1. Remove the carpet.
2. Remove the front liner.
3. Remove the liner from the right hand side.

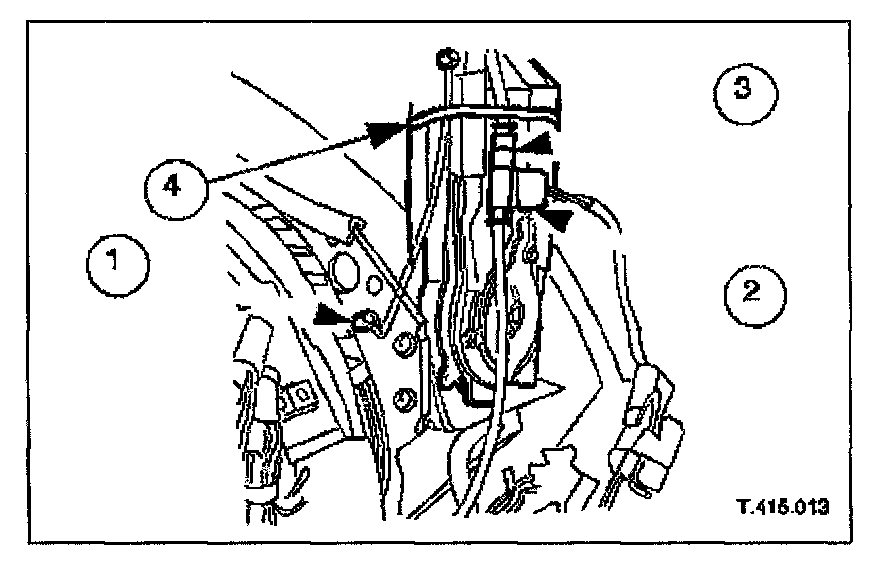

2. Disconnect the electrical connections from the antenna.
1. Remove the bolt which secures the ground lead to the vehicle body. Disconnect and remove the lead.
2. Disconnect the multi-plug from the motor.
3. Disconnect the antenna lead.
4. Remove the tie-strap which secures the harness to the antenna body.





3. Remove the antenna.
1. Remove the two bolts which secure the antenna mounting bracket to the vehicle body.
2. Reposition the drain tube of the antenna, through the body grommet in the luggage compartment floor.
3. Remove the antenna from through the body grommet.
4. Remove the drain tube from the antenna.


Installation
1. Installation is the reverse of removal. Lubricate the vehicle body grommets with soap solution or rubber lubricant.
