Antenna Mast: Service and Repair

Removal

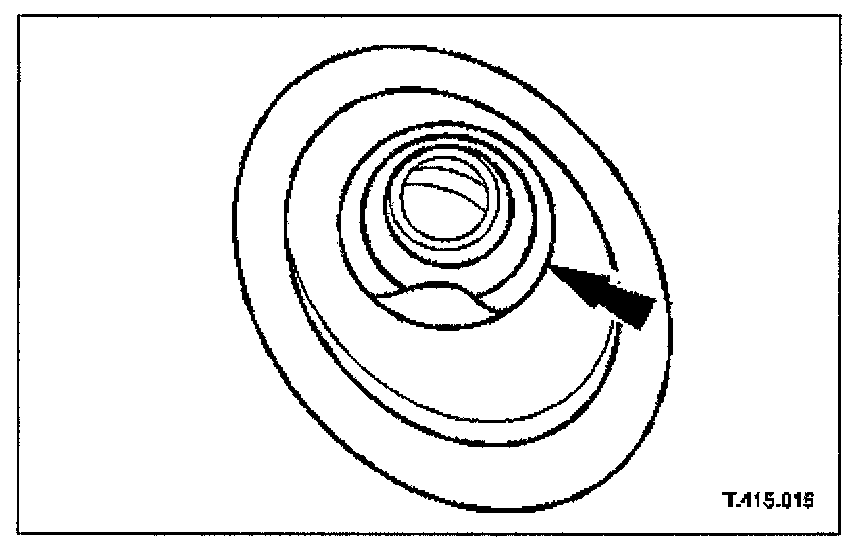

1. Loosen the mast retaining nut.
2. Remove the mast.
Switch ON the ignition and the radio.
Allow the antenna to fully extend.
Remove the mast, noting the position of the teeth on the cable - towards the side of the vehicle.
Switch OFF the ignition.

Installation
1. Installation is the reverse of removal.
