PDU-PC Version 3 (JTP628/1)
The new PDU-PC software has been developed to operate with the new Windows 95 installation on the Dealer Training Multi-Media PC. It is required when downloading traces and screen prints from PDU software JTP626 and JTP627. This software looks and behaves very differently from version 2. It will not support downloads from earlier PDU software including the 5819 XK8 Misfire Detection which are compatible with PDU Capture version 2.INSTALLATION
To install the new software on to the PC insert the CD into the top CD drive. Select the My Computer icon, select the (D:) from the drives available. From the list of file names, double click on Install.bat. Follow the on-screen instruction from this point.
USING PDU-PC VERSION 3
Selecting PDU-PC version 3 on the PC will cause the "Main Window" screen to appear. Note: Should a message appear "Unable to open Database" then a copy of the application may already be running in minimized mode. To open this move the cursor to the bottom of the screen, a bar will appear displaying all of the open applications, click on PDU-PC version 3. Selecting any of the print functions on the PDU will cause the screen to appear instructing connection to the PC. As soon as the connection is made the PDU will transfer the required data to the PC. It is no longer necessary to select a download command on the PC.
If the data transfer fails then the following should be checked.
1. Ensure PC is switched ON
2. Ensure PDU-PC Version 3 is running.
3. Ensure the download cable is correctly connected.
NOTE:
Printing from the PDU should not be attempted while the PC is being used to run a multimedia training course. The training software takes control of all of the PCs resources and will not allow the PDU to successfully complete the download process.
MAIN WINDOW
Buttons
Help - This provides access to on line help
Save - This saves the current data to PDU-PC's own data depository. All data is normally stored within a secure depository controlled by the application. Access to the depository is not available from outside PDU-PC Version 3.
Print All - This allows the current data to be printed.
Send - Will be used on later releases to enable the transfer of data directly back to Jaguar (not used on this release)
Export - This allows the current data to be saved outside of the depository with a file name of the users choice. (See Save As screen).
Old Data - This opens a new screen called the Data Manager, this will provide a list of all of the data in the depository (See Data Manager screen).
Send Queue - Not used on this release.
Configure - This opens the configuration screen, enabling the dealer details to be updated. (See Configure Jaguar PDU-PC screen).
Print Selection - This opens a screen enabling selected pages of the current data to be printed. (See Print Selection screen).
Check Boxes
Two check boxes exist to enable the basic PC functions to be automated, reducing the level of user intervention.
Auto Print - When this is selected all data sent from the PDU to the PC will automatically be printed. In most cases no user input is required at the PC.
Auto Save - When this is selected all data sent from the PDU will be saved within the data depository, again in most cases no user input will be required at the PC.
Information Panels
Main Panel - The main information panel displays the first page of the currently selected data.
Summary Panel - This displays some key information about the current data, typical information would be type of data and VIN Number.
Comment Panel - This allows the input or editing of any comments regarding the current data.
Up to 255 characters of comments may be added to each set of data.
SAVE AS SCREEN
The Save As screen allows the user to save the currently selected data as a file outside of PDU-PC's data depository. This should be used if the data is to be used as part of another document.
This is a standard Windows 95 Save As screen allowing the user to select the directory, filename and file type in which the data is to be saved.
DMA MANAGER
The data manager screen provides a list of the data stored in the data depository, allowing the user to open, export or delete old data.
Note:
S93 Data must not be deleted from the depository.
Buttons
Help - Provides help specific to the Data Manager screen
Open - Opens the selected data in the Main Window. To select data move the cursor top the required item on the list and click the left mouse button.
Export - Allows the selected data to be saved outside of the depository with a file name of the users choice. (See Save As screen).
Close - Closes the Data Manger screen and returns control to the Main Window.
Show This Week
Show This Month
Show All - Only one of these 3 buttons may be selected. These allow filtering of the list so that only the data added to the depository this week, this month or all of the data may be viewed.
Information Panel
The main panel displays a list of the data held in the depository showing the following detail:
Unique ID - A unique identifier allocated by the PDU-PC application.
Queue Status - Not used on this release.
VIN Number - The VIN of the vehicle on which the data was gathered.
Data Type - Indication of the type of data e.g. Bitmap, JVA, text etc.
Date Created - The date when the data was added to the depository.
Date Queued - Not used on this release
Technicians Comment - The user entered comment relating to the data.
By highlighting the header bar of any of the columns the data will be resorted in ascending order of the column selected. Each of the data columns is also re-sizeable by pointing the cursor to the edge of the header bar, holding down the left mouse button and dragging the column to the required size.
Pointing the cursor at any item in the list and double clicking on the left mouse button will cause the data to be opened.
CONFIGURE JAGUAR PDU-PC

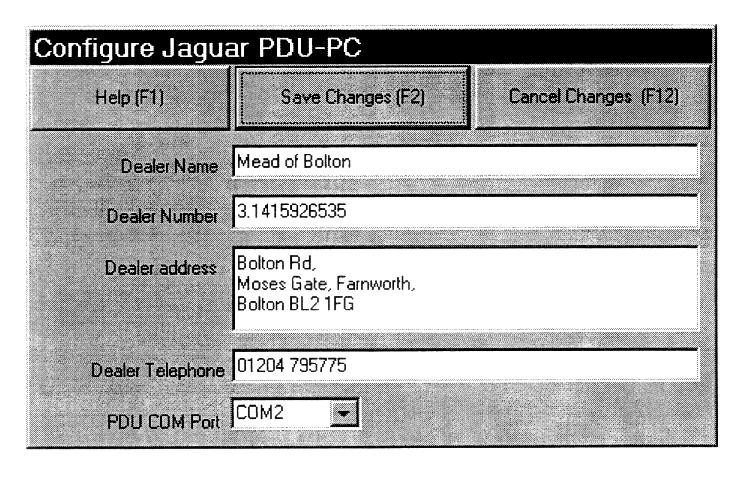

The Configure Jaguar PDU-PC screen enables the dealer name, dealer address, telephone number, CI code and the PDU communications port to be updated.
Buttons
Help - Provides help specific to this screen
Save Changes - Saves any changes made to the configuration data
Cancel Changes - Returns control to the Main Window without saving any of the changes made.
Information Panels
All of the Information panels are updatable. The PDU Com Port is the communications channel that PDU uses to talk to the PC. This should normally be COM2 (the modem uses COM1).
PRINT SELECTION

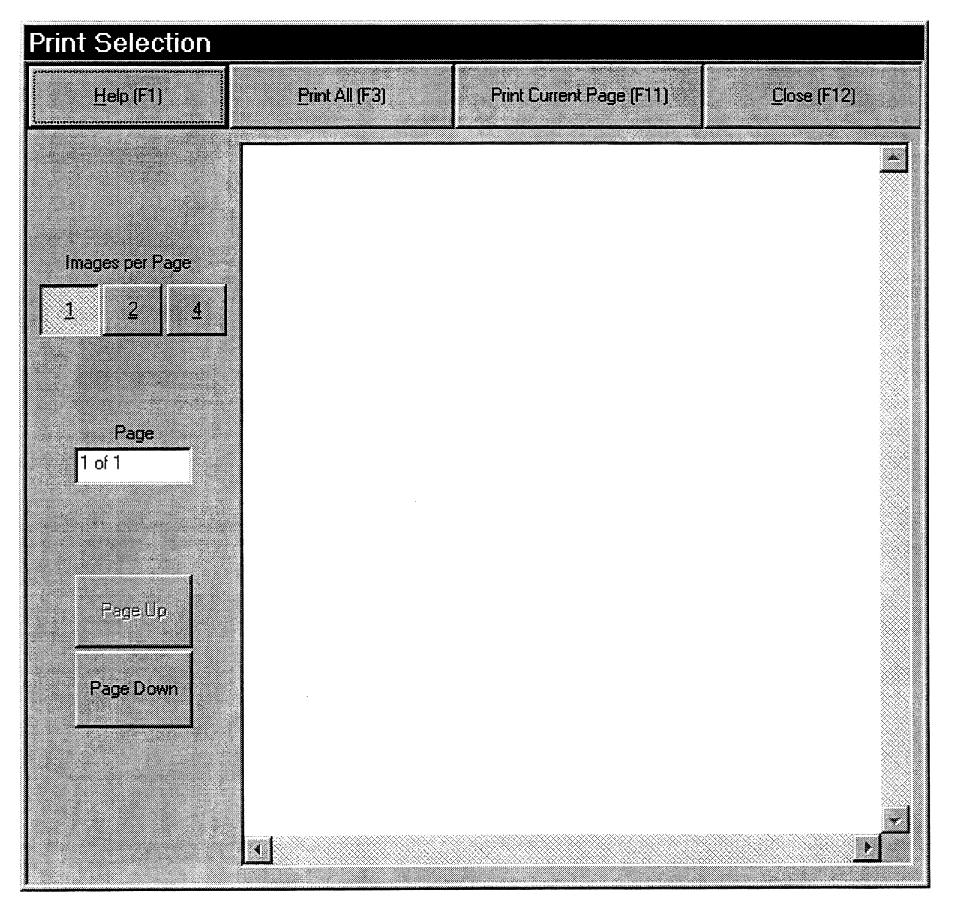

The Print Selection screen enables selected pages of the current data to be printed.
Buttons
Help - Provides help information specific to this screen.
Print All - Prints all of the current data.
Print Current Page - Prints the displayed page of the current data.
Close - Exits this screen and returns control to the Main Window.
Images Per Page - Enables the number of images on each page to be modified. Only one of the three options can be selected at any time.
Page Up - Moves to the previous page.
Page Down - Moves to the next page.
Information Panel
The main panel displays the page that will be printed if the Print Current Page button is pressed.
OBDII REPORT (JTP627/1)
The OBDII report software has been modified to enable the data to be transferred directly to the Multimedia PC and then printed in the form of an 593 report.
When OBDII report is selected the PDU will provide instructions to connect to the vehicle. As much information as possible will be gathered directly from the vehicle. Any data that cannot be gathered will be requested by the PDU to be input manually via the on screen keypad. When all of the information has been gathered the PDU will provide a menu screen.
One of the options will be TRANSMIT DATA, after selecting this the PDU will provide instructions to disconnect the PDU from the vehicle and connect to the multimedia PC. Once connected to the PC, with the PC switched on, the only further operation is to press the TICK icon on the PDU to confirm connection. The PDU will transmit all of the OB DII data to the PC. When the data has been transferred the PC will provide a pop-up screen as shown below.
Buttons
Help - Provides help specific to this screen
Quit - Exits the screen without saving the S93 OBDII Report
Finished - Exits the screen and saves the S93 OBDII report in the data depository.
Note:
This button will not activate until a MIL Condition has been selected.
Display Panels
VIN Number - Displays the VIN relevant to the data transmitted by the PDU.
Note:
This panel can not be edited.
Complaint Condition - Allows any comments to be added relevant to the report. This field is limited to 255 characters.
Check Boxes
MIL Condition - One of four check boxes must be selected, these indicate the reason for the S93 OBDII report.
