LH Side

Removal
1. Open hood and fit cover to adjacent front fender.

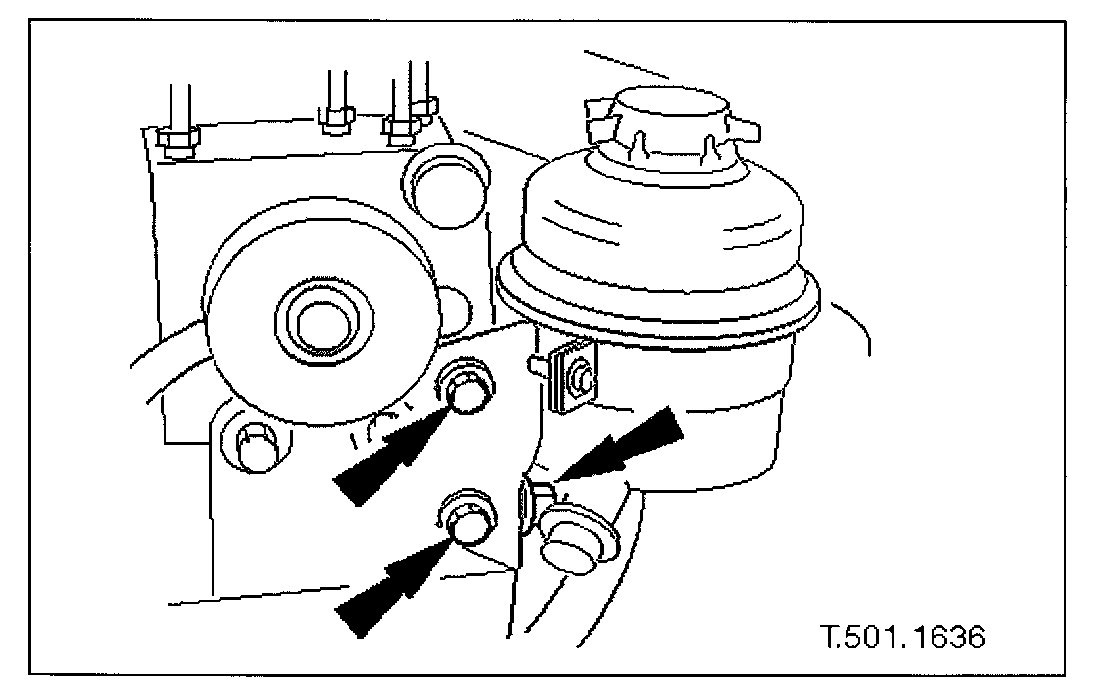

2. Slacken power steering reservoir mounting bracket securing nuts, remove nuts together with rubber washers and position reservoir for access.





3. Disconnect harness multiplug from headlamp levelling actuator.

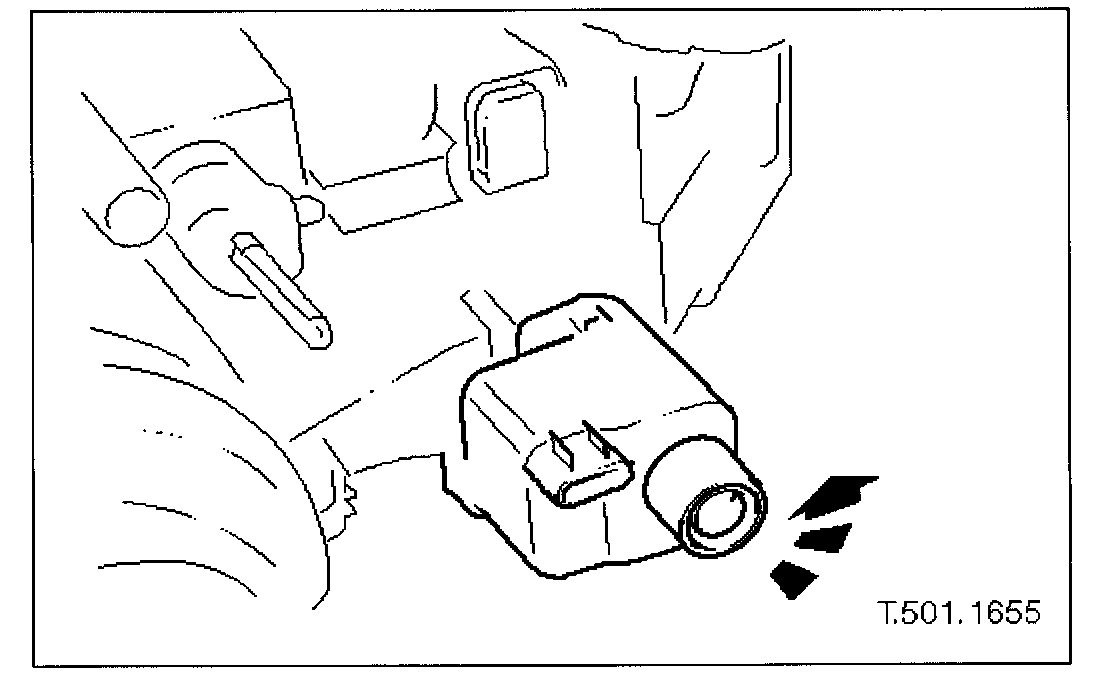

4. Rotate actuator 1/4 turn, tilt forward and downward and withdraw assembly from headlamp.


Installation
1. With forward end tilted downward, position actuator assembly on headlamp.
2. Align actuator with headlamp and rotate it 1/4 turn to engage and fully seat.
3. Connect harness multiplug to actuator.
4. Position power steering reservoir, install rubber washers and securing nuts.
5. Carry out headlamp beam alignment to the appropriate alignment equipment instructions.
6. Remove front fender cover and close hood.
