Centre Console Switch Module Illumination Bulb

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove J gate surround. Service and Repair
3. Remove center console for access. Service and Repair
4. Remove radio console for access. Service and Repair





5. Disconnect switch module harness multiplug, release module end locators and lightly press module out of console.

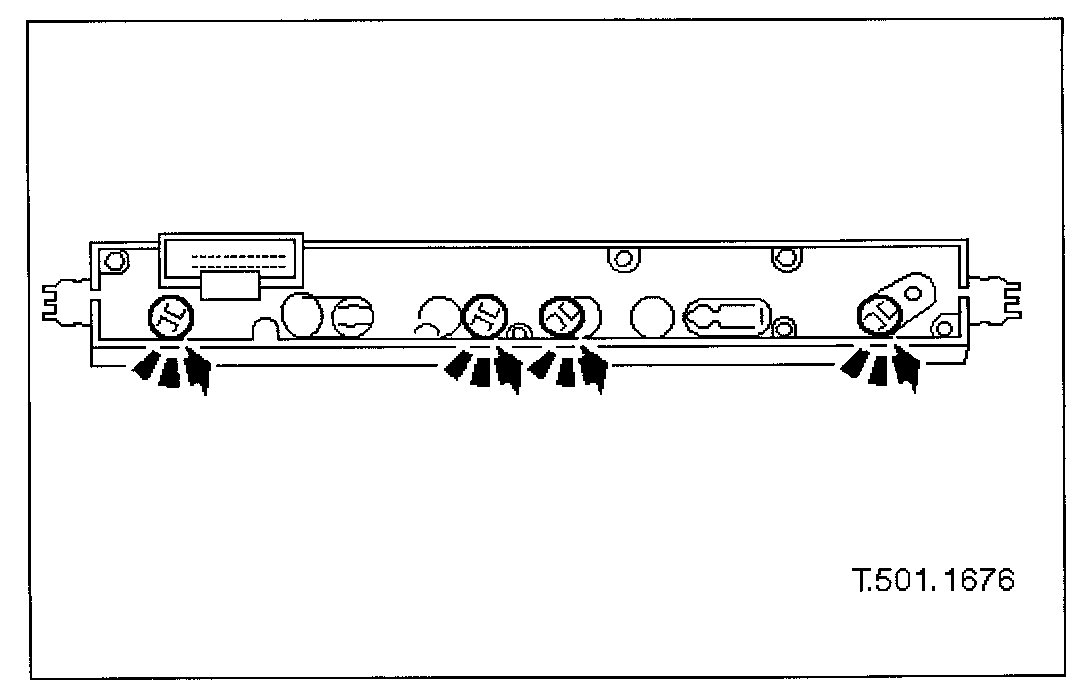

6. Rotate bulb holder 1/4 turn counter-clockwise and remove from module.
7. Remove bulb from holder.


Installation
1. Install bulb in holder.
2. Install bulb and holder in module and rotate 1/4 turn clockwise to fully seat.
3. Install switch module in console ensuring that end locators are fully seated.
4. Connect switch module harness multiplug.
5. Install radio console.
6. Install center console.
7. Install J gate surround.
8. Connect ground cable to battery terminal and install battery cover. See Battery Reconnection Procedure. Service and Repair
