Fore and Aft Adjustment Motor/Potentiometer Assy.

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove front seat for access. Service and Repair

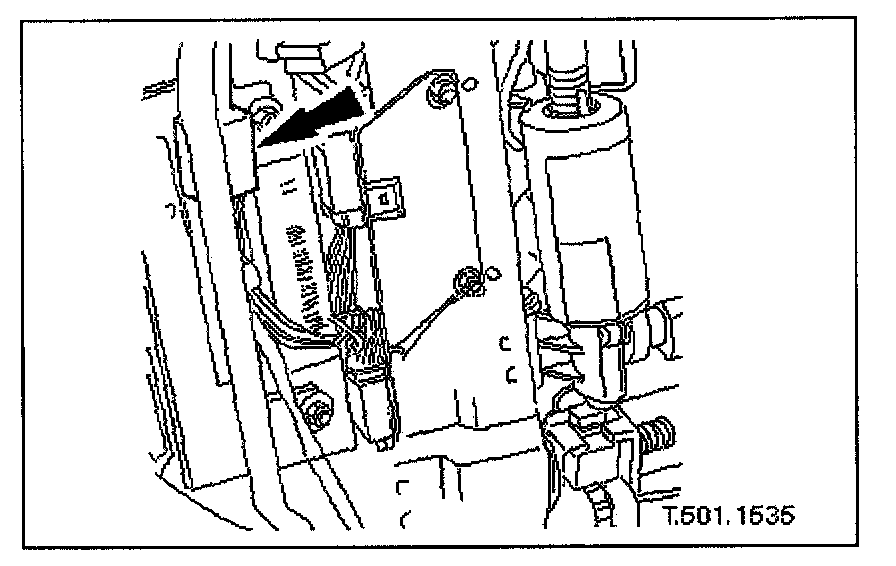

3. Release seat motor harness multiplug from mounting bracket and disconnect multiplug.

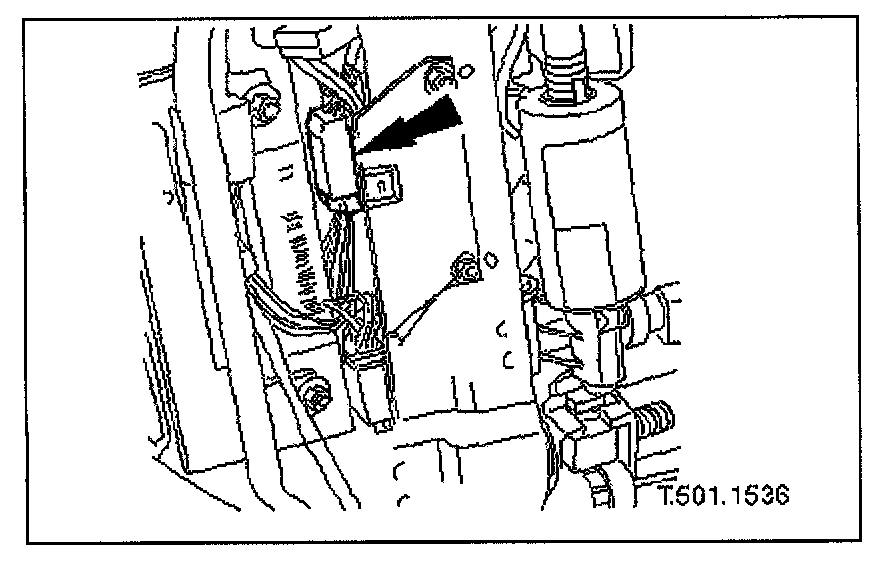

4. Release seat cushion riser motor harness multiplug from mounting bracket and disconnect multiplug.

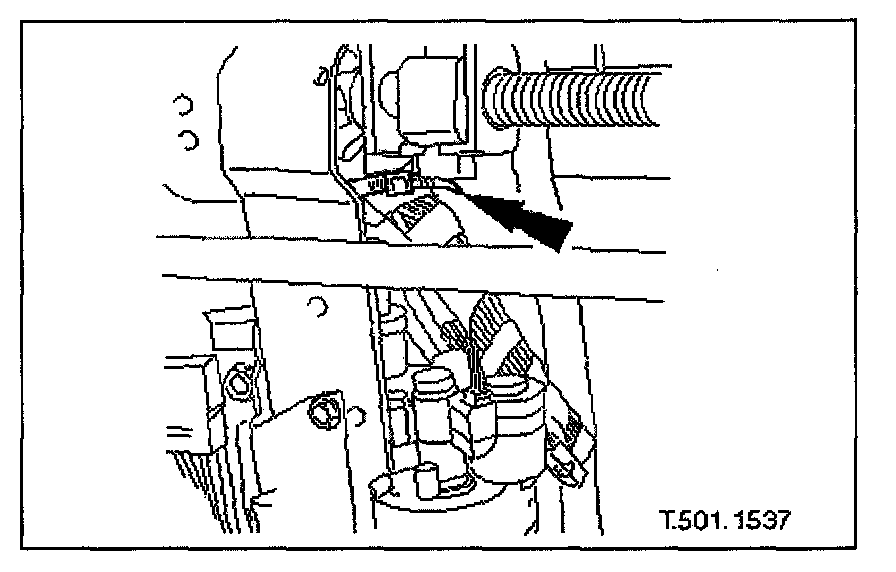

5. Remove and discard tiestrap securing seat harness and position harness for access.

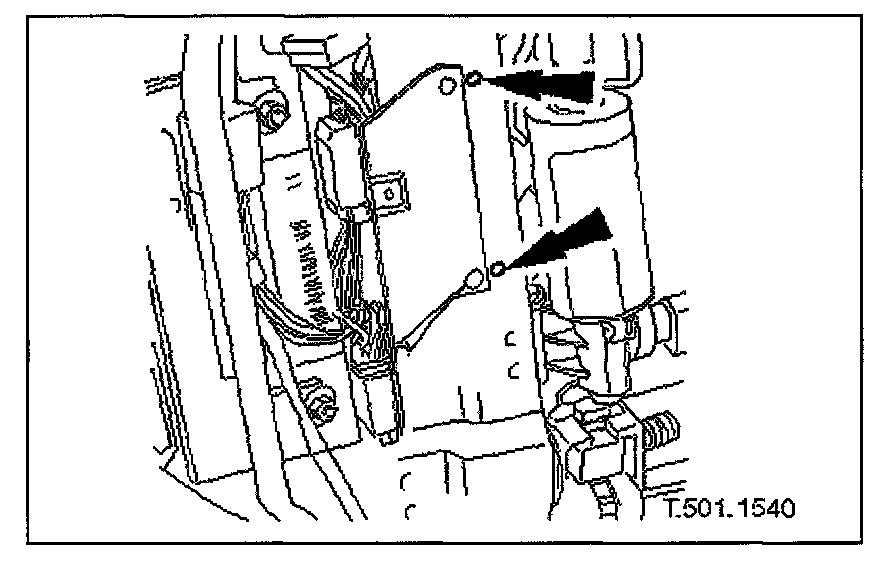

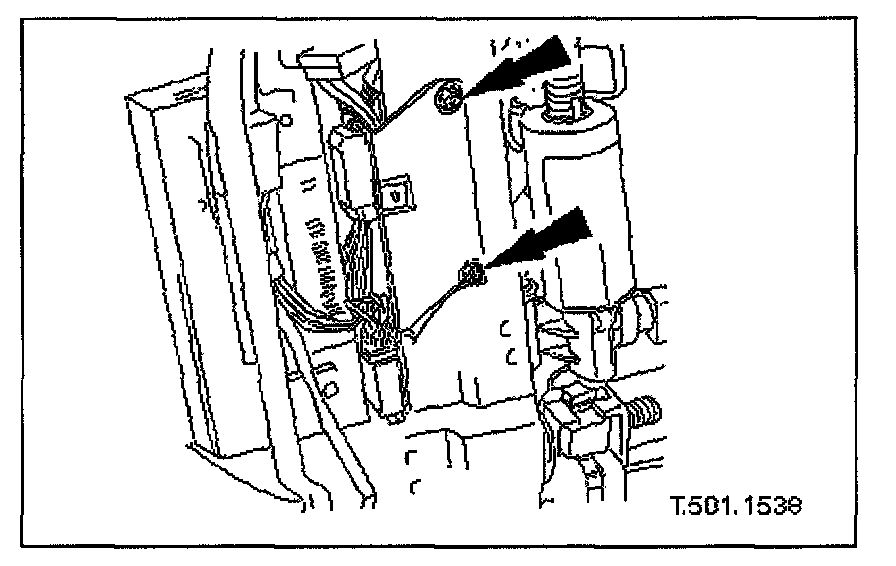

6. Slacken and remove bolts securing seat motor to frame.

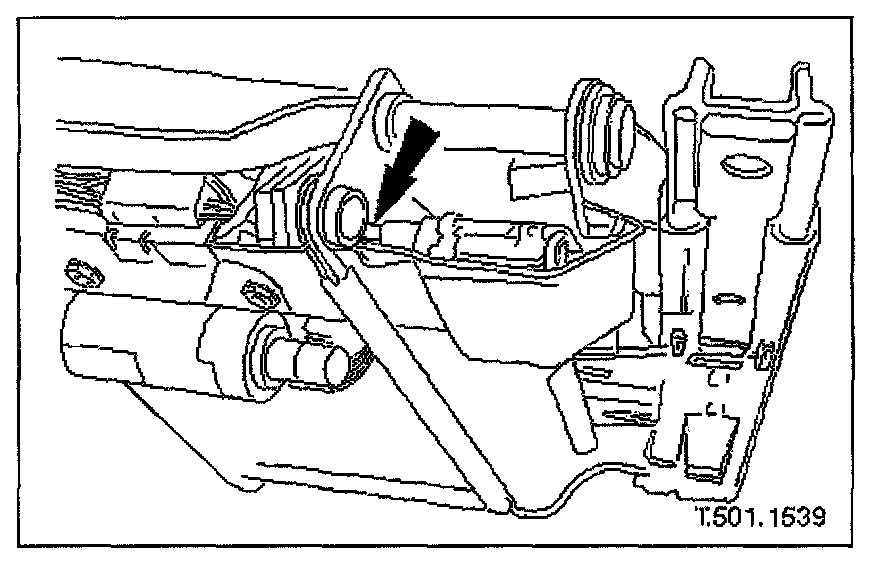

7. Position motor from frame for access and withdraw drive cable from one side.

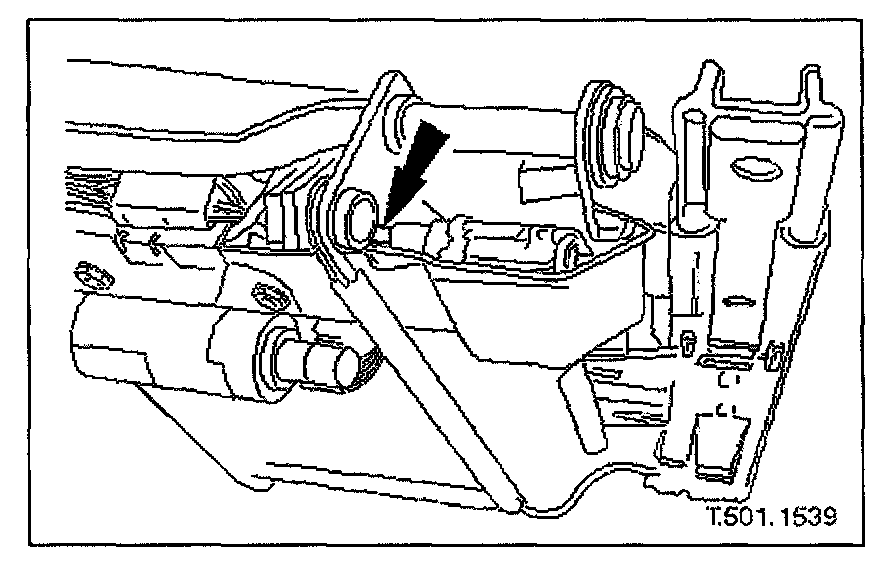

8. Release motor from remaining drive cable and remove motor from seat.


Installation
1. Noting drive cable positions, align motor drives to permit engagement.





2. Position motor to seat and engage drive cables.





3. Finally position motor on seat frame ensuring locating tangs are fully seated.

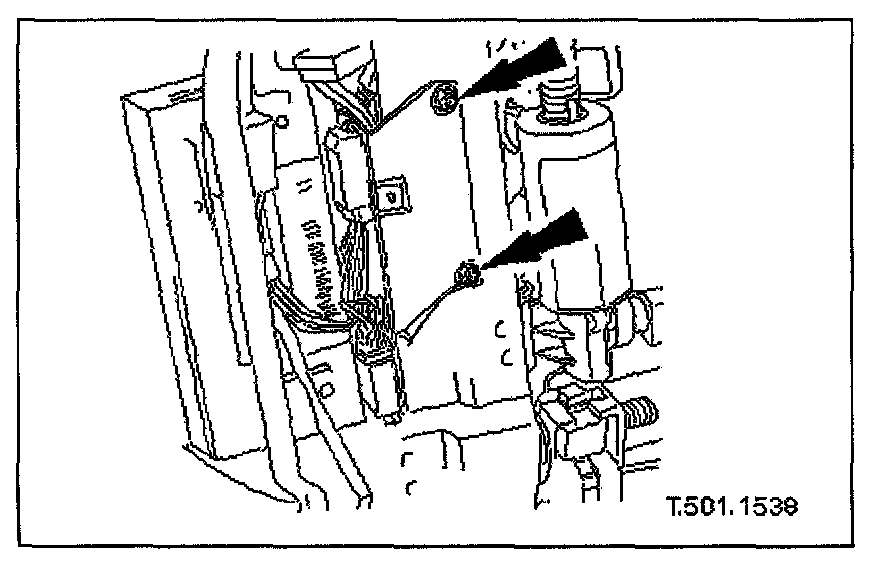

4. Fit and fully tighten seat motor to frame securing bolts.





5. Position seat harness, connect seat motor harness multiplug and fully seat multiplug on mounting bracket.





6. Connect seat cushion riser motor multiplug and fully seat multiplug on mounting bracket.





7. Position seat harness and secure to mounting bracket with clip.
8. Fit front seat to vehicle.
9. Connect ground cable to battery terminal and fit battery cover. Refer to Battery Reconnection Procedure. Service and Repair
