Procedures

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove front door casing.
3. Remove water shedder carefully guiding harness through penetration, and place adhesive face down on clean polythene sheet.
4. Position PVC weathershield for access.
5. Remove front door module.
6. Remove front door glass lift motor and regulator assembly. Refer to Window Regulator, Service and Repair. Procedures
7. Supporting glass, remove tape securing it to top of door for motor removal.

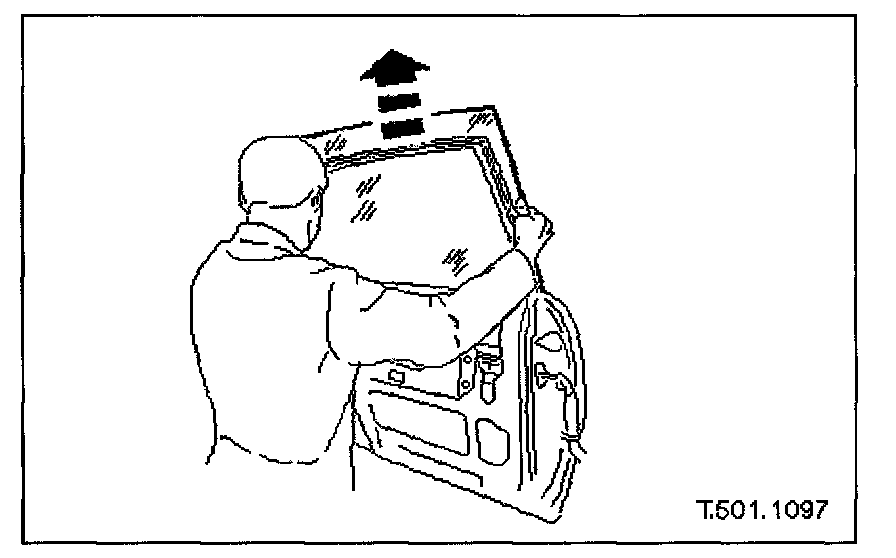

8. Withdraw glass upwards through aperture and out via outboard side of frame.


Installation
1. Position glass in frame aperture.





2. Locate leading edge of glass in seal of front channel.

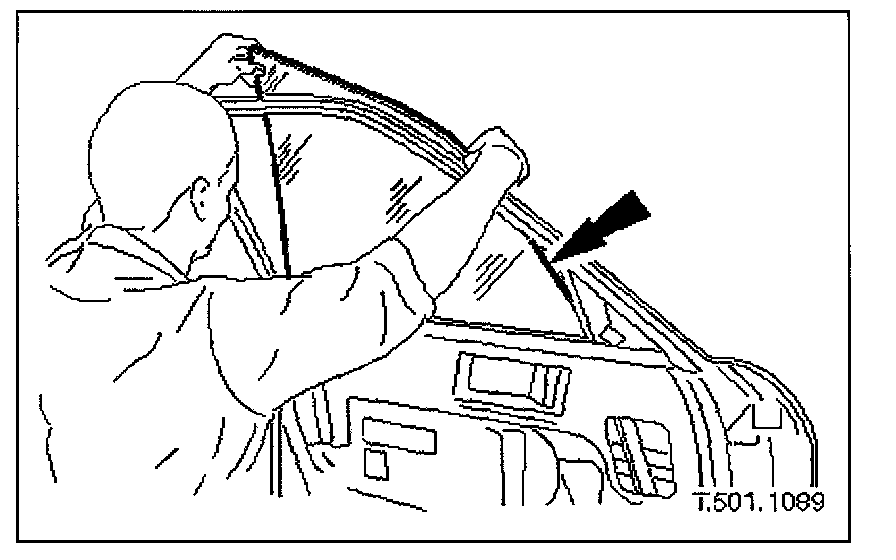

3. Carefully slide glass into position, ensuring that seals are not deformed into channels.
4. Fully raise glass and using linen tape, secure to top of door frame.
5. Fit door glass lift motor. Refer to Window Regulator, Service and Repair. Procedures
6. Fit door module.
7. Reposition PVC inner weathershield.
8. Position water shedder and carefully pass harness multiplugs through penetration.
9. Ensuring door mating surfaces are clean and dry, firmly seat water shedder.
10. Fit door casing.
11. Connect ground cable to battery terminal and fit cover to battery. Service and Repair
