Driveline Angle Inspection

Driveline Angle Inspection
Alignment Tool 205-535

1. Raise and support the vehicle.
2. Remove the exhaust system.

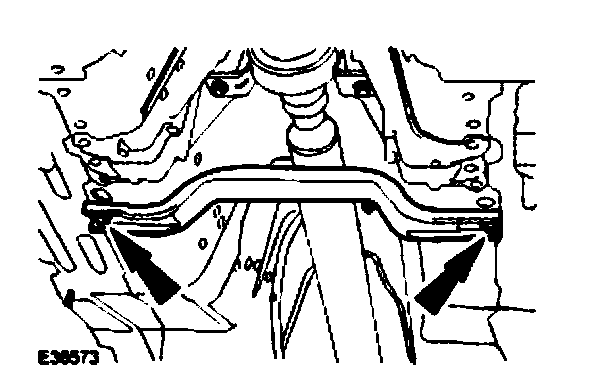

3. Remove the support bracket.

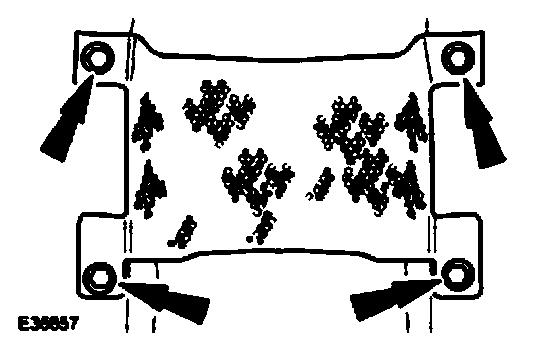

4. Remove the driveshaft heat shield.

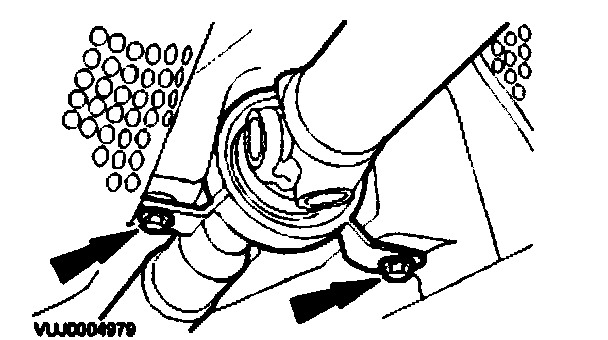

5. Loosen the driveshaft centre bearing retaining bolts two complete turns.





6. CAUTION: Make sure the driveshaft centre bearing is correctly aligned to the driveshaft. Failure to follow these instructions may result in damage to the vehicle.

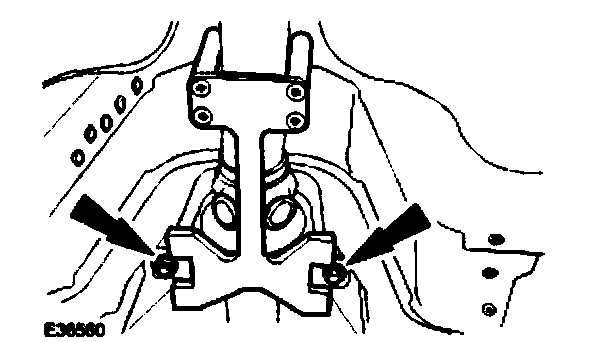

Using the special tool, align the driveshaft centre bearing.
^ Tighten to 40 Nm.

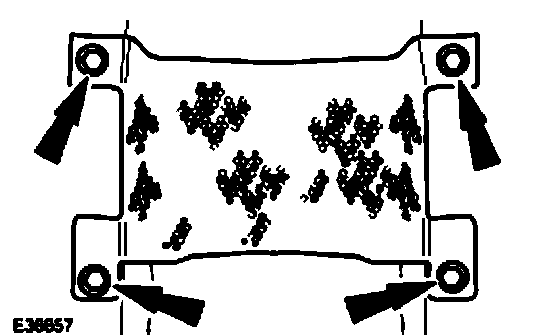

7. Install the driveshaft heat shield retaining bolts.
^ Tighten to 7 Nm.





8. Install the support bracket.
^ Tighten to 9 Nm.

9. Install the exhaust system.
