Connector Identification

The following connectors are the common harness-to-harness connectors used throughout the vehicle.

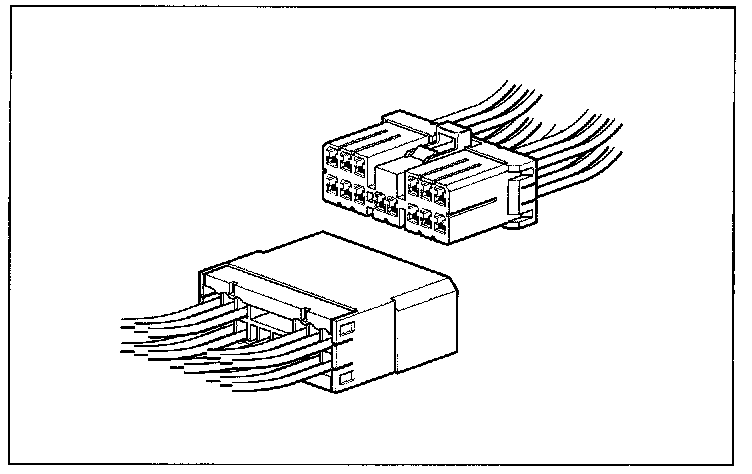

Multilock 040:

Low current (harness and 'direct' connection connector).

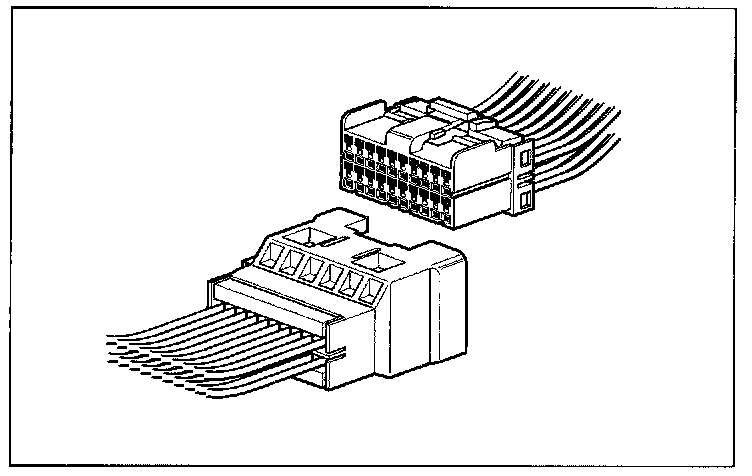

Multilock 070:

High current (harness and 'direct' connection connector).

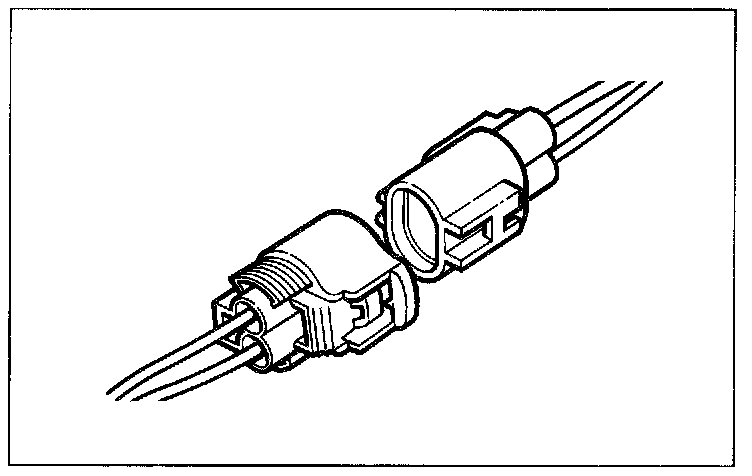

Econoseal III LC:

Low current sealed connector.

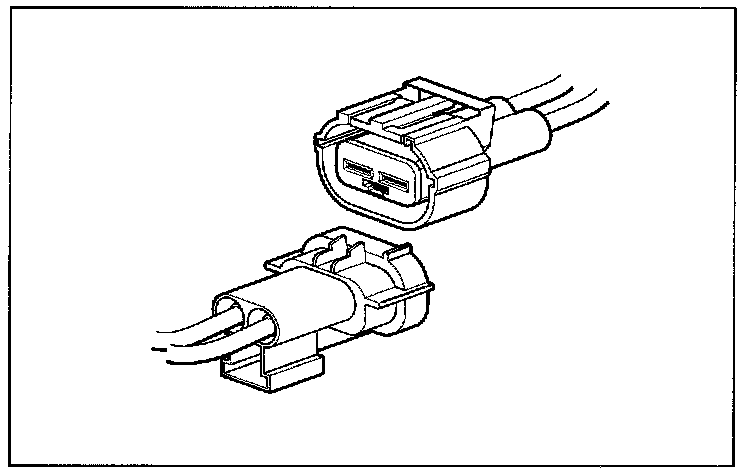

Econoseal III HC:

High current sealed connector.

Ford Card:

Used for SRS only.

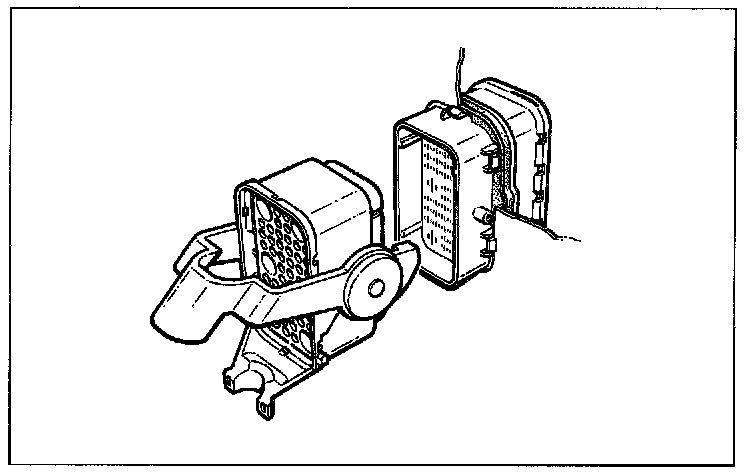

Through Panel:

54-way connector.

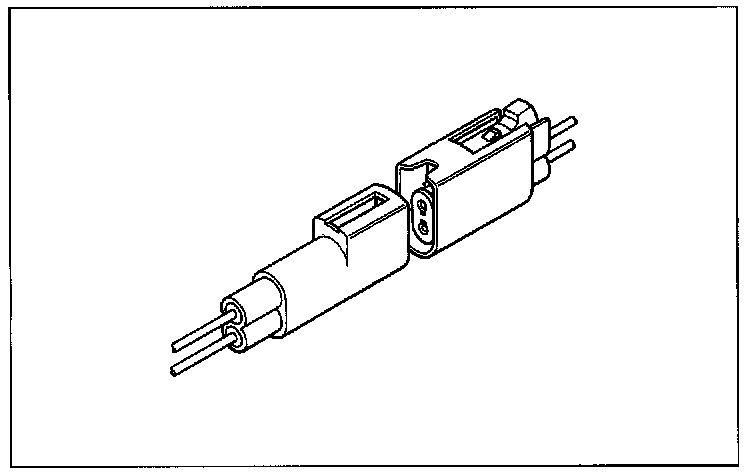

Augut 1.6 2-Way Connector:

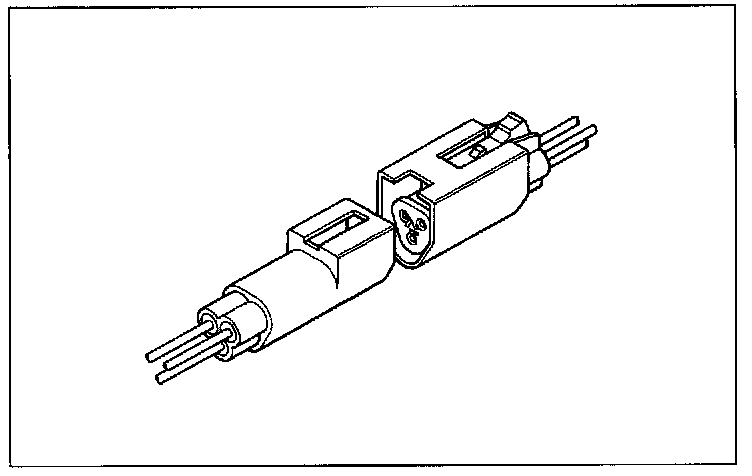

Augut 1.6 3-Way Connector:

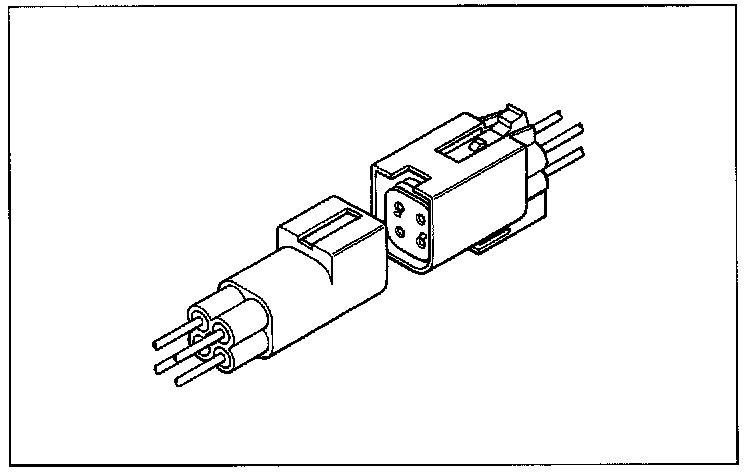

Augut 1.6 4-Way Connector:

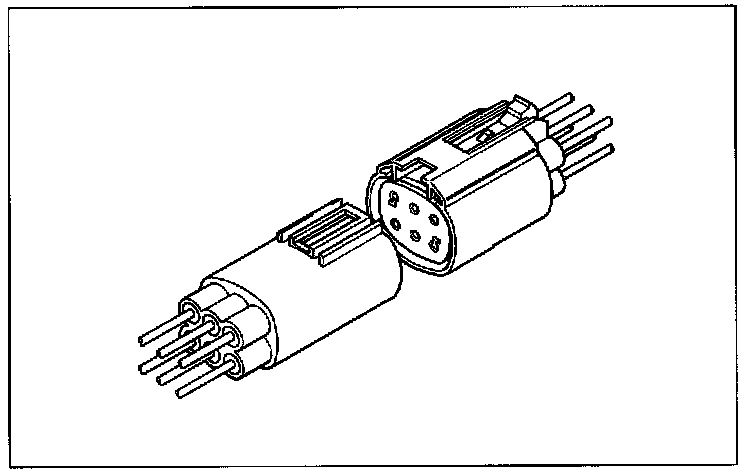

Augut 1.6 6-Way Connector:

Augut 1.6 8-Way Connector:
