Brake Light Switch: Service and Repair

Removal
1. Remove driver seat for access.
2. Raise hand lever fully.
3. Remove trim from hand lever.

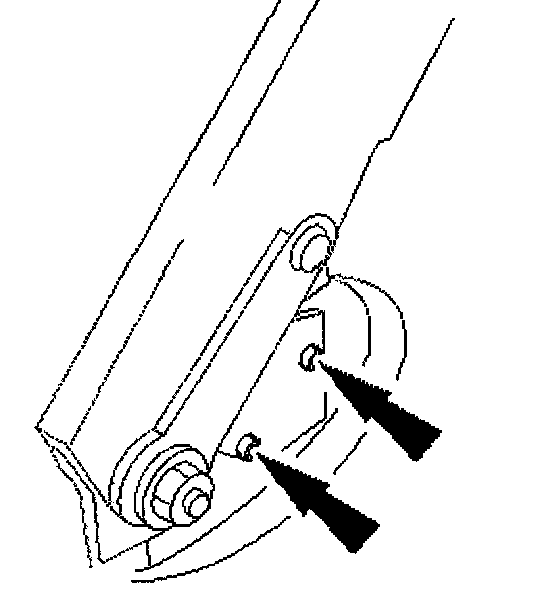

4. Remove screws securing switch to hand lever.

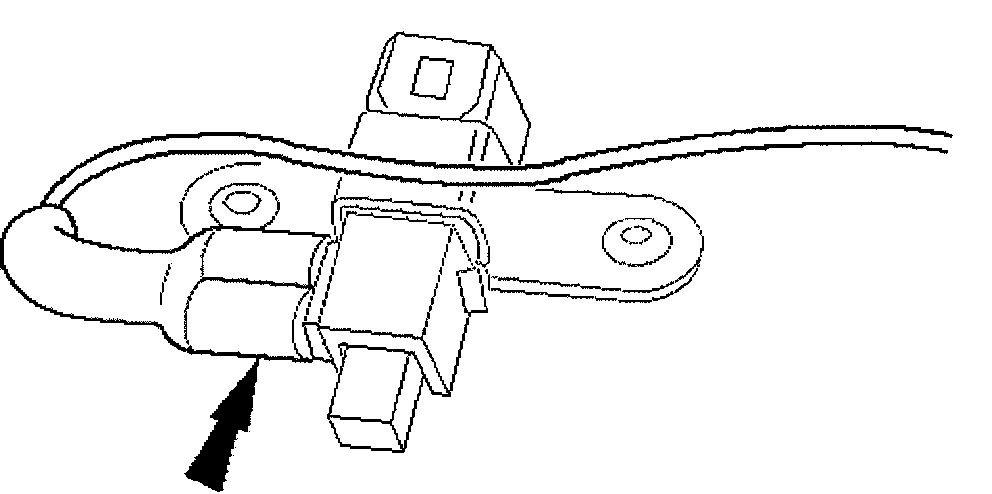

5. Disconnect electrical connector from switch.


Installation





1. Disconnect electrical connector from switch.





2. Install switch to hand lever.
Install and tighten screws to 3 Nm.
3. Install trim to hand lever.
4. Lower hand lever, checking for freedom of movement.
5. Fit driver seat.
