Fog/Driving Lamp: Service and Repair

Fog Lamp Assembly

Removal
1. Remove undertray for access.

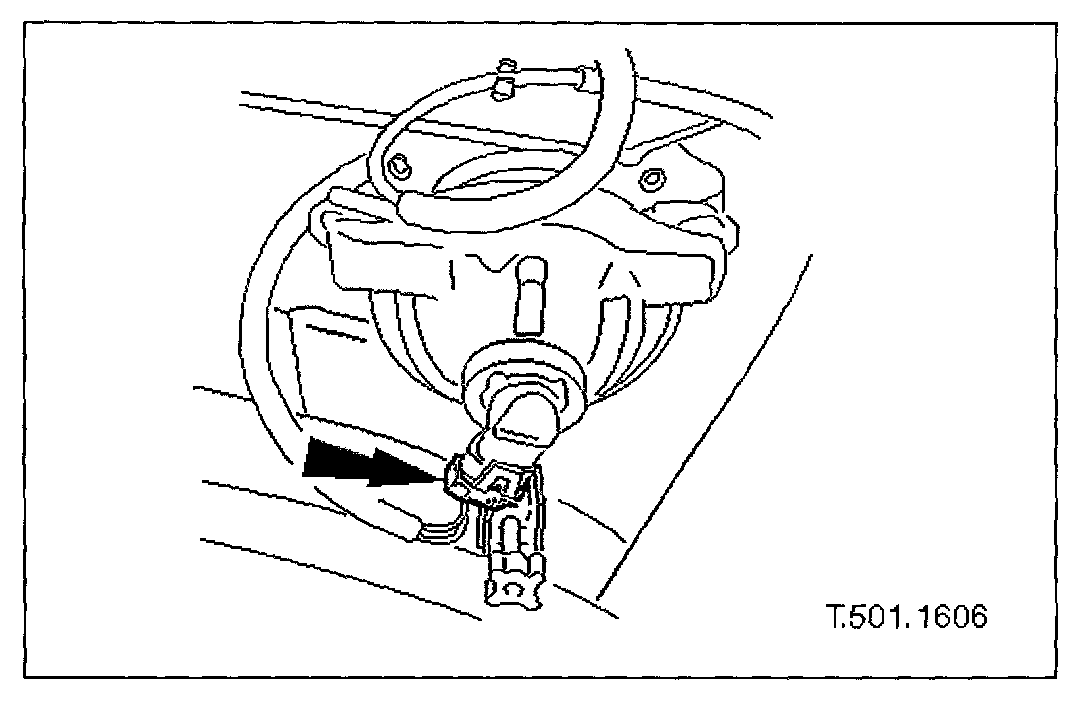

2. Disconnect fog lamp harness multiplug.

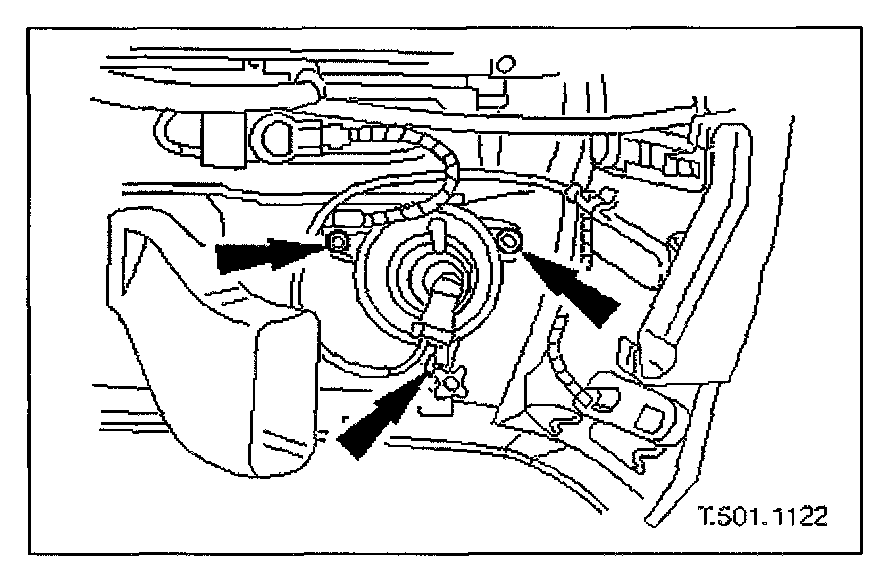

3. Remove the three fog lamp securing bolts.
4. Withdraw fog lamp assembly from rear of bumper.

Installation


1. NOTE: Vertical alignment of the fog lamp is pre-set. No attempt must be made to alter this setting.


Position fog lamp assembly on bumper.

2. Install fog lamp securing bolts.
3. Connect fog lamp harness multiplug.
4. Install undertray.
